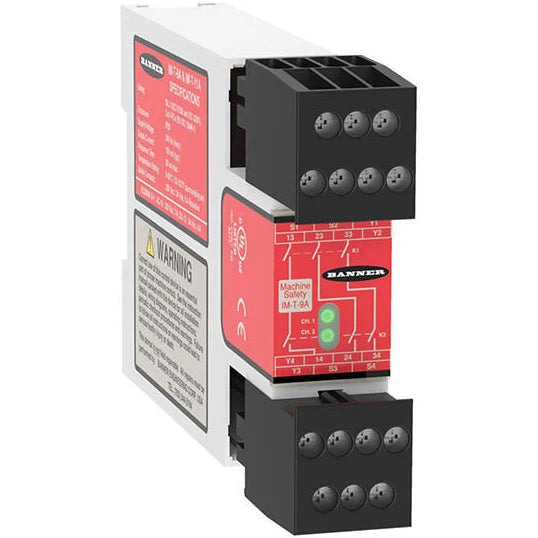

Banner IM-T-9A Safety Relay Module – 24VDC, 3 NO Outputs, EDM Support
- Regular price
- $167.00
- Sale price
- $167.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IM-T-9A
Description
The Banner Engineering IM-T-9A is a compact 24 VDC safety relay module engineered for interfacing safety light curtains and other safety control devices with external machine-safety circuits. Featuring dual/single-channel safety inputs, redundant force-guided outputs, and EDM (External Device Monitoring) compatibility, the IM-T-9A provides dependable, standards-compliant safety control for industrial automation environments.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Banner Engineering |
| Part Number | IM-T-9A |
| Category | Safety Components |
| Subcategory | Safety Relay / Interface Module |
| Relay Type | Safety Controller / Light Curtain Relay |
| Supply Voltage | 24 VDC |
| Safety Inputs | 1 Dual or Single Channel |
| Output Configuration | 3 NO (6A) |
| Contact Material | AgNi, 5-micron gold-plated |
| Input Operation | Simultaneous or Concurrent |
| EDM Support | Yes (Y1-Y2, Y3-Y4 NC circuits) |
| Terminal Type | Removable terminal blocks |
| Power Consumption | 50 mA |
| Electrical Life | 1,000,000 cycles @ 450 VA |
| Mechanical Life | 20 million operations |
| IP Rating | IP20 |
| NEMA Rating | NEMA 1 |
| Max Operating Temp | 50°C |
| Dimensions (H×W×D) | 84 × 22.5 × 118 mm |
Information About IM-T-9A
The Banner IM-T-9A Interface Module operates from a 24 VDC supply and provides isolated redundant safety outputs, making it ideal for extending or adapting the outputs of devices such as safety light curtains, safety relays, and other safeguarding modules. This module ensures that safety outputs from the primary safety device are followed reliably, with a typical switching delay of less than 20 milliseconds. The unit features three normally open (NO) 6-amp safety-rated outputs, using mechanically-linked (force-guided) AgNi gold-plated contacts, ensuring fail-safe operation and long service life. It supports EDM monitoring via dedicated series NC contacts (Y1–Y2 and Y3–Y4), meeting control-reliability requirements under OSHA/ANSI and ISO 13849-1 Category 3/4 applications.
Key Features:
- Designed for safety light curtains and safety control interfacing
- 24 VDC supply voltage
- Dual- or single-channel safety input capability
- Three redundant NO safety outputs (6A each)
- Force-guided contacts for fail-safe operation
- Supports External Device Monitoring (EDM)
- Fast switching response (<20 ms)
- Removable terminal blocks for easy wiring
- Slim 22.5 mm housing fits compact control panels
- IP20 enclosure, NEMA 1 rated
- Long mechanical and electrical life (20M mechanical / 1M electrical cycles)
With a narrow 22.5 mm footprint and removable terminal blocks, the IM-T-9A is easy to integrate into compact control panels. Rated for up to 1 million electrical cycles and 20 million mechanical operations, this relay delivers long-term reliability in high-demand safety applications.
