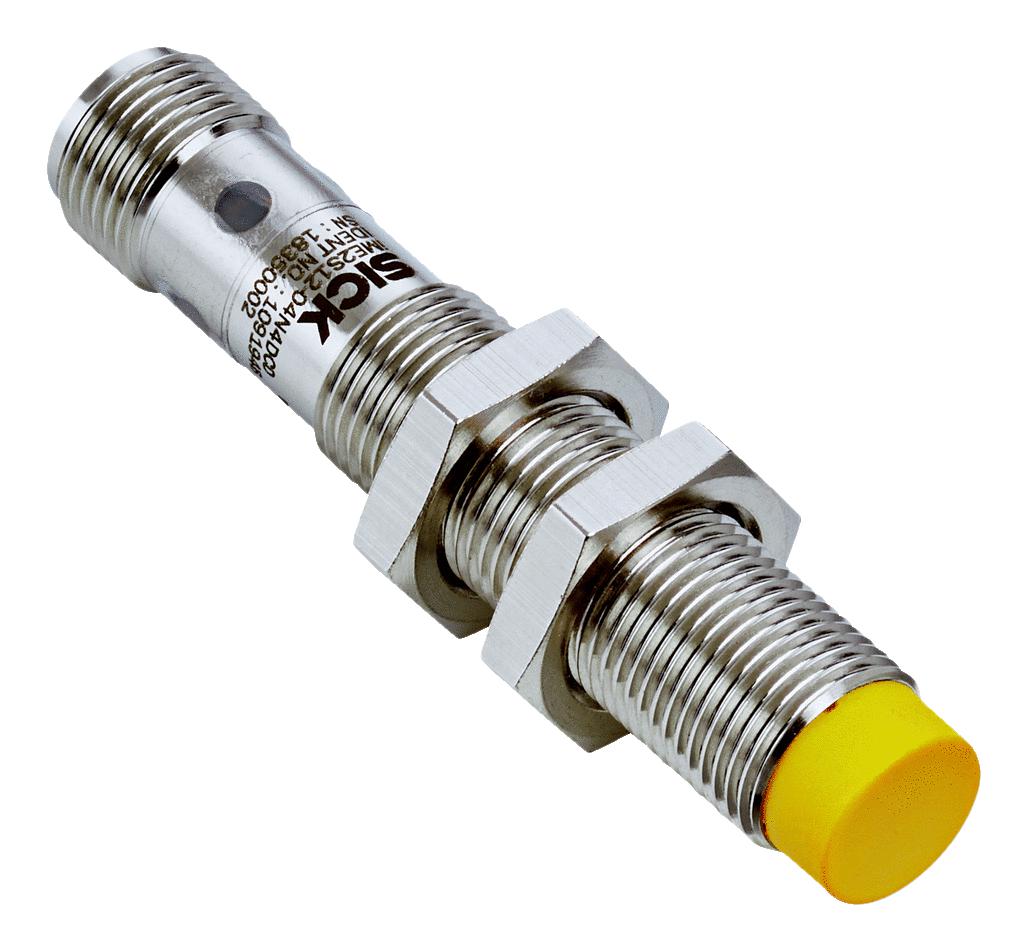

Product Description P/N: IME2S12-04N4DC0
Description
The IME2S12-04N4DC0 is a cylindrical inductive safety sensor with a 4 mm sensing range, designed for non-contact detection and machine safety integration. Its rugged M12 nickel-plated brass housing and semiconductor OSSD output make it ideal for reliable safety monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Sick |
| Category |
Electrical Products
|
| Part Number | IME2S12-04N4DC0 |
| Subcategory | Safety Switch |
| Sensing Range (Sn) | 4 mm |
| Safe Switch-On Distance (Sao) | 3.2 mm |
| Safe Switch-Off Distance (Sar) | 6 mm |
| Housing Design | Cylindrical |
| Housing Diameter | M12 |
| Installation Type | Non-flush |
| Actuation Frequency | ≤ 100 Hz |
| Active Sensor Surfaces | 1 |
| Output Type | Semiconductor (OSSD), 2 channels |
| Power Supply | 24 V DC (19.2 to 28.8 V DC) |
| Power Consumption | ≤ 20 mA |
| Response Time / Enable Time | ≤ 1 ms |
| Risk Time | ≤ 20 ms |
| Switch-On Time | ≤ 1 s |
| Enclosure Rating | IP67 (IEC 60529) |
| Ambient Operating Temperature | –25 °C to +70 °C |
| Material | Nickel-plated brass |
| Weight | 0.20 lbs |
Information About IME2S12-04N4DC0
The IME2S12-04N4DC0 is a compact, inductive non-contact safety switch engineered to detect metallic targets without physical contact. It features a 4 mm sensing range (Sn) with defined safe switch-on (Sao) and switch-off (Sar) distances to comply with safety requirements. Housed in a M12 cylindrical nickel-plated brass body, this sensor is optimized for non-flush installation and offers an OSSD-type semiconductor output with two independent safe channels. The device operates on 24 V DC, supports up to 100 Hz switching frequency, and meets IP67 protection for use in demanding industrial environments. Fast response and enable times ensure it is suitable for real-time safety-critical applications.
Key Features:
- Inductive Sensing Principle: Enables non-contact metallic target detection, ideal for use in applications requiring high durability and long service life without mechanical wear.
- Defined Safety Switching Distances: Safe switch-on distance (Sao) of 3.2 mm and switch-off distance (Sar) of 6 mm ensure consistent and validated operation under ISO 13849.
- Dual OSSD Outputs: Provides two safe outputs for integration into safety relays or controllers, delivering reliable fault detection and redundancy.
- Fast Reaction Timing: Features a response time and enable time of ≤ 1 ms, and a risk time of ≤ 20 ms, supporting rapid machine stopping in hazardous conditions.
- Compact M12 Cylindrical Housing: Constructed of nickel-plated brass, this durable housing allows easy integration in space-limited applications and supports non-flush mounting for improved range.
- Robust Electrical Design: Operates on a 24 V DC supply (range 19.2–28.8 V), with rated insulation of 28.8 V and impulse withstand capability of 1,500 V, making it resilient in fluctuating conditions.
- Low Power Consumption: Consumes ≤ 20 mA during operation, supporting energy efficiency in large-scale systems.
- Protection and Compliance: Rated IP67 for water and dust protection and designed according to IEC 61140 Class III, ensuring safe operation in harsh environments.
- High Switching Frequency: Supports up to 100 Hz actuation, making it effective for fast-moving machinery or automated components.
- Quick Startup: Switch-on time of ≤ 1 s allows the sensor to become operational shortly after power-up, minimizing system delays.
The IME2S12-04N4DC0 ensures reliable, safe, and contactless detection in industrial safety systems, providing dual-channel outputs and rapid response in a robust, compact design.
