INI-VGX | Gamewell-FCI Transponder Voice Gateway for E3 Broadband Audio Systems
- Regular price
- $1,745.00
- Sale price
- $1,745.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: INI-VGX
Description

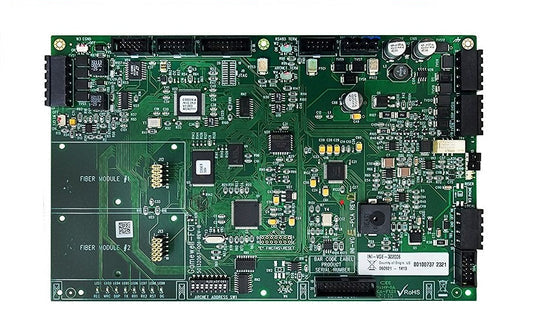

The Gamewell-FCI INI-VGX is a transponder voice gateway designed for the E3 Broadband Audio Evacuation System and optional for the E3 Series® emergency evacuation platform. It provides command and control for up to four AM-50 Series amplifiers, delivering up to 150 watts of audio output at 25 VRMS or 70.7 VRMS with advanced digital signal processing.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Alarm Systems |
| Part Number | INI-VGX |
| Subcategory | Voice Gateway Modules |
| Type | Transponder Voice Gateway |
| System Compatibility | E3 Broadband Audio Evacuation System; optional for E3 Series |
| Amplifier Support | Controls up to 4 AM-50 Series amplifiers (50W each, max 150W output) |
| Audio Output | 25 VRMS or 70.7 VRMS selectable |
| Audio Technology | DSP-based audio compression and filtering |
| Voice Functions | Provides intelligible LIVE voice paging with background noise filtering |
| Communication | Supports unshielded twisted pair (UTP) connections |
| Power Requirements | 24 VDC nominal, supplied by PM-9 / PM-9G Power Supply |
| Supervision | Fully supervised communication and power circuits |
| Installation | Amplifiers mounted within single cabinet |
| Compliance | UL Listed |
| Weight | 1 lb |
Information About INI-VGX
The INI-VGX is a critical component of Gamewell-FCI’s E3 Broadband Audio Evacuation System, delivering advanced command and control capabilities for distributed emergency communications. It manages up to four AM-50 amplifiers, supporting both 25 VRMS and 70.7 VRMS operation, with a maximum combined output of 150 watts. With integrated Digital Signal Processing (DSP), the INI-VGX ensures superior audio clarity by compressing signals, filtering background noise, and enhancing intelligibility for live paging and firefighter communications. Lightweight yet powerful, it provides system designers with flexibility and performance for mission-critical evacuation systems.
Key Features:
- Amplifier command and control: Supports up to four AM-50 Series amplifiers for distributed audio delivery.
- Flexible audio output: Operates at 25 VRMS or 70.7 VRMS, supporting diverse system designs.
- High power capacity: Delivers up to 150 watts of total audio power across connected amplifiers.
- DSP audio technology: Utilizes digital signal processing for clear, intelligible voice communications.
- Noise filtering: Automatically reduces background noise during live paging and firefighter communications.
- Broadband system integration: Serves as a core component of the E3 Broadband Audio Evacuation platform.
- Optional for E3 Series: Enhances emergency evacuation systems with expanded audio capabilities.
- UTP connectivity: Supports unshielded twisted pair wiring for flexible installations.
- Lightweight module: Weighs just 1 lb, simplifying handling and integration.
- Regulatory compliance: UL Listed for use in life safety and mass notification systems.
The INI-VGX delivers the reliability and precision required for high-performance audio control in Gamewell-FCI E3 Series fire alarm and evacuation systems.
