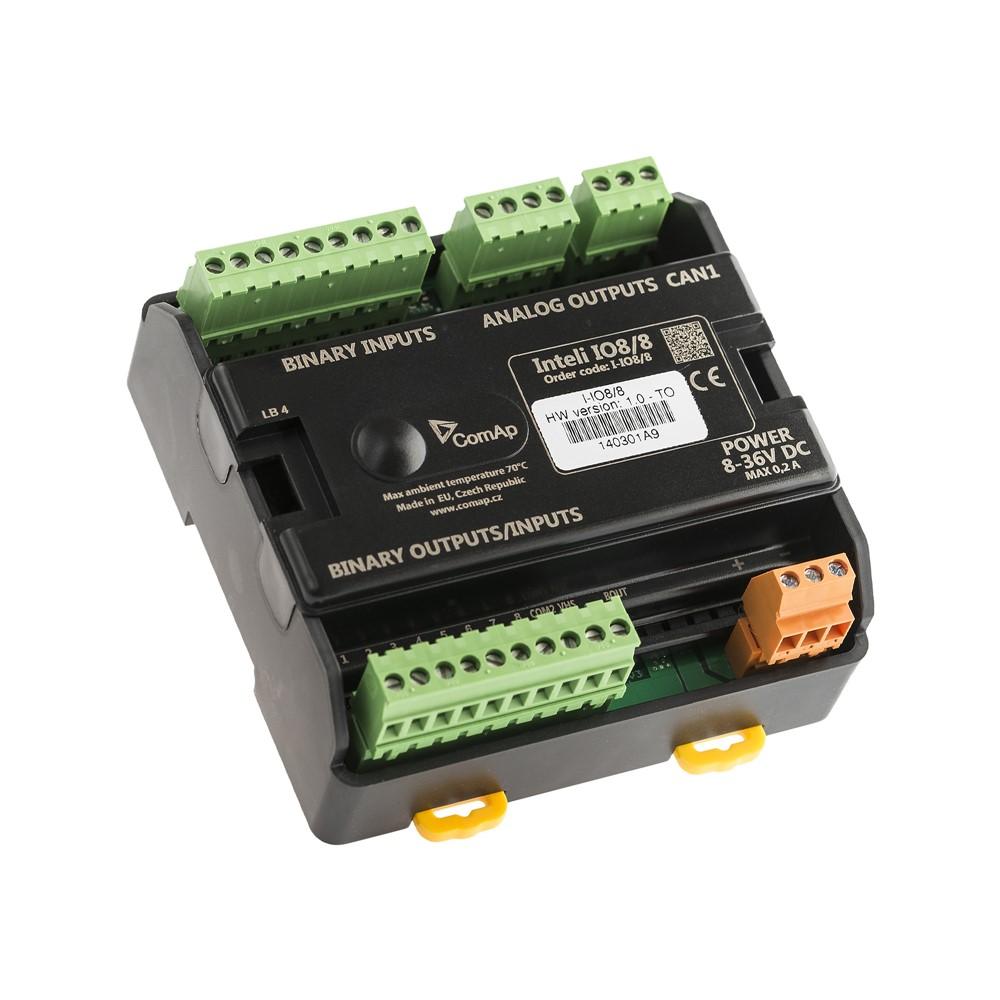

INTELI IO8/8 | ComAp Binary & Analog I/O Expansion Module
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: INTELI IO8/8
Description
The INTELI IO8/8 is an input/output expansion module designed to extend the I/O capacity of ComAp control systems. It features 8 binary inputs, 8 binary outputs, and 2 analog outputs, providing flexible control and monitoring capabilities via CAN bus.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | ComAp |
| Category |
Control & Automation
|
| Part Number | INTELI IO8/8 |
| Subcategory | I/O Expansion Modules |
| Product Type | I/O Expansion Module |
| Binary Inputs | 8 channels, 0–36 V DC, 4400 Ω input resistance |
| Binary Outputs | 8 channels, open collector, max 500 mA |
| Analog Outputs | 2 channels: 0–10 V, 0–20 mA, PWM (5 V level) |
| PWM Frequency | 200–2400 Hz, min pulse step 2 μs |
| Controller Compatibility | InteliGen, InteliLite, InteliMains, InteliNeo |
| CAN Bus | Galvanically isolated, up to 200 m cable |
| Operating Voltage | 8–36 V DC |
| Power Consumption | 35 mA @ 24 V, up to 100 mA @ 8 V |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +80°C |
| Vibration Resistance | 5–25 Hz ±1.6 mm; 25–100 Hz a = 4 g |
| Shock Resistance | a = 200 m/s² |
| Protection Rating | IP20 |
| Weight | 0.40 kg |
Information About INTELI IO8/8
The INTELI IO8/8 is a peripheral I/O extension module compatible with a wide range of ComAp controllers, including InteliGen, InteliMains, InteliLite, and InteliNeo series. Communication with the main controller is established via a galvanically isolated CAN bus, supporting distances up to 200 meters. This module supports both voltage and current analog outputs and offers flexible configuration for input/output logic, making it suitable for diverse automation tasks. It is built to operate reliably in harsh environments with wide temperature tolerance and vibration resistance.
Key Features:
- Binary Inputs: 8 inputs with configurable pull-up or pull-down resistors and 0–36 V DC range.
- Binary Outputs: 8 open collector outputs with high/low side options, max current 500 mA.
- Analog Outputs: 2 outputs supporting voltage (0–10 V), current (0–20 mA), and PWM signals.
- Wide Controller Compatibility: Works with InteliGen, InteliMains, InteliLite, InteliNeo, and InteliDrive series.
- Robust Communication: CAN bus interface (galvanically isolated), up to 200 m cable length.
- Industrial Durability: Operates from −40°C to +70°C with IP20 protection rating.
- Flexible Power Supply: Accepts 8–36 V DC input with power consumption between 35–100 mA.
- PWM Output Option: Adjustable frequency between 200–2400 Hz with high accuracy.
The INTELI IO8/8 delivers the versatility and rugged performance required for modern industrial and power generation control systems.
