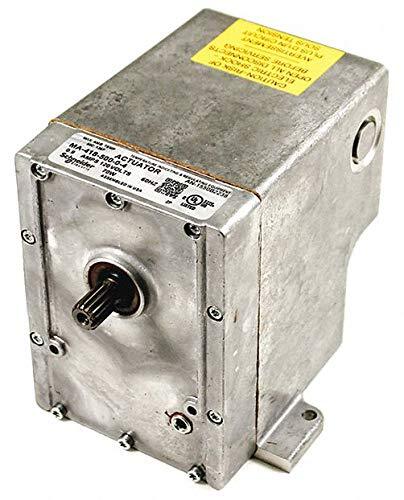

Invensys MA-418-500-0-4 Spring Return HVAC Damper Actuator 120 VAC
- Regular price
- $927.00
- Sale price
- $927.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MA-418-500-0-4
Description
The Invensys MA-418-500-0-4 is a spring-return damper actuator designed for two-position HVAC control. It operates from 120 VAC and provides 60 lb-in of rated torque with an auxiliary switch for compatible damper control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Invensys |
| Category | HVAC |
| Part Number | MA-418-500-0-4 |
| Subcategory | HVAC Actuator |
| Actuator Type | Damper actuator |
| Control Type | Two-position |
| Supply Voltage | 120 VAC |
| Frequency | 60 Hz |
| Rated Torque | 60 lb-in |
| Running Power | 70 W |
| Holding Power | 25 W |
| Return Type | Spring return |
| Auxiliary Switch | Included |
| Weight | 8.84 lb |
Information About MA-418-500-0-4
The MA-418-500-0-4 is a Barber-Colman actuator intended for HVAC damper positioning applications. Its two-position design uses a spring-return mechanism to establish the designated return position when power is removed. The actuator operates from a 120 VAC, 60 Hz supply and has a listed running power of 70 watts. It also provides 25 watts of holding power and includes an auxiliary switch for compatible control circuits.
Key Features:
- Damper Actuation: Provides mechanical positioning for compatible HVAC dampers.
- Two-Position Control: Designed for two-position damper operation.
- Spring Return: Returns to the designated position when actuator power is removed.
- 120 VAC Supply: Operates from a 120 VAC, 60 Hz electrical supply.
- Rated Torque: Provides 60 lb-in of rated output torque.
- Auxiliary Switch: Includes an auxiliary switch for compatible control circuits.
- Running Power: Rated at 70 watts during operation.
- Holding Power: Rated at 25 watts for holding operation.
The MA-418-500-0-4 delivers the reliability and precision required for HVAC damper positioning and building control applications.
