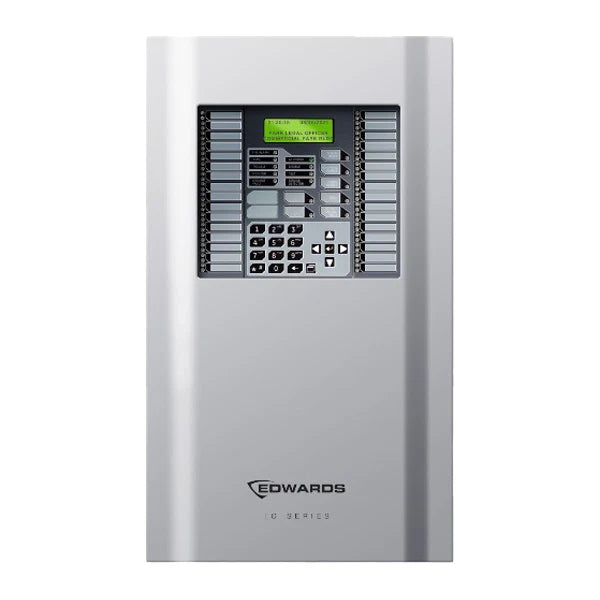

IO1000G | Edwards Intelligent Fire Alarm Control Panel, 250–1000 Address Capacity, Gray Door
- Regular price
- $1,917.00
- Sale price
- $1,917.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: IO1000G
Description
The Edwards IO1000G is an intelligent addressable fire alarm control panel (FACP) designed for medium to large-scale life safety applications. Supporting up to 250 device addresses onboard and expandable to 1,000 with additional loop cards, it provides versatile fire detection and notification capabilities. With advanced programming, modular expansion, and optional Ethernet connectivity, the IO1000G delivers reliable fire protection in a flexible system platform.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards |
| Category | Fire Safety |
| Part Number | IO1000G |
| Subcategory | Fire Alarm Control Panel |
| Type | Intelligent Addressable FACP |
| Device Capacity | 250 addresses onboard; expandable to 1,000 |
| SLC Loops | 1 Class B or A standard; expandable to 4 |
| NAC Circuits | 4 × Class B or 2 × Class A, 2.5 A per circuit (6.0 A total) |
| Auxiliary Power | 2 × 24 VDC outputs, 500 mA each (1 resettable) |
| Primary Power | 120 VAC, 60 Hz, 1.3–2.0 A max input |
| Operating Voltage | 24 VDC |
| Battery Capacity | Supports 2 × 18 Ah batteries in cabinet; charging up to 26 Ah |
| Communication | Optional SA-DACT for Contact ID reporting |
| Annunciators | Up to 8 serial annunciators (LCD, LED, or graphic) |
| Maintenance Features | Two-level maintenance alerts, pre-alarm, adjustable sensitivity |
| Display | 4 × 20 character backlit LCD |
| Optional Features | Ethernet diagnostics, seismic hardening (Importance Factor 1.5) |
| Dimensions | Standard cabinet size with gray door (G version) |
| Weight | 38.00 lbs |
Information About IO1000G
The IO1000G is part of the Edwards iO Series intelligent fire alarm systems, which combine high-end performance with simplified installation and operation. It supports both Class A and Class B device wiring, with four onboard notification appliance circuits configurable as Class A or B. Expansion modules allow system growth in 250-point increments, accommodating Signature Series detectors, modules, and CO detection devices. With built-in auto-programming, electronic addressing, and automatic device mapping, the IO1000G minimizes setup time while ensuring accuracy. Optional modules provide remote annunciation, Ethernet-based diagnostics, or conventional device integration, making the panel ideal for retrofit or new installations.
Key Features:
- Expandable Capacity: Supports 250 addresses onboard, expandable to 1,000 with loop controllers.
- Multiple NAC Circuits: Four NACs (Class B or Class A), 2.5 A per circuit, 6.0 A total.
- Signature Series Compatibility: Works with intelligent detectors, modules, and CO detection devices.
- Integrated Releasing Capability: Supports SIGA-REL releasing modules for fire suppression.
- Auto-Programming: Reduces installation time with automatic device configuration.
- Advanced Reporting: Pre-alarm, alarm verification, maintenance alerts, and sensitivity adjustment by point.
- Communication Options: Optional Ethernet port and SA-DACT communicator for remote monitoring.
- Flexible Annunciation: Supports up to eight remote annunciators, including LCD and graphic displays.
The IO1000G delivers the scalability and performance required for modern fire protection in commercial, institutional, and industrial facilities.
Description
The Edwards IO1000G is an intelligent addressable fire alarm control panel (FACP) designed for medium to large-scale life safety applications. Supporting up to 250 device addresses onboard and expandable to 1,000 with additional loop cards, it provides versatile fire detection and notification capabilities. With advanced programming, modular expansion, and optional Ethernet connectivity, the IO1000G delivers reliable fire protection in a flexible system platform.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards |
| Category | Fire Safety |
| Part Number | IO1000G |
| Subcategory | Fire Alarm Control Panel |
| Type | Intelligent Addressable FACP |
| Device Capacity | 250 addresses onboard; expandable to 1,000 |
| SLC Loops | 1 Class B or A standard; expandable to 4 |
| NAC Circuits | 4 × Class B or 2 × Class A, 2.5 A per circuit (6.0 A total) |
| Auxiliary Power | 2 × 24 VDC outputs, 500 mA each (1 resettable) |
| Primary Power | 120 VAC, 60 Hz, 1.3–2.0 A max input |
| Operating Voltage | 24 VDC |
| Battery Capacity | Supports 2 × 18 Ah batteries in cabinet; charging up to 26 Ah |
| Communication | Optional SA-DACT for Contact ID reporting |
| Annunciators | Up to 8 serial annunciators (LCD, LED, or graphic) |
| Maintenance Features | Two-level maintenance alerts, pre-alarm, adjustable sensitivity |
| Display | 4 × 20 character backlit LCD |
| Optional Features | Ethernet diagnostics, seismic hardening (Importance Factor 1.5) |
| Dimensions | Standard cabinet size with gray door (G version) |
| Weight | 38.00 lbs |
Information About IO1000G
The IO1000G is part of the Edwards iO Series intelligent fire alarm systems, which combine high-end performance with simplified installation and operation. It supports both Class A and Class B device wiring, with four onboard notification appliance circuits configurable as Class A or B. Expansion modules allow system growth in 250-point increments, accommodating Signature Series detectors, modules, and CO detection devices. With built-in auto-programming, electronic addressing, and automatic device mapping, the IO1000G minimizes setup time while ensuring accuracy. Optional modules provide remote annunciation, Ethernet-based diagnostics, or conventional device integration, making the panel ideal for retrofit or new installations.
Key Features:
- Expandable Capacity: Supports 250 addresses onboard, expandable to 1,000 with loop controllers.
- Multiple NAC Circuits: Four NACs (Class B or Class A), 2.5 A per circuit, 6.0 A total.
- Signature Series Compatibility: Works with intelligent detectors, modules, and CO detection devices.
- Integrated Releasing Capability: Supports SIGA-REL releasing modules for fire suppression.
- Auto-Programming: Reduces installation time with automatic device configuration.
- Advanced Reporting: Pre-alarm, alarm verification, maintenance alerts, and sensitivity adjustment by point.
- Communication Options: Optional Ethernet port and SA-DACT communicator for remote monitoring.
- Flexible Annunciation: Supports up to eight remote annunciators, including LCD and graphic displays.
The IO1000G delivers the scalability and performance required for modern fire protection in commercial, institutional, and industrial facilities.
