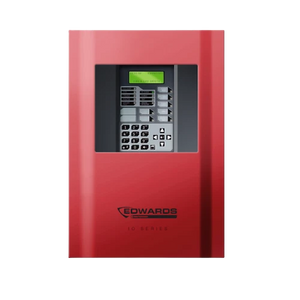

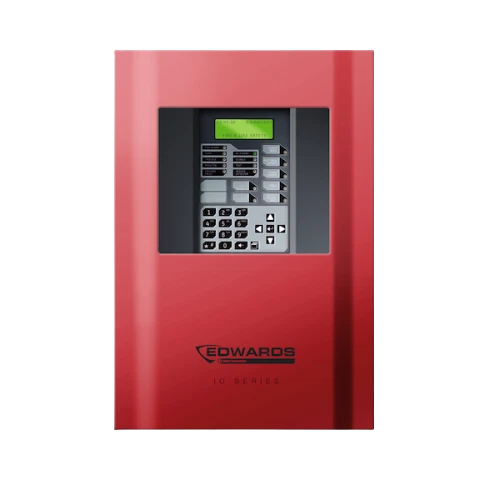

IO64R | Edwards EST Intelligent Addressable Fire Alarm Control Panel 64 Devices
- Regular price
- $989.00
- Sale price
- $989.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IO64R
Description
The Edwards EST IO64R is an intelligent addressable fire alarm control panel supporting up to 64 devices on a single loop. It includes two NAC circuits rated at 2.5 A each, a 4.25 A power supply, and a 4×20 backlit LCD for programming, diagnostics, and system operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Edwards EST |
| Category | Fire Alarm Systems |
| Part Number | IO64R |
| Subcategory | Addressable Fire Alarm Control Panel |
| Type | Intelligent addressable FACP |
| Device Capacity | 64 intelligent addresses |
| SLC Loops | 1 loop, Class B or Class A Signature Series |
| NAC Circuits | 2 Class B outputs, 2.5 A each |
| Power Supply | 4.25 A regulated |
| Primary Power | 230 VAC (also available in 120 VAC models) |
| Auxiliary Power | 24 VDC accessory output |
| Display | 4×20 character backlit LCD |
| Relays | Form C alarm and trouble, Form A supervisory |
| Batteries | Supports two 10 Ah sealed lead-acid batteries inside cabinet |
| Communicator | Optional SA-DACT dual-line dialer (Contact ID reporting) |
| Annunciators | Supports up to 8 serial annunciators and D16L-iO LED expanders |
| Compatibility | Signature Series modules and detectors, Genesis notification appliances |
| Coding | Temporal 3 or Temporal 4 |
| Strobe Sync | UL 1971-compliant Genesis horn/strobe synchronization |
| Maintenance Features | Auto-programming, pre-alarm, verification, and maintenance alert reporting |
| Networking | Optional Ethernet diagnostics and remote upload/download |
| Enclosure | Surface-mount cabinet with red door |
| Dimensions | 26 in H × 17 in W × 13 in D |
| Weight | 16 lbs |
Information About IO64R
The IO64R is a compact yet powerful Edwards EST intelligent fire alarm control panel designed for small to mid-sized installations. It supports up to 64 intelligent detectors and modules on a single Signature loop and provides two NAC circuits for notification appliances. With features such as auto-programming, device mapping, and ground fault detection, the panel streamlines setup and ensures reliable performance. The IO64R supports Genesis synchronization, CO detection, and optional releasing functions through Signature Series modules, making it versatile for multiple life safety applications.
Key Features:
- Intelligent Device Support: Manages up to 64 Signature Series intelligent detectors and modules on a single loop.
- Dual NAC Circuits: Two Class B circuits rated at 2.5 A each provide robust notification appliance support.
- User-Friendly Operation: 4×20 backlit LCD screen simplifies programming, diagnostics, and monitoring.
- Flexible Integration: Compatible with Signature Series modules, Genesis notification appliances, and optional SA-DACT communicator.
- Advanced Programming: Includes auto-programming, electronic addressing, device mapping, and adjustable sensitivity.
- Robust Relays: Provides Form C alarm/trouble relays and a Form A supervisory relay for system integration.
- Expansion Ready: Supports up to eight remote annunciators, LED expanders, and optional Ethernet connectivity.
- Enhanced Features: Offers horn silence over two wires, strobe synchronization, pre-alarm verification, and two-level maintenance reporting.
- Durable Construction: Surface-mounted red steel cabinet with space for two 10 Ah standby batteries.
- Standards Compliance: UL 1971 strobe synchronization and seismic Importance Factor 1.5 option for rugged installations.
The IO64R delivers the reliability and precision required for small to mid-scale fire alarm applications, combining intelligent detection, flexible integration, and intuitive user control.
