IP-4GVI22 | Industrial ATX Motherboard with Intel 845GV Chipset, Socket 478, ISA/PCI Slots
- Regular price
- $4,845.24
- Sale price
- $4,845.24
- Regular price
-
$5,634.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: IP-4GVI22
Description

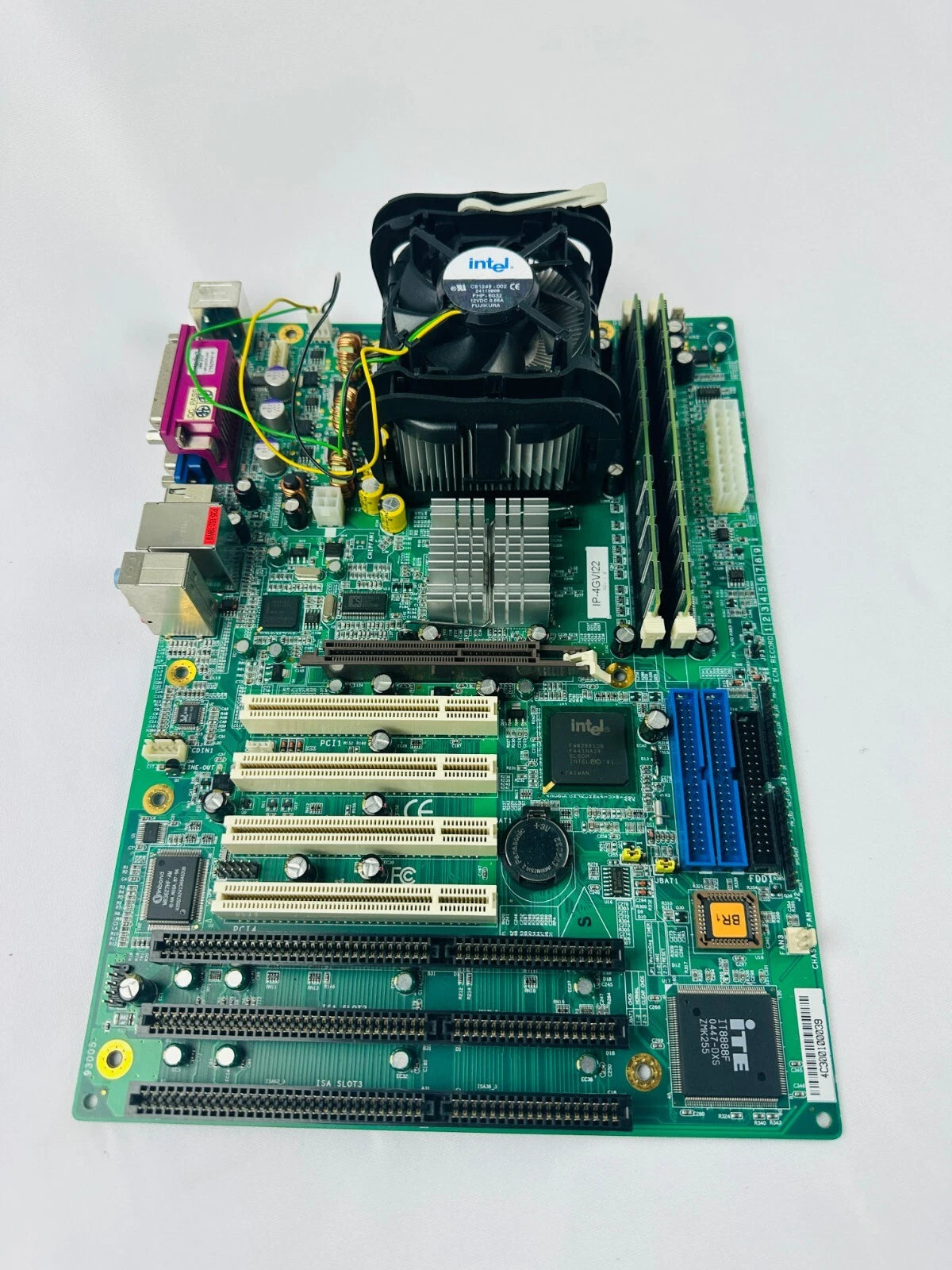

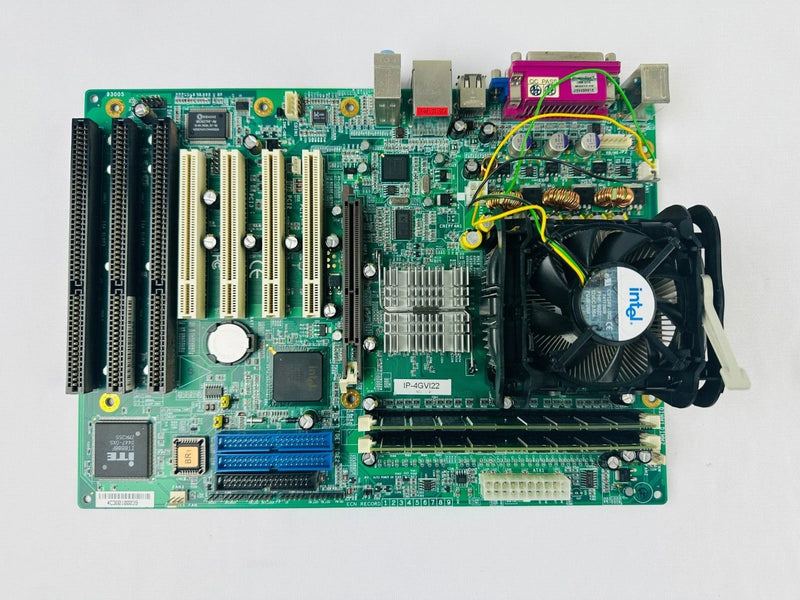

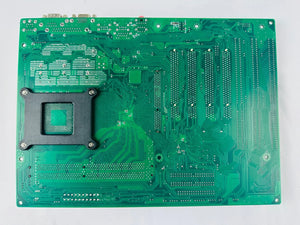

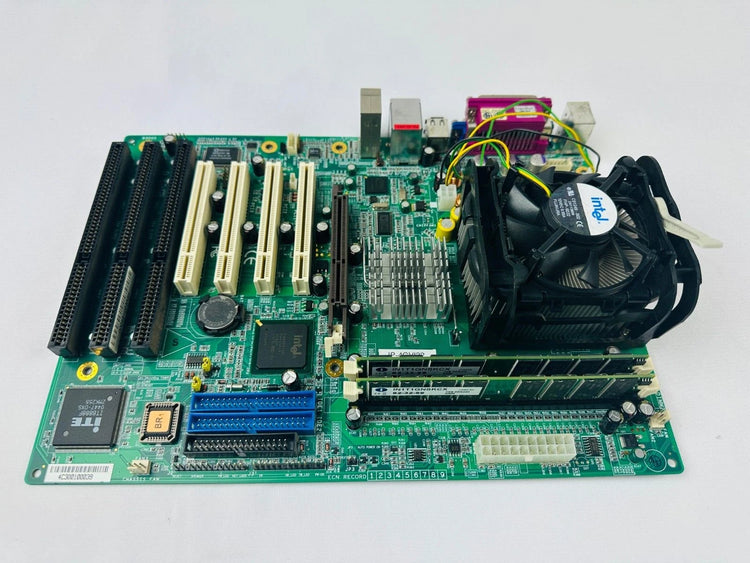

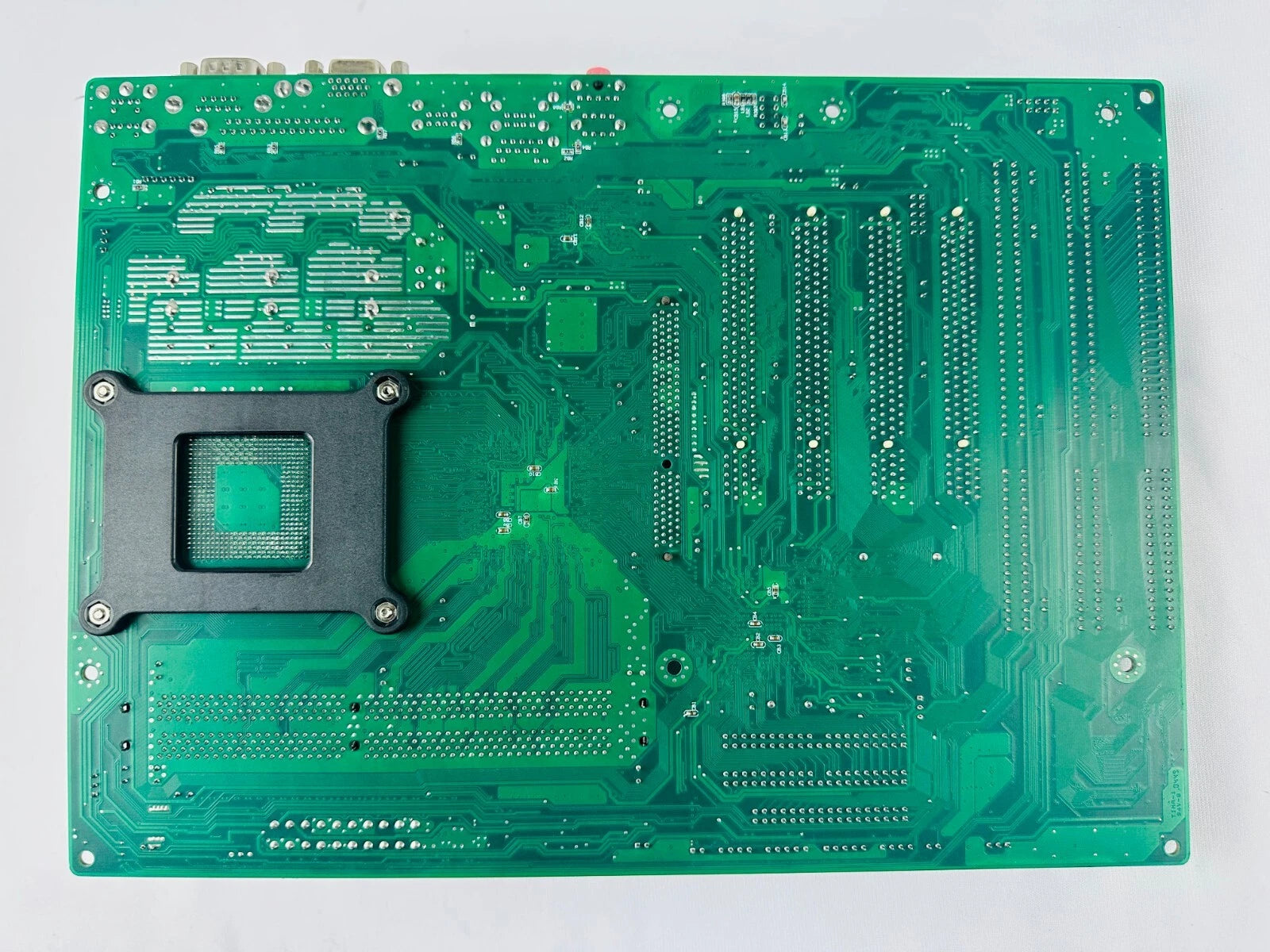

The IP-4GVI22 is an industrial ATX motherboard built around the Intel® 845GV chipset, designed for Socket 478 Intel Pentium® 4 and Celeron processors up to 3.06 GHz. Supporting DDR266/333 memory up to 2 GB, it provides legacy compatibility with 3 ISA slots and 4 PCI slots, alongside an onboard Intel® 82541GI Gigabit Ethernet controller. This board integrates industrial features such as watchdog timer, hardware monitoring, and versatile I/O, making it suitable for embedded and industrial computing applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | OEM (Epox/Industrial Board) |
| Category | Computer |
| Part Number | IP-4GVI22 |
| Subcategory | Motherboard |
| Chipset | Intel® 845GV + ICH4 |
| Processor Support | Intel Pentium® 4 / Celeron (Socket 478) up to 3.06 GHz |
| FSB Speeds | 400/533 MHz |
| Memory Support | DDR266/333, up to 2 GB, 2 × 184-pin DIMM |
| LAN Controller | Intel® 82541GI, 10/100/1000Base-TX |
| Audio | AC97 codec |
| Graphics | Onboard VGA, 1 × AGP ADD slot |
| Expansion Slots | 3 × ISA, 4 × PCI, 1 × AGP (ADD) |
| I/O Ports | 1 × Floppy, 1 × Gameport, 2 × IDE, 1 × PS/2 keyboard, 1 × PS/2 mouse, 1 × Parallel, 1 × RJ-45, 2 × Serial, 6 × USB 2.0, 1 × VGA |
| IDE Support | PIO Mode 0–4, DMA 0–2, ATA-100, up to 4 devices |
| Form Factor | ATX |
| Dimensions (W × H) | 305 × 220 mm |
| Watchdog Timer | Integrated |
| Hardware Monitoring | Supported |
| Power Connectors | ATX 20-pin + ATX P4 4-pin |
| Operating Temp. | 0…+50 °C (typical industrial use) |
| Weight | 2.01 lbs (≈0.91 kg) |
Information About IP-4GVI22
The IP-4GVI22 is part of a generation of industrial motherboards built for long-term stability and extended lifecycle support in control, automation, and embedded PC systems. It combines the Intel® 845GV northbridge with the ICH4 southbridge to deliver compatibility with Pentium® 4 and Celeron® processors operating on a 400/533 MHz front-side bus. Memory support is provided via two 184-pin DDR DIMM sockets for up to 2 GB total capacity. With dimensions of 305 × 220 mm, the board fits the ATX form factor while offering expanded legacy connectivity, including ISA slots, parallel port, floppy interface, and multiple COM and USB ports. It integrates AC97 audio, Intel® 82541GI Gigabit LAN, and a watchdog timer to ensure operational reliability in industrial environments.
Key Features:
- Processor support: Socket 478 for Intel Pentium® 4 and Celeron processors up to 3.06 GHz.
- Chipset: Intel® 845GV northbridge with ICH4 southbridge for stable performance.
- Memory: Two DDR266/333 DIMM slots, expandable up to 2 GB.
- Expansion capability: 3× ISA, 4× PCI, and 1× AGP (ADD) slot for graphics and add-on cards.
- Networking: Intel® 82541GI Gigabit Ethernet controller for high-speed connectivity.
- I/O support: Includes VGA, parallel, serial, PS/2, IDE, USB 2.0, and floppy interfaces.
- Industrial functions: Watchdog timer and hardware monitoring for system stability.
- Form factor: ATX layout with 305 × 220 mm dimensions for versatile system integration.
The IP-4GVI22 delivers the durability, compatibility, and expandability required for industrial and embedded PC solutions.
