IP-4GVI63 | Beckhoff Industrial Motherboard with Intel 845GV Chipset and Socket 478
- Regular price
- $2,932.00
- Sale price
- $2,932.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IP-4GVI63
Description

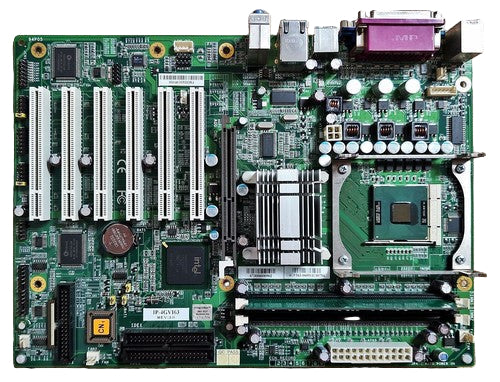

The Beckhoff IP-4GVI63 motherboard is built on the Intel 845GV chipset and supports Socket 478 processors, including the Intel Celeron 2.0 GHz. It provides stable performance for legacy industrial computing systems with DDR memory and IDE-based storage. Designed for long-term reliability, it is suitable for industrial PCs requiring solid motherboard integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Computer |
| Part Number | IP-4GVI63 |
| Subcategory | Motherboard |
| Chipset | Intel 845GV (Brookdale-GV) |
| CPU Support | Intel Celeron 2.0 GHz (Socket 478, mPGA478) |
| Front Side Bus (FSB) | 400 MHz / 533 MHz |
| Max RAM Size | 2 GB DDR UDIMM |
| Installed Memory | 512 MB DDR-RAM |
| Expansion Slots | 6 x PCI 32-bit, 1 x AGP |
| I/O Ports | USB 2.0 (6), Serial (4), PS/2 Keyboard (1), PS/2 Mouse (1), LAN RJ-45 (1), VGA (1), Audio Combo (1), Parallel (1), IDE (2), Floppy (1), IrDA (1) |
| HDD Support | ExcelSlot J840, 40 GB IDE HDD |
| DVD Drive | Toshiba SD-M2012 IDE |
| FDD Drive | Teac FD235HF |
| Operating System | Windows XP Professional |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Dimensions (W x H x D) | 350 x 381 x 265 mm |
| Operating Temperature | 0…60 °C |
| Weight | Approx. 2.10 lbs |
Information About IP-4GVI63
The IP-4GVI63 is a discontinued Beckhoff industrial motherboard designed around the Intel 845GV (Brookdale-GV) chipset. It supports front-side bus speeds of 400 MHz and 533 MHz, with up to 2 GB of DDR UDIMM memory. The board is compatible with Windows XP Professional, offering legacy support for automation environments. Featuring a range of legacy and expansion interfaces, it integrates seamlessly with industrial PC housings for durable, long-term use.
Key Features:
- Chipset: Built on Intel 845GV (Brookdale-GV) for Socket 478 processors.
- CPU Support: Compatible with Intel Celeron 2.0 GHz and similar CPUs.
- Memory Capacity: Supports up to 2 GB DDR UDIMM RAM (512 MB included).
- Expansion Capability: Provides 6 PCI slots and 1 AGP slot for add-on cards.
- Storage Interfaces: Equipped with IDE and floppy drive support.
- Connectivity: Offers LAN, USB 2.0, serial, and parallel ports for peripheral connections.
- Legacy I/O Support: PS/2 keyboard/mouse, VGA, and audio combo jack included.
- Industrial Use: Designed for long-term embedded PC applications with stable performance.
The IP-4GVI63 delivers the reliability and expansion flexibility required for industrial PC and automation control environments.
