IPA-4000 | Potter 4,064-Point Expandable Analog/Addressable Fire Alarm Control Panel
- Regular price
- $2,399.00
- Sale price
- $2,399.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: IPA-4000
Description

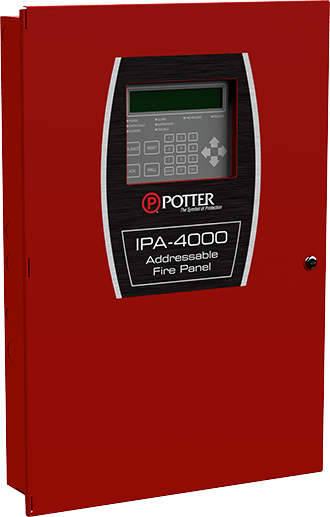

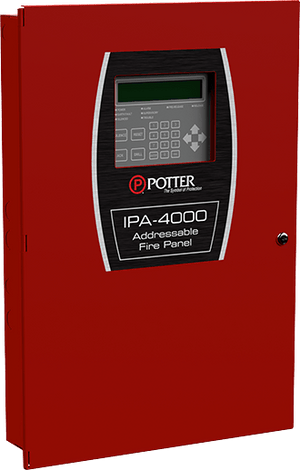

The Potter IPA-4000 is an expandable analog/addressable fire alarm control panel with a total capacity of 4,064 points. It delivers robust detection, signaling, and releasing capabilities for large commercial and industrial facilities. Built to meet UL and NFPA requirements, the IPA-4000 provides flexible configuration and reliable performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Potter |
| Category | Fire Safety |
| Part Number | IPA-4000 |
| Subcategory | Fire Alarm Control Panels |
| Series | IPA Series |
| System Capacity | 4,064 addressable points |
| Built-in SLC | 1 loop, up to 127 devices |
| Expandable SLCs | Up to 31 additional loops |
| Notification Appliance Circuits (NACs) | 6 × 3A @ 24VDC |
| Programmable I/O | 4 configurable circuits |
| Releasing Capability | Yes, NFPA-compliant |
| Wiring | Class A or Class B |
| Communication | P-Link, V-Link, DACT, IP/fiber options |
| Power Input | 120/240 VAC, 50/60 Hz |
| Battery Support | 8–55 AH (cabinet fits up to 18 AH) |
| Compliance | UL 864, NFPA 72 |
| Production Status | Active |
| Weight | 23.7 lb |
Information About IPA-4000
The IPA-4000 is part of Potter’s IPA series of addressable fire alarm control panels. It comes standard with one signaling line circuit (SLC) supporting 127 devices and can be expanded with up to 31 additional SLCs, reaching a maximum of 4,064 addressable points. Each SLC supports any combination of smoke detectors, heat detectors, or modules. The panel also features six NAC circuits rated at 3A each, four programmable input/output circuits, and built-in releasing capability. Expansion is supported via P-Link and V-Link buses for annunciators, network modules, and voice evacuation systems, making the IPA-4000 ideal for high-capacity installations.
Key Features:
- High System Capacity: Supports up to 4,064 addressable points with expansion.
- Expandable Loops: One built-in SLC expandable to 32 total, 127 devices each.
- Robust NAC Support: Six Class A/B NACs rated at 3A per circuit.
- Programmable I/O: Four configurable input/output circuits for added flexibility.
- Releasing Functions: Supports agent releasing applications per NFPA standards.
- Voice and ECS Options: Compatible with IPA-4000V for integrated voice evacuation.
- Flexible Wiring: Supports Class A and B configurations.
- Potter Protocol: Works with the complete line of PAD100/Nohmi detectors and modules.
The IPA-4000 delivers the reliability and precision required for complex fire detection and suppression systems in large-scale facilities.
