IQAN-TOC8 | Parker Task-Oriented Standalone Controller
- Regular price
- $1,059.00
- Sale price
- $1,059.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IQAN-TOC8
Description

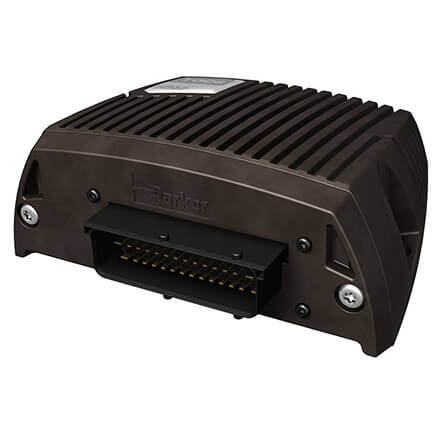

The Parker IQAN-TOC8 is a standalone task-oriented controller designed for vehicle and mobile machinery control applications. It provides programmable interfacing with various inputs and outputs, enabling integration with sensors, actuators, and communication buses. Engineered for rugged environments, the TOC8 is ideal for field deployment in demanding outdoor systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Parker |
| Category |
Controls & Indicators
|
| Part Number | IQAN-TOC8 |
| Subcategory | Control |
| Controller Type | Standalone Controller |
| Voltage Range | 9–32 VDC |
| Inputs | 10 (analog/digital compatible) |
| Outputs | 8 (2 proportional, 6 digital/PWM) |
| Output Current Rating | 2000 mA max |
| Software Platform | IQANdevelop |
| Communication Protocol | SAE J1939 CAN |
| Connector Type | AMP/Tyco 42-pin Junior Power Timer |
| Operating Temperature | −40°C to +70°C |
| Ingress Protection | IP69K |
| Mounting | Bolt-on with automotive connector housing |
| Programming Method | PC via IQANdevelop |
| Unit Status | Mature / Not Recommended for New Designs |
| Weight | 2.50 lbs |
Information About IQAN-TOC8
The IQAN-TOC8 is a legacy controller developed by Parker as part of the IQAN series, intended for machine and vehicle applications requiring reliable, flexible control logic. It features analog/digital input channels, proportional and PWM outputs, and is compatible with the SAE J1939 CAN protocol. Programming is performed using the IQANdevelop software, enabling OEMs to tailor functionality to specific equipment. Its IP69K-rated aluminum housing and AMP/Tyco connectors ensure durable operation under extreme environmental conditions.
Key Features:
- Standalone Functionality: Operates independently for complete system control without additional modules.
- SAE J1939 CAN Interface: Supports communication with engine and other vehicle systems.
- Flexible I/O Configuration: Offers 10 input channels and 8 output channels including proportional and PWM types.
- Rugged Enclosure: IP69K-rated aluminum housing protects against dust, water, and vibration.
- Wide Voltage Range: Accepts 9–32 VDC, suitable for mobile machinery power systems.
- Custom Programming: User-defined logic via IQANdevelop software for tailored control strategies.
- Field-Replaceable Unit: Ships unprogrammed, allowing fast replacement and deployment in existing machines.
- Legacy Support: Ideal for maintenance of older systems still operating with IQAN architecture.
The IQAN-TOC8 delivers the reliability and customization required for robust vehicle control in mobile industrial applications.
