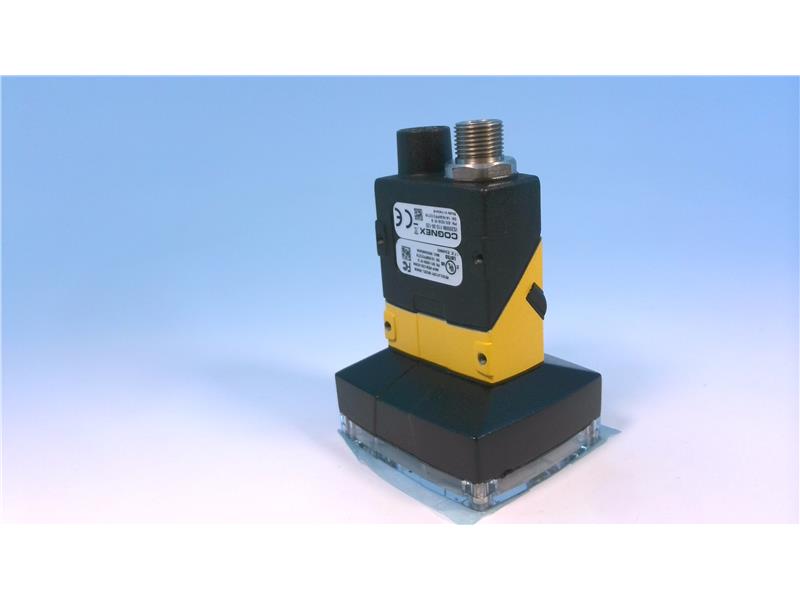

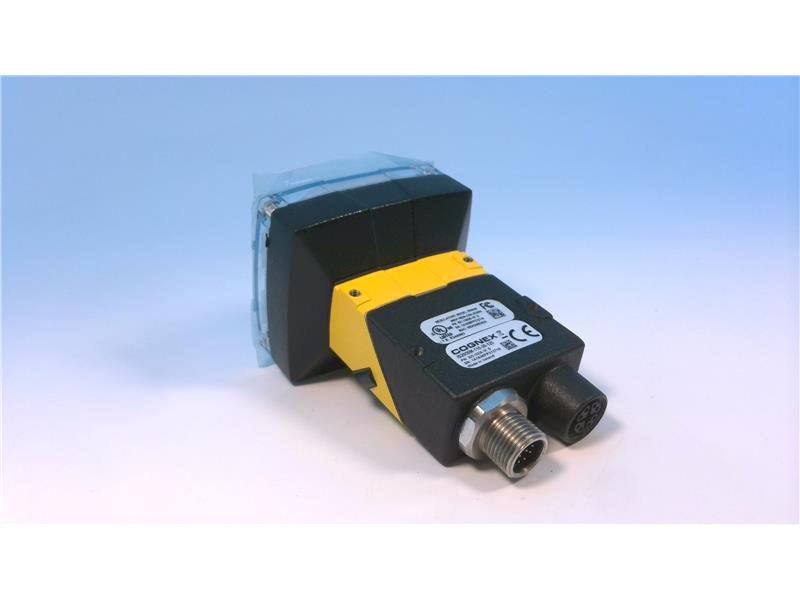

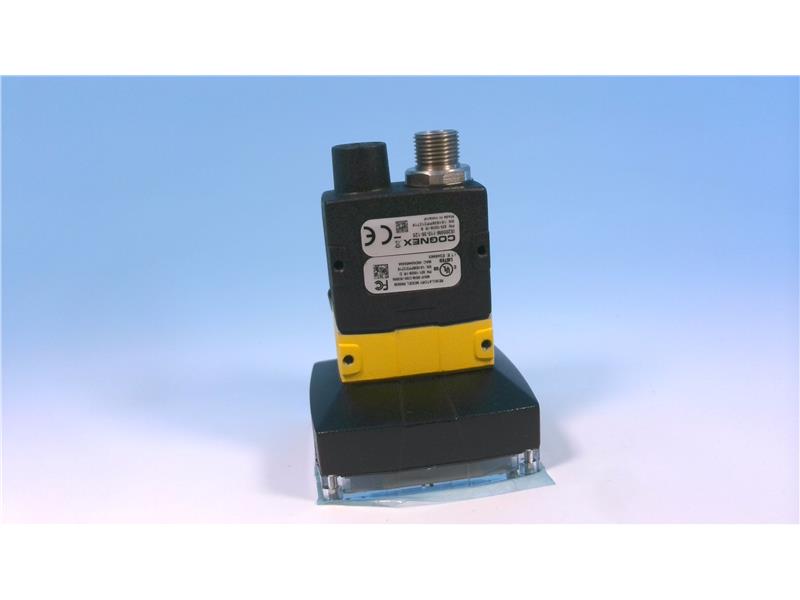

IS2000M-110-30-125 | Cognex Vision Sensor

Description

The Cognex IS2000M-110-30-125 is a Vision Sensor designed for industrial applications. It provides image-based inspection and analysis, facilitating automated quality control and process monitoring.

Technical Specifications

Information About IS2000M-110-30-125

The IS2000M-110-30-125 is a high-performance Vision Sensor designed for industrial applications where precision image capture and analysis are critical. As part of the Camera & Vision category, this sensor is specifically engineered for use in vision systems, providing reliable image-based inspection, quality control, and process monitoring. The robust design and advanced features of the IS2000M-110-30-125 make it a versatile solution for a wide range of industrial environments.

At the core of the IS2000M-110-30-125 is a monochrome image sensor that delivers high-resolution image capture, with a resolution of 640 x 480 pixels. This resolution is ideal for applications that require detailed image analysis, such as identifying defects, verifying assembly, or tracking components. The monochrome sensor is optimized for clarity and contrast, ensuring that even subtle differences in the image are accurately captured and processed. This level of precision is essential in industries where quality and consistency are paramount.

The vision sensor operates at a maximum acquisition speed of 40 frames per second (fps), allowing it to capture and process images rapidly. This high-speed capability is crucial in fast-paced production environments where real-time image processing is required to keep up with the speed of the manufacturing line. The ability to quickly acquire and analyze images ensures that the sensor can detect issues or anomalies as they occur, enabling immediate corrective actions and reducing the risk of defective products reaching the end of the production line.

The IS2000M-110-30-125 is equipped with an 8mm lens that features manual focus adjustment. This lens provides the flexibility to fine-tune the focus based on the specific requirements of the application, ensuring that the sensor can capture sharp, detailed images regardless of the distance or size of the object being inspected. The manual focus capability is particularly useful in applications where the sensor needs to be adjusted for different tasks or where precise control over the focal distance is necessary.

In addition to its imaging capabilities, the IS2000M-110-30-125 includes discrete input and output options, enhancing its integration with existing industrial systems. The sensor is equipped with 2 opto-isolated discrete inputs and 4 opto-isolated discrete outputs. These inputs and outputs allow the sensor to interface with other control devices, such as PLCs or automation systems, enabling coordinated control and feedback based on the results of the image analysis. The opto-isolated design ensures that the sensor is protected from electrical noise and interference, which is common in industrial environments, thereby maintaining reliable operation.

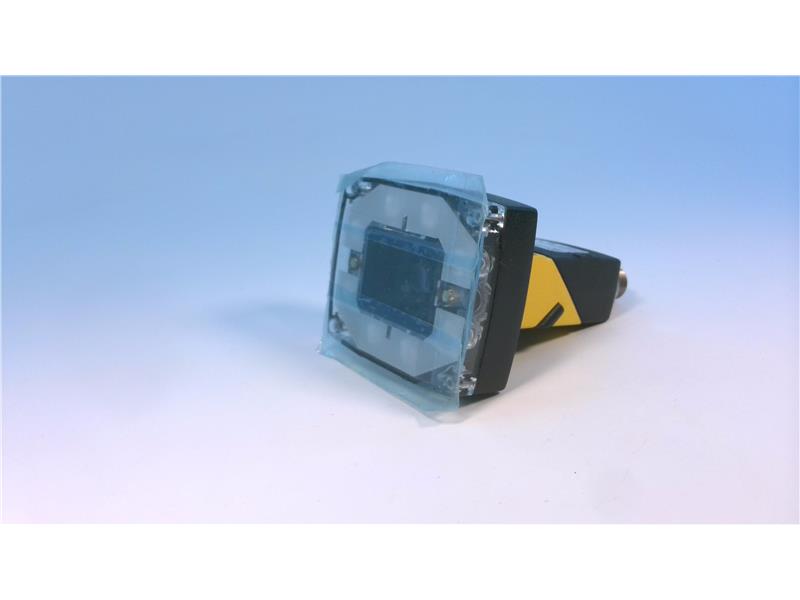

The sensor also features integrated lighting in the form of a diffuse white LED ring light. This built-in lighting ensures consistent illumination of the target area, which is critical for achieving accurate image capture. The diffuse nature of the LED ring light minimizes shadows and glare, providing even lighting across the entire field of view. This consistent lighting helps to improve the accuracy of image analysis by reducing the variability that can result from changes in ambient lighting conditions.

The IS2000M-110-30-125 operates on a 24 VDC power supply with a tolerance of ±10%. This standard power requirement makes it easy to integrate the sensor into existing industrial power systems without the need for specialized power supplies. The sensor's power efficiency and reliability are further enhanced by its robust construction, which includes a housing made of painted aluminum. The use of painted aluminum provides a durable and lightweight enclosure that protects the internal components from physical damage, while also offering resistance to corrosion and environmental factors.

The combination of its advanced imaging capabilities, flexible lens options, reliable I/O integration, and robust construction makes the IS2000M-110-30-125 an ideal choice for a wide range of industrial vision applications. Whether used in automated inspection, quality control, or process monitoring, this vision sensor delivers the precision and reliability needed to meet the demanding requirements of modern manufacturing and production environments. Its ability to rapidly capture and analyze images, coupled with its ease of integration into existing systems, ensures that the IS2000M-110-30-125 can contribute to improved product quality, reduced waste, and enhanced operational efficiency.

In summary, the IS2000M-110-30-125 Vision Sensor is a versatile and powerful tool for industrial vision applications. Its high-resolution monochrome sensor, fast acquisition speed, manual focus lens, integrated LED lighting, and robust construction combine to deliver exceptional performance in even the most challenging environments. This sensor is an essential component for any industrial system that requires reliable and precise image-based inspection and analysis.

Manufacturer information

Cognex Corporation is a global leader in machine vision and industrial barcode reading. Founded in 1981, Cognex specializes in providing vision systems, software, and sensors for automation, quality inspection, and logistics. Their solutions are widely used in manufacturing, logistics, and various industries to enhance efficiency and quality control.
