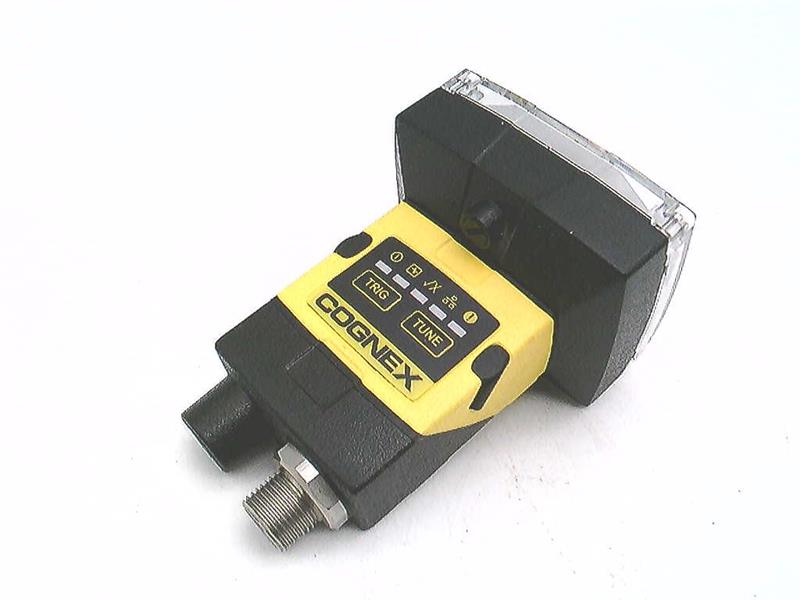

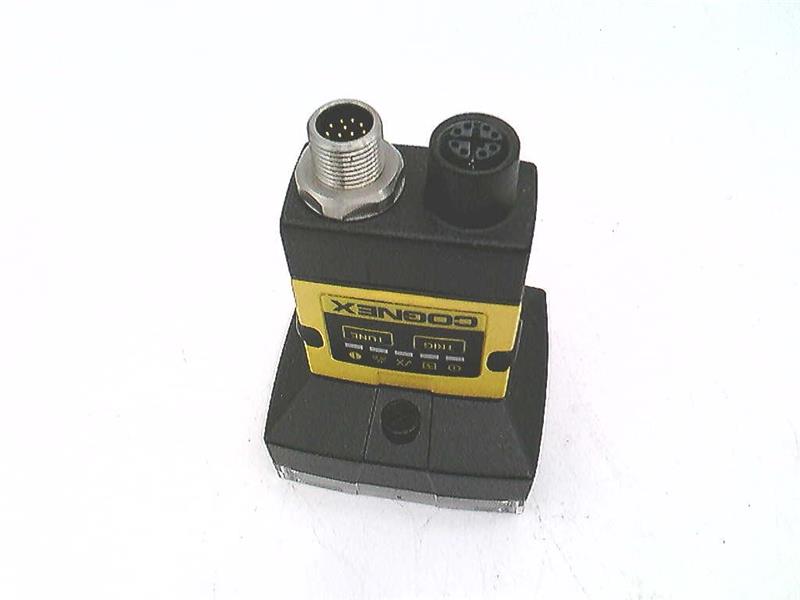

IS2000M-120-40-125 | Cognex Vision Sensor

Description

The IS2000M-120-40-125 is a Vision Sensor designed for industrial automation applications. It provides real-time image processing capabilities to perform tasks such as inspection, measurement, and object detection. This sensor integrates seamlessly into control systems to enhance operational efficiency and quality control.

Technical Specifications

Information About IS2000M-120-40-125

The IS2000M-120-40-125 is a Vision Sensor from the In-Sight 2000-120 series, designed to meet the needs of industrial automation by providing robust image processing capabilities for inspection, measurement, and object detection tasks. This sensor falls under the Camera & Vision category, specifically classified as a Vision System Assembly. Engineered for reliability and efficiency, the IS2000M-120-40-125 combines advanced imaging technology with user-friendly features, making it an ideal solution for quality control and automated inspection in various manufacturing environments.

At the core of the IS2000M-120-40-125 Vision Sensor is a 1/3" CMOS imager, which delivers high-quality image capture with a resolution of 640 x 480 pixels. This resolution is suitable for detecting fine details and variations in inspected objects, enabling accurate assessment and quality assurance. The sensor also supports a 2x magnification mode, maintaining the same resolution, which enhances its ability to detect smaller features and inspect areas with greater precision. This versatility in resolution and magnification allows the IS2000M-120-40-125 to be adapted to a wide range of inspection applications, from verifying component placement to detecting defects in finished products.

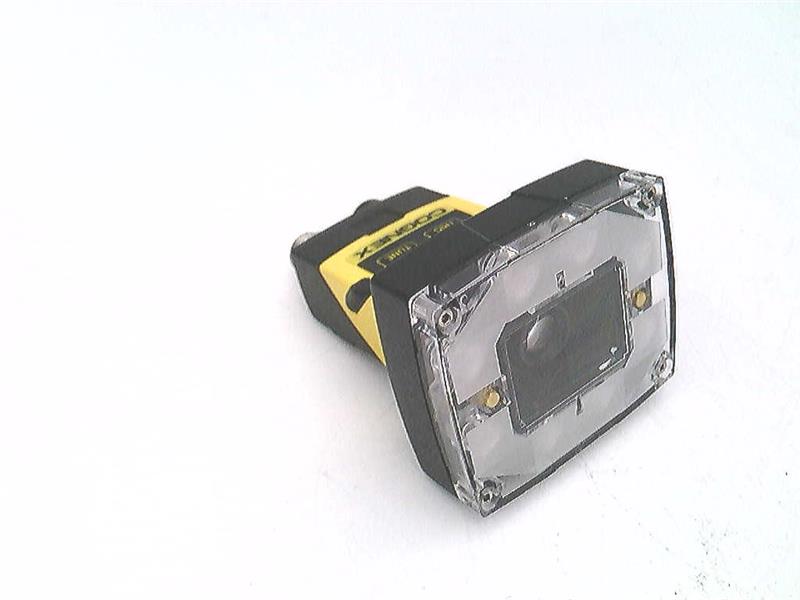

One of the key features of the IS2000M-120-40-125 is its integrated diffuse white LED ring light, which provides consistent and even illumination across the entire field of view. This lighting setup eliminates shadows and glare, ensuring that images captured by the sensor are clear and free from distortion. The diffuse lighting is particularly effective in highlighting surface details and variations, making it easier for the sensor to identify anomalies, defects, or inconsistencies in the objects being inspected. The use of integrated lighting also simplifies installation, as there is no need for additional external lighting sources, reducing setup time and complexity.

The IS2000M-120-40-125 supports high frame rates, offering up to 75 frames per second (FPS) in monochrome mode and 55 FPS in color mode. These frame rates enable the sensor to capture rapid sequences of images, making it suitable for high-speed inspection tasks where objects move quickly along production lines. The ability to process images at these speeds ensures that the sensor can keep up with fast-moving processes, providing real-time feedback and enabling immediate corrective actions when necessary. This high-speed operation is crucial for maintaining production efficiency and minimizing downtime caused by quality issues.

Designed for integration into existing control systems, the IS2000M-120-40-125 Vision Sensor offers seamless connectivity and compatibility with various industrial communication protocols. This capability allows the sensor to be easily incorporated into complex automation setups, providing a reliable source of visual data that can be used for process monitoring, control, and optimization. The sensor's compatibility with standard communication protocols ensures that it can interact with other automation components, such as PLCs and HMIs, facilitating coordinated control and data sharing across the entire production system.

The In-Sight 2000-120 series is known for its compact and rugged design, and the IS2000M-120-40-125 is no exception. Its durable construction allows it to withstand the rigors of industrial environments, including exposure to dust, vibrations, and varying temperatures. This durability ensures that the sensor remains operational even under challenging conditions, providing consistent and reliable performance over extended periods. The compact form factor of the sensor also makes it easy to install in tight spaces or integrate into existing equipment without requiring significant modifications.

Ease of use is a hallmark of the IS2000M-120-40-125 Vision Sensor. It features intuitive setup and configuration tools, enabling users to quickly define inspection parameters and adjust settings to suit specific application requirements. The sensor can be configured to perform various inspection tasks, such as presence/absence detection, measurement, and barcode reading, providing flexibility for a wide range of applications. User-friendly software interfaces and configuration tools help minimize the learning curve, allowing operators and technicians to efficiently deploy and manage the sensor.

In addition to its imaging capabilities, the IS2000M-120-40-125 Vision Sensor includes features that support diagnostic monitoring and maintenance. These features provide real-time feedback on the sensor's operational status, allowing users to quickly identify and address any issues that may arise. By facilitating proactive maintenance and minimizing unexpected downtime, the sensor contributes to the overall reliability and efficiency of the production process.

In summary, the IS2000M-120-40-125 Vision Sensor is a powerful tool for enhancing automation and quality control in industrial settings. Its high-resolution imaging, integrated diffuse lighting, and fast frame rates make it suitable for a wide range of inspection and measurement tasks. The sensor's robust design, ease of integration, and user-friendly configuration tools ensure that it can be effectively deployed to meet the demands of modern manufacturing environments. By providing accurate and reliable visual data, the IS2000M-120-40-125 supports improved product quality, process efficiency, and operational safety.

Manufacturer information

Cognex Corporation is a global leader in machine vision and industrial barcode reading. Founded in 1981, Cognex specializes in providing vision systems, software, and sensors for automation, quality inspection, and logistics. Their solutions are widely used in manufacturing, logistics, and various industries to enhance efficiency and quality control.
