IS200BAIAH1B | General Electric Bridge Application Interface Board
- Regular price
- $4,737.00
- Sale price
- $4,737.00
- Regular price
-
Do you need more quantity?
Product Description P/N: IS200BAIAH1B
Description
The IS200BAIAH1B is a Bridge Application Interface Board used in GE Innovation Series Drive Systems.
Technical Specifications
Brand | General Electric |
Category | PLCs/Machine Control |
Part Number | IS200BAIAH1B |
Subcategory | PLC Module/Rack |
Series | Innovation Series Drives |
Product Type | Bridge Application Interface Board |
Functional Acronym | BAIA |
Information About IS200BAIAH1B
The IS200BAIAH1B is designed to function as a bridge application interface board in Innovation Series Drive Systems. This board provides earth-ground reference and isolation for signal inputs from terminal boards. Each board is designed with an onboard EEPROM containing firmware not intended for removal or field programming.
Hardware Tips and Specifications

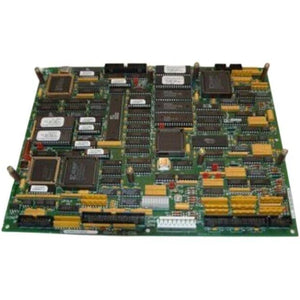

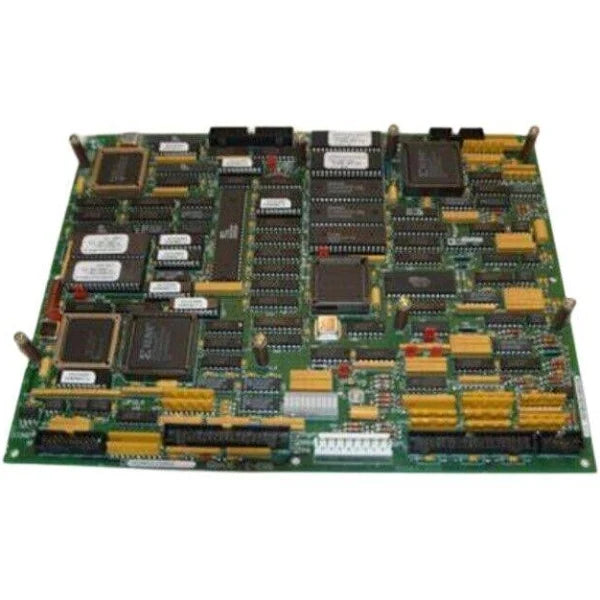

The IS200BAIAH1B is built with a narrow black front panel. This panel includes a single green LED that is marked “IMOK.” The panel also carries the board number and the warning “Install in Slot 1 only.” The IS200BAIAH1B is an Innovation series board, which is designed to be placed into a specific rack slot. This board can be damaged if it is installed into the improper rack slot. Because of this damage risk, it is important too to consider PCB dimensions before making a purchase decision. This particular printed circuit board comes revised with roughly-measured dimensions of 12 inches lengthwise by 9 inches wide. The thickness of this PCB is no greater than an inch and a half.
The IS200BAIAH1B has three relays, six varistors, four jumper switches, three test points, and several integrated circuits. The board has two backplane connectors located on one edge. These backplane connectors are labeled as Pancon 106-128-023 connectors, which have a generally low market availability. Jumpers should be placed in either the VIN position or the 4-20 mA position. The aforementioned black front panel of the IS200BAIAH1B printed circuit board has openings in two central positions, allowing for user access of board parts labeled TP1 TP2 and TP3; three different available testing points.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
