IS200DAMCG1A | General Electric Gate Drive Amplifier

Description

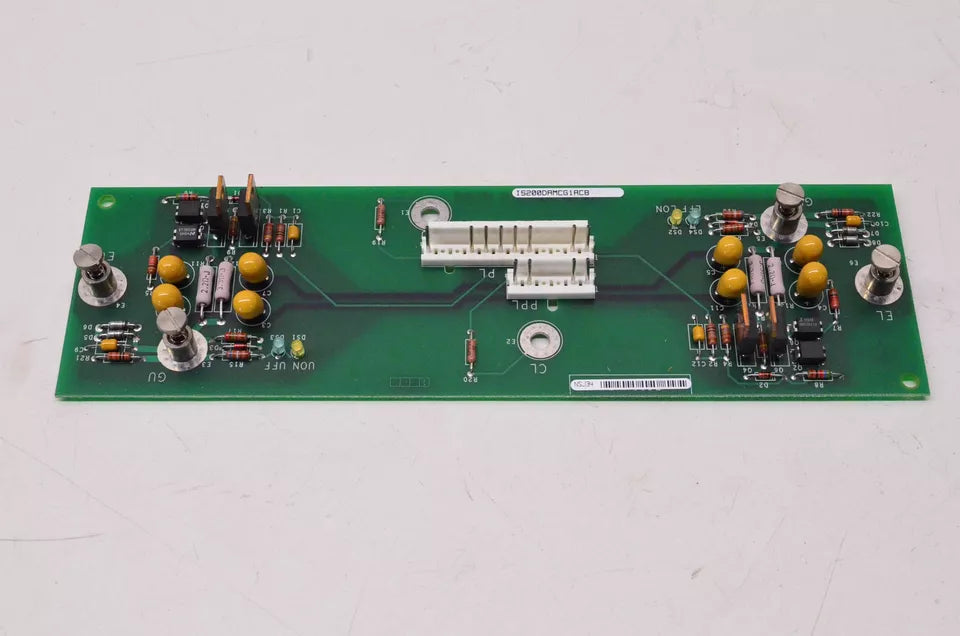

IS200DAMCG1A is a Gate Drive Amplifier board developed by GE. It is a part of GE drive control system. In a low voltage Innovation Series drive, these boards serve as an interface between the devices in charge of switching power (IGBTs) and the control rack. LEDs, or light-emitting diodes, in these devices indicate whether or not the IGBT is turned on.

Technical Specifications

Information About IS200DAMCG1A

The General Electric IS200DAMCG1A Gate Drive Amplifier board, part of the esteemed Drive Control series, represents a high-performance solution designed to enhance the efficiency and reliability of industrial drive systems. This board is categorized under Drives and belongs to the Drive Board subcategory, ensuring its specialized application in drive systems.

The IS200DAMCG1A operates as a crucial component within drive systems, specifically engineered to amplify gate drive signals for Insulated Gate Bipolar Transistors (IGBTs). Its primary function is to provide precise and efficient gate drive amplification, which is essential for the optimal operation of IGBTs. By doing so, it ensures that the IGBTs function with minimal losses, leading to improved overall system performance.

This Gate Drive Amplifier board is equipped with a frame rate of 250, highlighting its capability to handle high-speed operations efficiently. The frame rate indicates the frequency at which the board can process signals, making it suitable for applications that require rapid and accurate signal amplification.

A standard configuration for the IS200DAMCG1A includes three boards per drive, signifying its integration within a larger drive system. Each drive utilizes three of these boards to ensure comprehensive amplification across all phases. The board supports one IGBT per phase leg, demonstrating its role in managing the drive’s phase operations. This design ensures that each phase leg receives precise gate drive signals, contributing to the overall stability and performance of the drive system.

Additionally, the IS200DAMCG1A features four LEDs, which serve as indicators for various operational statuses. These LEDs provide visual feedback on the board’s performance, allowing for easy monitoring and troubleshooting. The presence of these indicators aids in maintaining the drive system’s reliability by providing real-time status updates.

The IS200DAMCG1A is part of General Electric’s Drive Control series, known for its robustness and high-quality performance in industrial applications. The Drive Control series is engineered to meet the demanding requirements of modern industrial systems, ensuring durability, reliability, and efficiency. The inclusion of the IS200DAMCG1A within this series underscores its capability to meet stringent industrial standards.

In summary, the General Electric IS200DAMCG1A Gate Drive Amplifier board is a technically advanced component designed for precise gate drive signal amplification in industrial drive systems. Its integration within the Drive Control series, coupled with its high frame rate and efficient IGBT management, makes it a critical element for enhancing drive system performance. The board’s configuration, featuring three boards per drive and one IGBT per phase leg, ensures comprehensive and reliable operation. The inclusion of four LEDs for operational status monitoring further enhances its utility, making it a dependable choice for industrial applications demanding high performance and reliability.
