IS200DRTDH1A | General Electric Compact RTD Terminal Board

Description

The IS200DRTDH1A is a PCB (printed circuit board) component developed by GE as part of their Mark VI Speedtronic system, designed for the management of gas and steam turbines. The acronym "DRTD" signifies DIN-Rail Resistance Temperature Detector.

RTD terminal boards serve as resistance temperature detectors, offering galvanic isolation or transient protection for the connected system. Depending on the configuration and type, RTDs can provide simplex, dual, or TMR (Triple Modular Redundant) control.

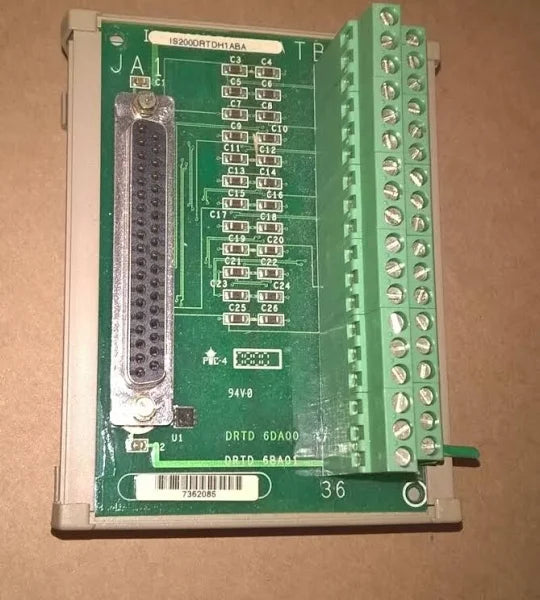

The IS200DRTDH1A is designed for DIN-rail mounting, featuring a DIN rail carrier encompassing all sides. Marked with codes like PLC-4, 6DA00, and 6BA01, the board also includes a barcode attached near one short edge for identification purposes.

Despite its minimalistic design, the IS200DRTDH1A comprises essential components, including a d-shell female connector with screw connections for cable attachment, a euro-block style two-level terminal block, an integrated circuit, and two rows of capacitors. Additionally, the board features drilled holes in two corners to facilitate installation.

Technical Specifications

Information About IS200DRTDH1A

The General Electric IS200DRTDH1A is a high-quality Din Rail Terminal Board designed for Resistance Temperature Detector (RTD) applications. Part of the advanced Mark VI series, this terminal board is engineered to provide precise and reliable temperature measurement capabilities, essential for various industrial processes. Manufactured in the United States, the IS200DRTDH1A reflects General Electric's commitment to excellence and innovation in industrial automation technology.

The IS200DRTDH1A features eight channels, allowing for multiple RTD inputs to be connected simultaneously. This multi-channel capability is crucial for applications requiring the monitoring of multiple temperature points within a system. Each channel ensures accurate temperature readings, enhancing the overall control and monitoring of industrial processes.

This terminal board operates within a voltage span of 0.3532 to 4.054 V, providing a wide range for accurate temperature detection and measurement. This span ensures that the board can accommodate various RTD types and configurations, offering flexibility for different application requirements. The ability to handle a broad voltage range makes the IS200DRTDH1A a versatile solution for diverse industrial environments.

One of the key specifications of the IS200DRTDH1A is its maximum lead resistance capability, which is 15 ohms for two-way cable resistance. This feature ensures that the board can maintain accuracy and reliability even with longer cable runs, which are common in large industrial setups. By accommodating higher lead resistance, the IS200DRTDH1A ensures consistent and precise temperature measurements across the entire system.

Designed for DIN rail mounting, the IS200DRTDH1A offers easy installation and integration into existing control systems. The DIN rail mounting feature simplifies the setup process, allowing for secure and efficient placement within control cabinets. This design also facilitates easy maintenance and replacement, reducing downtime and enhancing operational efficiency.

The IS200DRTDH1A is part of the Mark VI series, known for its advanced control and automation solutions. The integration of this terminal board into the Mark VI system enhances its functionality, providing robust and reliable temperature measurement capabilities. The Mark VI series is designed to meet the demanding requirements of modern industrial applications, and the IS200DRTDH1A upholds these high standards.

Manufactured in the United States, the IS200DRTDH1A adheres to stringent quality control measures, ensuring high performance and durability. General Electric's focus on quality and reliability is evident in the construction and design of this terminal board, making it a dependable choice for critical industrial applications.

In summary, the General Electric IS200DRTDH1A Din Rail Terminal Board for RTD applications is a high-performance component designed for accurate and reliable temperature measurement. With eight channels, a wide voltage span, and the ability to handle high lead resistance, it offers versatile and precise monitoring capabilities. The DIN rail mounting feature ensures easy installation and integration, while its manufacture in the USA guarantees high quality and durability. As part of the Mark VI series, the IS200DRTDH1A enhances the functionality of industrial control systems, making it an essential component for efficient and reliable temperature management in various industrial environments.
