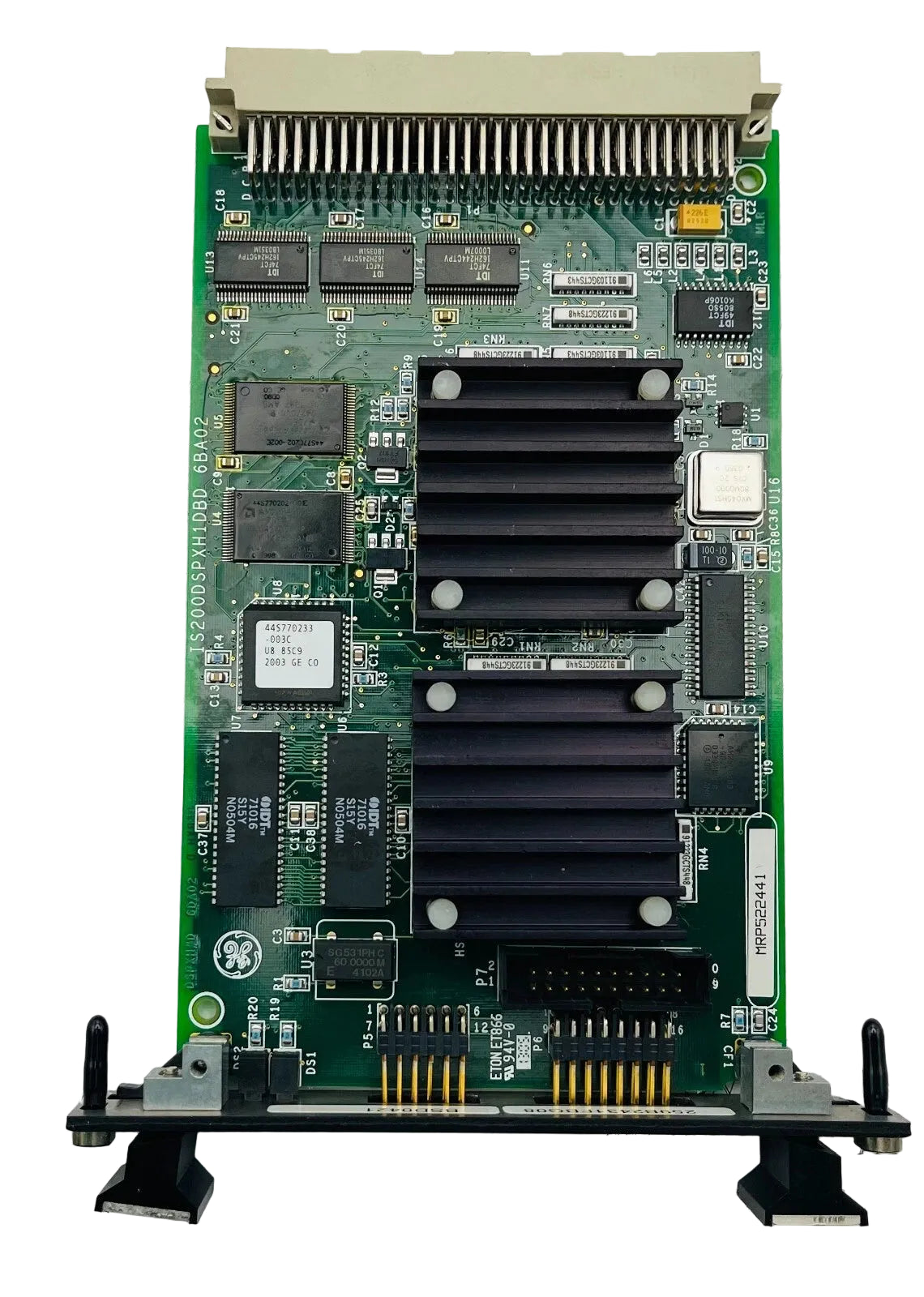

IS200DSPXH1D | General Electric DSP Control Card

Description

The IS200DSPXH1D is a Digital Signal Processor Control Board (DSPX) manufactured by GE. It integrates processing, interface, and logic functions, along with an Application Specific Integrated Circuit (ASIC) designed for specific applications. Additionally, this model includes standard memory components essential for its operation.

Technical Specifications

Information About IS200DSPXH1D

The General Electric IS200DSPXH1D is a highly specialized drive board engineered for use in advanced industrial drive systems. As part of the General Electric Drives category, this microprocessor-based digital signal processor (DSP) board is designed to deliver precise control and reliable performance in demanding industrial applications. The IS200DSPXH1D is a critical component within drive systems, responsible for processing complex control algorithms and managing various electrical parameters to ensure smooth and efficient operation.

The IS200DSPXH1D, known by its functional acronym DSPX, is built to be integrated into a control rack, where it serves as the core processing module for the drive system. Its microprocessor-based architecture allows it to execute complex digital signal processing tasks with high speed and accuracy, making it essential for applications that require precise control of motor speed, torque, and other critical parameters. The DSPX module is particularly well-suited for applications where high-performance control and rapid response to changing conditions are necessary.

This drive board features a conformal coating, denoted by the group variation H1D, which provides an additional layer of protection against environmental factors such as moisture, dust, and chemical contaminants. This coating enhances the durability and longevity of the board, ensuring reliable operation even in harsh industrial environments. The conformal coating also helps protect the sensitive electronic components from corrosion and electrical shorts, making the IS200DSPXH1D a robust choice for long-term use in challenging conditions.

The board's external dimensions are compact, measuring D .5 inches X W 5 inches X L 6.5 inches, which allows for easy integration into existing control racks without requiring significant modifications. This compact design is ideal for installations where space is limited, yet high-performance processing is required. Despite its small size, the IS200DSPXH1D packs a powerful processing capability, making it a crucial part of the drive control system.

The IS200DSPXH1D is equipped with regulators for field voltage and field current, enabling precise control over these critical parameters. This functionality is vital for maintaining the stability and efficiency of the drive system, ensuring that motors operate within their specified parameters and reducing the risk of damage due to overvoltage or overcurrent conditions. The board's ability to regulate these parameters with high accuracy contributes to the overall performance and reliability of the drive system.

Additionally, the IS200DSPXH1D features a printed wiring board (PWB) design, which enhances the reliability of the electrical connections and reduces the likelihood of wiring errors during installation. The PWB design also contributes to the board's compact size and ensures that all components are securely mounted and electrically isolated, further improving the board's durability and performance.

In summary, the General Electric IS200DSPXH1D DSPX drive board is a high-performance, microprocessor-based control module designed for use in demanding industrial drive systems. Its compact design, robust conformal coating, and advanced digital signal processing capabilities make it an ideal choice for applications requiring precise control and reliable operation in harsh environments. Whether used in new installations or as an upgrade to existing systems, the IS200DSPXH1D is engineered to deliver consistent, high-quality performance, ensuring the smooth and efficient operation of your industrial drive systems.

Manufacturer information

General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
