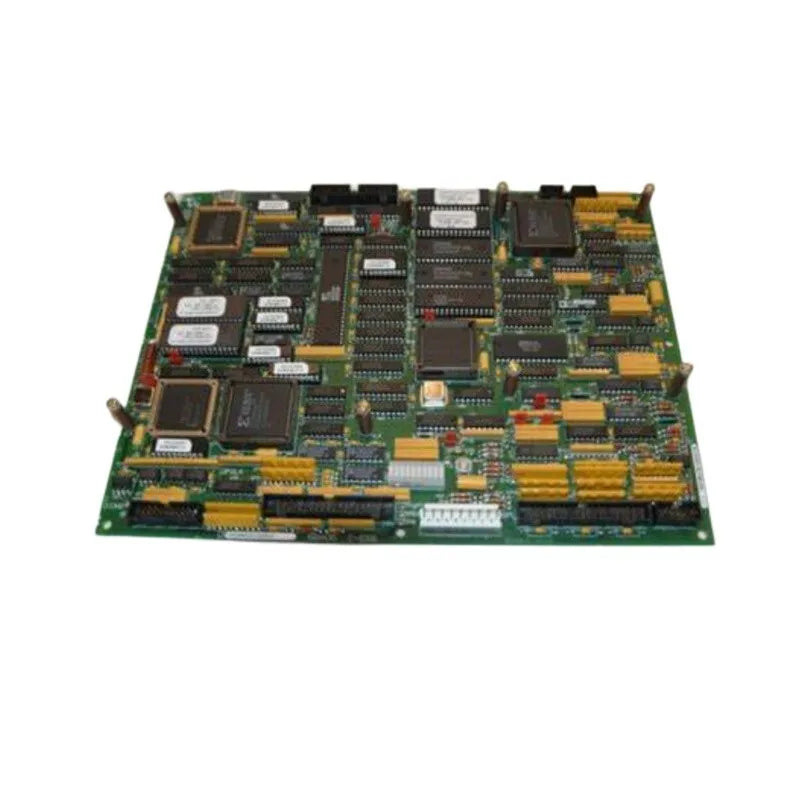

IS200DSPXH2B | General Electric Digital Signal Processor Control Board
- Regular price
- $7,785.00
- Sale price
- $7,785.00
- Regular price
-
Do you need more quantity?
Product Description P/N: IS200DSPXH2B
Description
The IS200DSPXH2B is a GE circuit board designed for integration into the Speedtronic Mark VI line, a system tailored for controlling industrial gas or steam turbine systems. The Mark VI system features a triple modular redundant design, a Windows-based NT Operating system, and Ethernet networking capabilities.
Functioning as a Digital Signal Processor Control Board, the IS200DSPXH2B is available in various versions, all equipped with a high-performance digital signal processor (DSP) and an application-specific integrated circuit (ASIC). These components execute custom logic functions utilizing different types of memory, including SRAM, FLASH, and add-only memory.
Technical Specifications
Part Number |
IS200DSPXH2B |
Manufacturer |
General Electric |
Series |
EX2100 |
Product Type |
Digital Signal Processor Control Board |
Availability |
In Stock |
Country/Region of Manufacture |
United States (USA) |
Manual |
GEI-100267B |
Information About IS200DSPXH2B
The IS200DSPXH2B is a digital signal processor control board manufactured by GE for integration into the Speedtronic Mark VI product line. The Mark VI system is a later iteration of the Speedtronic series, engineered to provide control functionality for industrial gas or steam turbine systems. It features a triple modular redundant architecture, operates on a Windows-based NT operating system, and facilitates Ethernet networking capabilities.
Functioning as a Digital Signal Processor Control Board, the IS200DSPXH2B exists in multiple iterations, each equipped with a high-performance digital signal processor (DSP) and an application-specific integrated circuit (ASIC). The ASIC is tailored to execute customized logic operations utilizing various memory types, including Static Random Access Memory (SRAM), FLASH memory, and add-only memory.
The physical design of the IS200DSPXH2B incorporates multiple integrated circuits, with two of them shielded by protective covers affixed to the board's surface. Additionally, the board comprises resistors, resistor network arrays, capacitors, diodes, transistors, and multiple input/output (I/O) connectors. Two light-emitting diode (LED) indicators and a subset of the I/O ports are situated on the front faceplate, each bearing individual labels denoting their respective functions. These labels are duplicated on the board's surface alongside their reference designators. Furthermore, the board features an additional vertical I/O port and a backplane connector positioned on the opposite edge from the front faceplate.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
