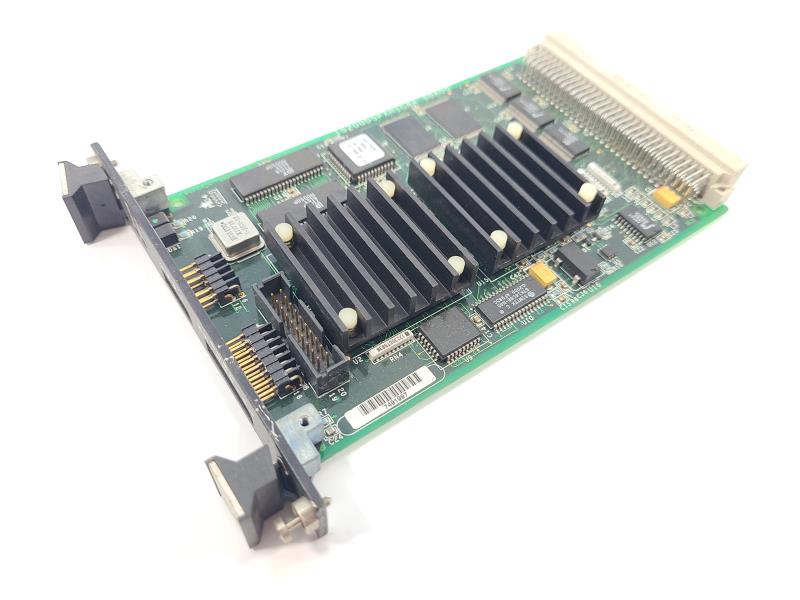

IS200DSPXH2D | General Electric DSP Control Board Mark VI

Description

Technical Specifications

Information About IS200DSPXH2D

The IS200DSPXH2D is a Digital Signal Processor (DSP) Control Board manufactured by General Electric, specifically designed for the EX2100 series of control systems. This board plays a critical role in industrial automation and control, providing advanced digital signal processing capabilities that are essential for managing and optimizing complex industrial processes. The IS200DSPXH2D is built using surface mount technology, ensuring a compact, reliable, and efficient design that meets the rigorous demands of modern industrial environments.

Measuring 15.9 cm in height and 17.8 cm in width, the IS200DSPXH2D is a moderately sized component, designed to fit seamlessly into the existing architecture of EX2100 systems. Its size allows for easy integration into control cabinets or other confined spaces without sacrificing performance or functionality. Despite its compact dimensions, this DSP Control Board is packed with features that enhance its ability to process and manage signals within industrial systems, making it an indispensable component in a wide range of applications.

One of the key technical specifications of the IS200DSPXH2D is its common mode voltage range of ±5 V. This range allows the board to handle a variety of input signals, making it versatile enough to be used in different industrial settings. The ability to manage a common mode voltage range of ±5 V ensures that the board can effectively process signals even in environments with fluctuating or challenging electrical conditions. This capability is particularly important in industrial applications where maintaining signal integrity is critical for the overall performance and safety of the system.

The IS200DSPXH2D is equipped with six analog voltage inputs, allowing it to process multiple signals simultaneously. This feature is essential for applications that require real-time monitoring and control of various parameters, such as voltage, current, temperature, and more. By providing multiple input channels, the board enables precise and coordinated control of industrial processes, ensuring that all variables are accurately monitored and adjusted as needed. This level of control is crucial for maintaining the efficiency, reliability, and safety of industrial operations.

Designed to operate within a temperature range of -30 to +65 degrees Celsius, the IS200DSPXH2D is built to withstand harsh industrial environments. Whether exposed to extreme cold or heat, this board is engineered to perform consistently, ensuring that the control system remains operational even under challenging conditions. The wide operating temperature range also makes the IS200DSPXH2D suitable for use in a variety of industrial settings, from outdoor installations to temperature-controlled facilities, providing flexibility and reliability across different applications.

The use of surface mount technology in the construction of the IS200DSPXH2D enhances its durability and reliability. Surface mount components are typically smaller and more robust than their through-hole counterparts, allowing for higher-density circuit designs and improved electrical performance. This technology also contributes to the board's ability to resist mechanical stress, vibration, and other physical challenges commonly encountered in industrial environments. As a result, the IS200DSPXH2D is designed for long-term use, reducing the need for frequent maintenance or replacement and thereby lowering the total cost of ownership.

As part of the EX2100 series, the IS200DSPXH2D is designed to integrate seamlessly with other components within the series, providing a cohesive and efficient control solution. The EX2100 series is known for its advanced control features and reliability, making it a preferred choice for industrial operators seeking to optimize their control systems. The IS200DSPXH2D contributes to this reputation by delivering precise signal processing and control capabilities that enhance the overall performance of the system.

In summary, the IS200DSPXH2D Digital Signal Processor Control Board is a highly capable and reliable component designed by General Electric for the EX2100 series. With its advanced signal processing capabilities, common mode voltage range of ±5 V, six analog voltage inputs, and robust construction, this board is essential for managing and optimizing complex industrial processes. Its compact size, wide operating temperature range, and use of surface mount technology ensure that it can withstand the demands of modern industrial environments while delivering consistent and precise control. The IS200DSPXH2D is a key element in ensuring the efficiency, reliability, and safety of industrial control systems, making it an invaluable asset in a wide range of applications.
