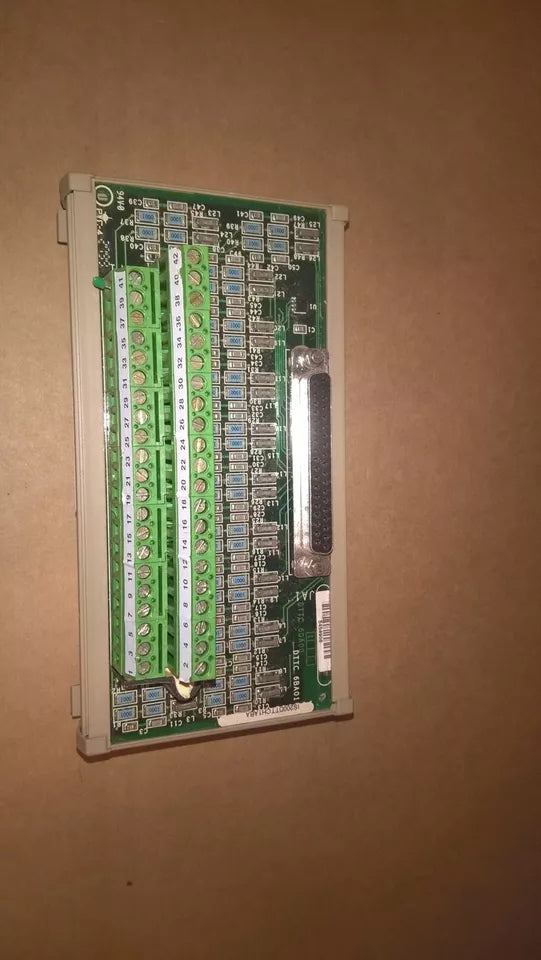

IS200DTTCH1A | General Electric Printed Circuit Board

Description

The GE Mark VI IS200DTTCH1A is a printed circuit board created by GE for the Mark VI series. This board is part of GE's speedtronic series.

Technical Specifications

Information About IS200DTTCH1A

The General Electric IS200DTTCH1A is a highly specialized Simplex Thermocouple Input Board designed for use in the Mark VI series of drives. Categorized under Drives and subcategorized as a Drive Board, this product is engineered for precise thermocouple signal input and processing, making it an essential component for temperature monitoring and control in industrial applications.

With a robust design tailored for DIN-rail mounting, the IS200DTTCH1A offers seamless integration into existing industrial setups. The board's dimensions are compact, measuring 2.8 cm in height and 8.6 cm in length, which facilitates easy installation and space-efficient deployment. Despite its small size, it delivers powerful performance and reliable operation.

The IS200DTTCH1A is equipped with 12 input channels, allowing for simultaneous monitoring of multiple thermocouple signals. This multi-channel capability enhances its versatility, making it suitable for complex industrial processes requiring precise temperature measurement across various points. Each channel can accurately read signals within a span of -8 mV to +45 mV, ensuring compatibility with a wide range of thermocouples and providing detailed and accurate temperature data.

Operating within a temperature range of -30 to 65 ºC, the IS200DTTCH1A is designed to perform reliably in harsh industrial environments. Its robust construction and high-quality components ensure long-term durability and stable operation even under extreme conditions. This makes it ideal for applications where consistent and accurate temperature monitoring is critical for maintaining process integrity and safety.

The board operates on a 24 V dc power supply, a standard in industrial settings, which simplifies power management and integration with other equipment. The efficient power usage of the IS200DTTCH1A contributes to lower operational costs while maintaining high performance.

One of the standout features of the IS200DTTCH1A is its precise signal processing capability. The advanced circuitry ensures minimal signal interference and noise, providing accurate and reliable temperature readings. This precision is crucial for applications where temperature variations can significantly impact process outcomes, such as in chemical processing, manufacturing, and power generation.

The IS200DTTCH1A's design also includes protective features to safeguard against electrical disturbances and potential faults. These protections enhance the board's reliability, ensuring continuous and uninterrupted operation. The durable construction materials are chosen to withstand wear and environmental stress, further extending the board's operational life.

General Electric has provided comprehensive documentation for the IS200DTTCH1A, aiding technicians and engineers in the installation, configuration, and maintenance of the board. This support ensures that users can fully leverage the board's capabilities and integrate it effectively into their systems.

In summary, the General Electric IS200DTTCH1A Simplex Thermocouple Input Board is an advanced and reliable component for the Mark VI series of drives. Its 12-channel input, precise signal processing, and robust design make it a valuable asset for industrial temperature monitoring and control. The board's compact size, DIN-rail mounting capability, and efficient power usage ensure ease of integration and operation. With its ability to perform reliably in harsh conditions and its comprehensive protective features, the IS200DTTCH1A meets the high standards expected from General Electric products, providing users with a dependable and efficient solution for their temperature monitoring needs.
