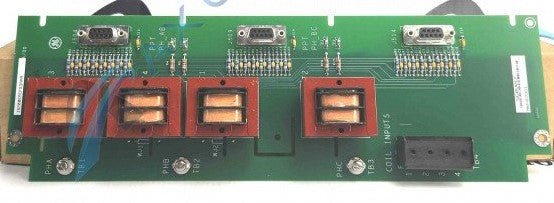

IS200EACFG3A | General Electric Exciter AC Feedback Board
- Regular price
- $1,739.00
- Sale price
- $1,739.00
- Regular price
-
Do you need more quantity?
Product Description P/N: IS200EACFG3A
Description
The IS200EACFG3A Exciter AC Feedback Board represents the final iteration among the three G versions of the IS200EACF board. This G3 variant is engineered to withstand input voltages of up to 1300 VRMS, with the transformers typically providing a nominal output of 1.6 VRMS.
Featuring four voltage test rings labeled TP1, TP2, TP3, and TP4, the IS20EACFG3A module facilitates phase voltage measurements. TP1 and TP2 collectively measure Line voltage AB, TP3 and TP4 measure Line voltage BC, and TP4 and TP1 measure Line voltage CA.
Equipped with three screw terminals labeled TB1, TB2, and TB3, each terminal is dedicated to distinct signals and is connected to potential phase transformers. TB1 corresponds to PPT phase A, TB2 to PPT phase B, and TB3 to PPT phase C.
Technical Specifications
Abbreviation |
EACF |
Manuals |
GEI-100465 and GEH-6632 |
Manufacturer |
GE Energy |
On-board Connection Points |
RS232 - J504, J509, J514 & Terminals 1-4 at TB4 |
Part / Model Number |
IS200EACFG3A |
Product Type |
AC Feedback Board |
Series |
EX2100 Excitation Control System |
Weight |
2lbs 4oz |
Information About IS200EACFG3A
The IS200EACFG3A, an Exciter AC Feedback Board, represents the final iteration among the three G versions of the IS200EACF board. Engineered to accommodate an input voltage of up to 1300 VRMS, this G3 variant demonstrates robust electrical resilience. Typically, the onboard transformers furnish a nominal voltage of 1.6 VRMS, ensuring stable operational performance.
Featuring four voltage test rings, denoted as TP1, TP2, TP3, and TP4, this module facilitates precise phase voltage measurements. Conventionally, these rings are grouped in pairs to ascertain Line voltage outputs effectively. TP1 and TP2 jointly capture the Line voltage AB, TP3 and TP4 detect the Line voltage BC, while TP4 and TP1 gauge the Line voltage CA, enabling comprehensive voltage analysis.
Moreover, the IS200EACFG3A boasts three screw terminals, namely TB1, TB2, and TB3, each designated for distinct signal inputs. These terminals are individually linked to potential phase transformers (PPT). Specifically, TB1 interfaces with PPT phase A, TB2 connects to PPT phase B, and TB3 establishes a connection with PPT phase C. This configuration ensures seamless integration with phase transformers, facilitating efficient signal processing and transmission within the excitation control system.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
