IS200EBRGH2A | General Electric EX2100e bridge and protection interface board (EBRG)
- Regular price
- $7,509.00
- Sale price
- $7,509.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IS200EBRGH2A
Description

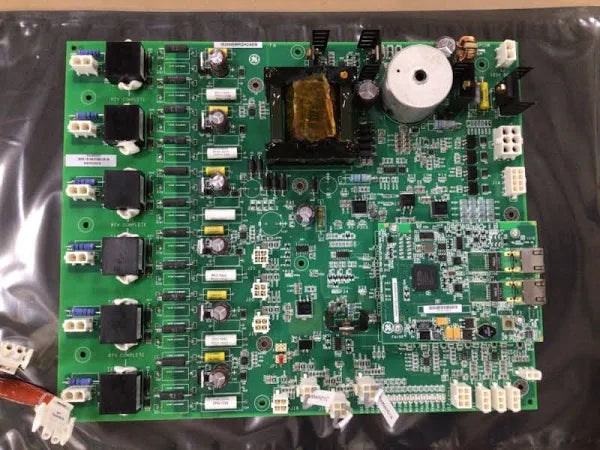

The General Electric IS200EBRGH2A is an Exciter Bridge Interface Board designed for the EX2100e excitation system. The IS200EBRGH2A (EBRG) provides control-to-power-bridge interfacing and protection functions for thyristor-based excitation hardware. Powered from a 125 VDC source, it supports stable operation in demanding industrial drive and excitation applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Drives |
| Part Number | IS200EBRGH2A |
| Subcategory | Drive Board |
| Series | EX2100e |
| Board Group | EBRGH2 |
| Board Type | Bridge and Protection Module |
| Functional Acronym | EBRG |
| Interfaces | Control to the power bridge |
| Number of EBRGs per PCM | One |
| Power Source | 125 VDC from EDIS |
| Power Supply | 125 VDC |
| Thyristor Systems Supported | 42 mm, 52 mm, 77 mm |
| System Application | EX2100e excitation and protection |
| Construction | Industrial-grade interface and protection board |
| Integration Notes | Does not interface with Controller C |
Information About IS200EBRGH2A
The IS200EBRGH2A is part of GE’s EX2100e architecture and functions as a Bridge and Protection Module within the EBRGH2 board group. Serving as the primary interface between the control system and the power bridge, the board transmits control signals essential for regulating and protecting excitation and drive operations. It supports thyristor systems sized 42 mm, 52 mm, and 77 mm, allowing use across a wide range of EX2100e power conversion configurations. Each Power Conversion Module (PCM) incorporates one EBRG, simplifying system layout and ensuring consistent communication between control electronics and high-power thyristor assemblies. The board receives its 125 VDC supply from the EDIS module and is engineered to function without an interface to Controller C, as noted in EX2100e system specifications.
Key Features:
- Bridge and protection interface: Provides control signal interfacing to the power bridge.
- EX2100e compatibility: Designed specifically for GE excitation and drive subsystems.
- 125 VDC power input: Supplied by EDIS for stable and consistent operation.
- Supports multiple thyristor sizes: Compatible with 42, 52, and 77 mm thyristor systems.
- Single-board-per-PCM design: One EBRG per power conversion module for streamlined architecture.
- EBRG functional architecture: Belongs to the EBRGH2 board group for standardized integration.
- Protection functionality: Assists in safe operation of excitation and drive switching devices.
The IS200EBRGH2A delivers the reliability and precision required for bridge-interface and protection boards in EX2100e excitation systems.
