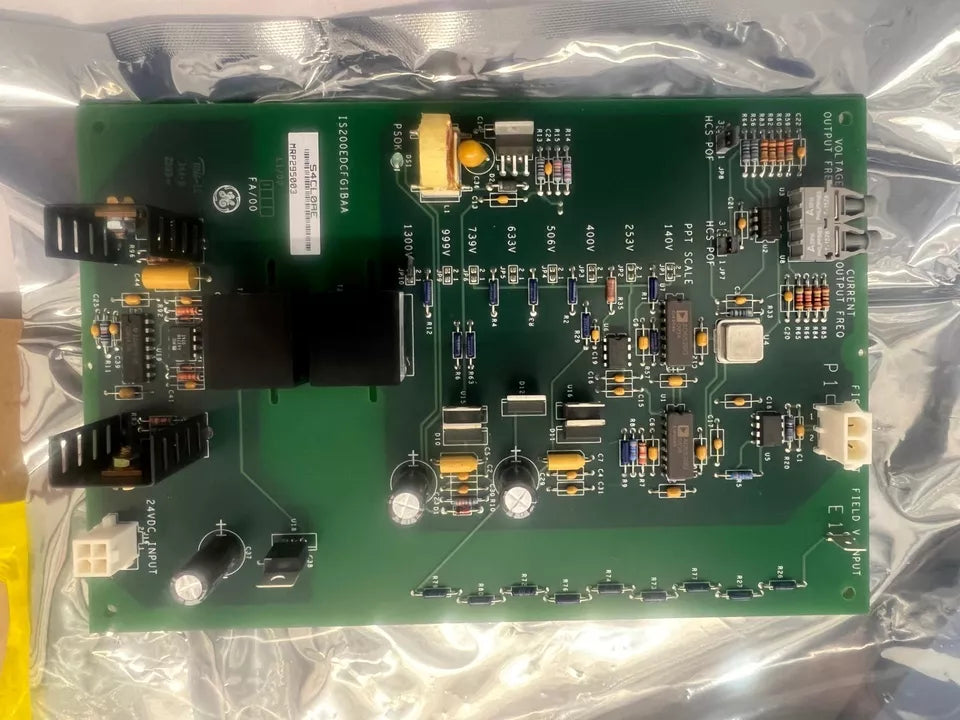

IS200EDCFG1B | General Electric EDCF Model and I/O Terminal Board
- Regular price
- $7,745.00
- Sale price
- $7,745.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: IS200EDCFG1B
Description
EX2100 model IS200EDCFG1B is an EDCF model and is an I/O terminal board, the field voltage is measured by seven selector settings to scale down the bridge, this process specifically depends on the application type of the bridge.
Technical Specifications
| Brand | General Electric |
| Fiber Optic Cable Type | Plastic Optical Fiber (POF) and Hard Clad Silica (HCS) |
| Part Number | IS200EDCFG1B |
| Field V Input Indicators | 9; R26, R27, R77, R73, R74, R76, R72, R80, and R79 |
| LED Light Indicators | 1, Power Supply Indicator |
| Power Potential Transformer Scale | 140-1300 V |
Information About IS200EDCFG1B
Exciter DC Feedback Board IS200EDCFG1B is part of the Excitation Controller series produced by General Electric Company USA. This model is connected to a DC shunt which provides the output feedback. The IS200EDCFG1B board is part of the high voltage interface system. This model is also part of the I/O terminal boards, and this board mainly controls the DC outputs and feedback, as well as current voltages.
The field voltage feedback circuit of the EDCF model provides a total of seven settings on the selector, these settings scale down the bridge voltage, but this all depends on the application that the bridge is set to. The fiber-optic cables that are connected to the IS200EDCFG1B model provide an isolated voltage between the EISB board and the EDCF board, along with high noise immunity.
The field current feedback from your IS200EDCFG1B model is measured across the DC shunt that is located at the SCR bridge. When the field current is running as it should it will generate a low-level signal, that has a maximum value of 500 MV, which will be the input to a different amplifier.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
