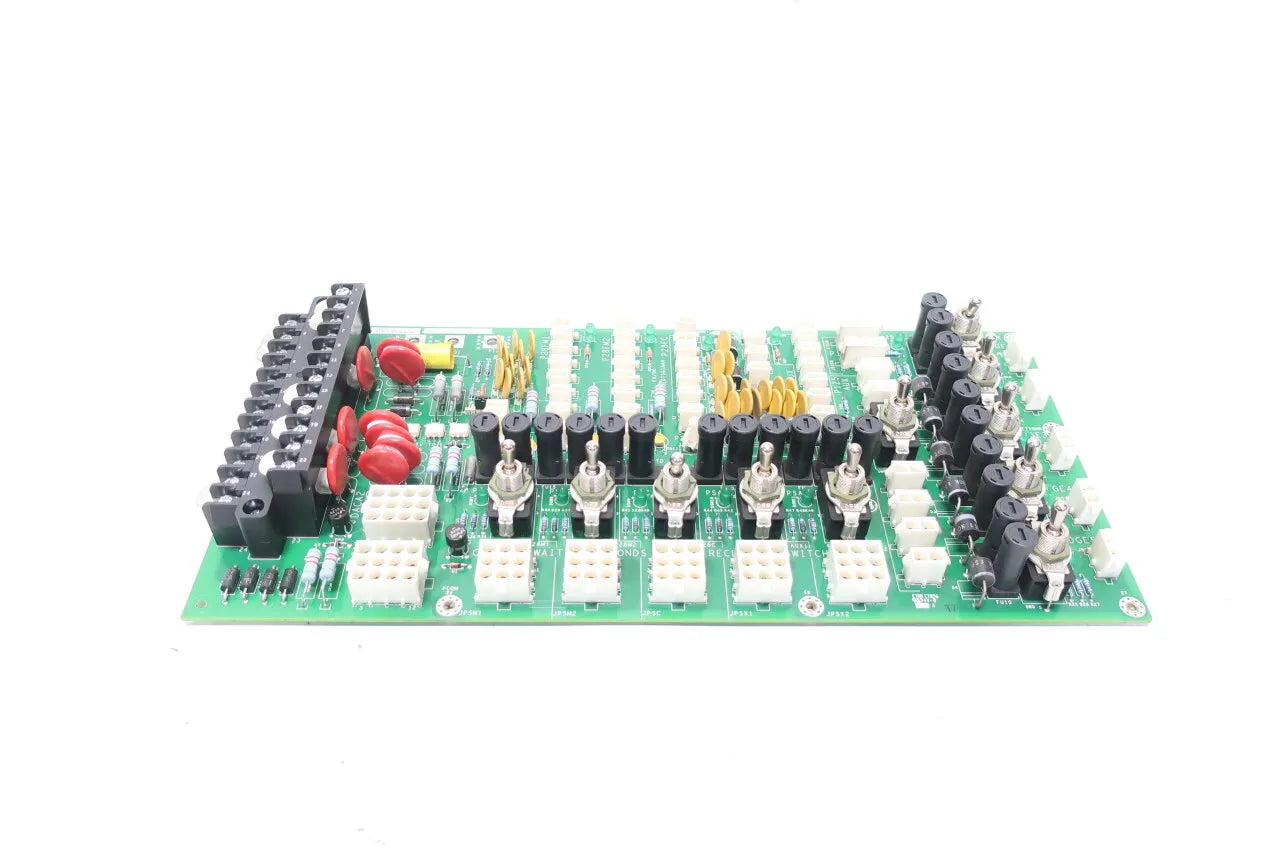

IS200EDISG1AAA | General Electric Exciter Power Distribution Board
- Regular price
- $7,837.00
- Sale price
- $7,837.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IS200EDISG1AAA
Description
The General Electric IS200EDISG1AAA is a Mark VI Power Distribution Module designed to distribute and manage power for critical control components within industrial turbine automation systems. Operating with a 125 VDC power supply, it delivers regulated power to I/O boards, controllers, and bridge rectifier assemblies while supporting reliable system operation. Engineered for the Speedtronic Mark VI platform, the module is also compatible with EX2100 excitation systems and selected distributed control system applications.
Technical Specifications
| Brand | General Electric |
| Functional Acronym/Abbreviation | EDIS |
| Part Number | IS200EDISG1AAA |
| Model Type | Power Distribution Module |
| Number of Bridge Switches | 5 |
| Power Supply | 125 VDC |
| Series | Mark VI IS200 |
| Storage Temperature | -40 to +70 °C |
Information About IS200EDISG1AAA
The IS200EDISG1AAA is a General Electric Power Distribution Module developed for the Speedtronic Mark VI turbine control platform, where it serves as a central power distribution interface for multiple control system components. The module accepts both alternating current and direct current input power, conditioning and distributing electrical power to controllers, input/output boards, bridge rectifier modules, and other connected hardware throughout the control system. Designed for integration with Mark VI and EX2100 systems, it also supports distributed control system architectures utilizing Ethernet Modbus communication protocols. The module incorporates eleven switches, including five dedicated bridge switches and multiple power supply management switches, while supporting simplex, dual-redundant, and triple modular redundant configurations to maximize system availability and operational reliability.
Key Features:
- Mark VI System Compatibility: Designed specifically for General Electric Speedtronic Mark VI turbine control systems.
- 125 VDC Power Distribution: Supplies regulated power to controllers, I/O modules, and auxiliary hardware.
- Dual Power Acceptance: Supports both alternating current and direct current input sources.
- Five Bridge Switches: Includes dedicated bridge switches for flexible power distribution management.
- Extensive Connectivity: Equipped with fifty-two female connectors, including five nine-pin interface connectors.
- Multiple Redundancy Modes: Supports simplex, dual-redundant, and triple modular redundant system architectures.
- EX2100 Integration: Compatible with General Electric EX2100 excitation control systems and related applications.
- Industrial-Grade Construction: Designed for dependable long-term operation in demanding turbine control environments.
The IS200EDISG1AAA delivers the reliability and precision required for industrial power distribution, turbine control, and redundant automation system applications.
