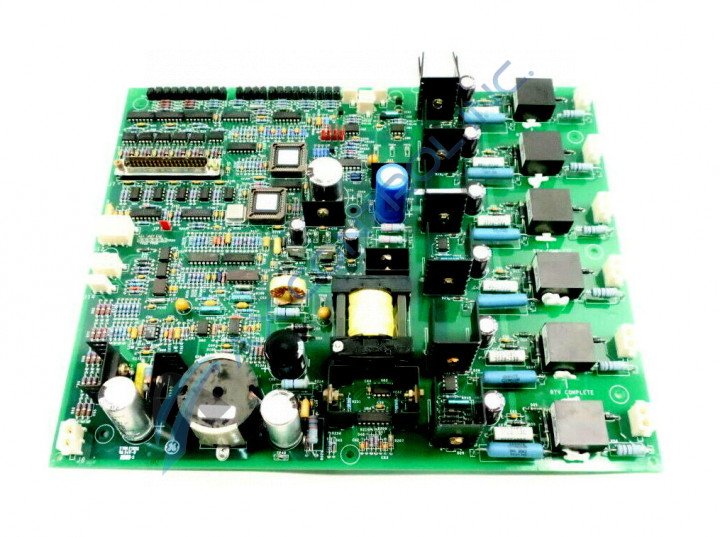

IS200EGPAG1B | General Electric EX2100 gate pulse amplifier board (EGPA) for power-bridge interfacing
- Regular price
- $13,099.00
- Sale price
- $13,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IS200EGPAG1B
Description
The General Electric IS200EGPAG1B is a Gate Pulse Amplifier Board designed for EX2100 excitation control systems. The IS200EGPAG1B (EGPA) amplifies gate pulses and interfaces critical feedback—including conduction current, temperature, and airflow—between the controller and the power bridge. Its configurable jumpers and on-board indicators support precise operation and troubleshooting.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Board Type | Gate Pulse Amplifier Board |
| Part Number | IS200EGPAG1B |
| Functional Acronym | EGPA |
| Series / Product Line | EX2100 Excitation Control – Exciter System |
| Configurable Hardware | Five on-board jumpers |
| Primary Function | Interface control signals to the power bridge |
| Feedback Types | Current conduction, temperature, and airflow |
| LED Indicators | Green operational LED, red fault LED |
| Notable Components | Gate-pulse amplification circuitry |
| Integration | Designed for direct installation within EX2100 subsystems |
| Construction | Industrial-grade PCB assembly |
Information About IS200EGPAG1B
The IS200EGPAG1B is part of GE’s EX2100 Excitation Control product line and provides the essential interface between control logic and the power bridge. Designed to amplify gate pulses, the board ensures that power semiconductor devices receive accurate firing signals for stable and efficient excitation control. Its five on-board jumpers allow hardware-level configuration to meet application-specific requirements within the EX2100 architecture. The board also includes green and red LED indicators for real-time operational status and fault signaling. In addition to gate-pulse interfacing, the IS200EGPAG1B supports conduction-current feedback, temperature monitoring, and airflow input routing, enabling comprehensive protective and operational feedback for the excitation system.
Key Features:
- Gate pulse amplification: Conditions and amplifies firing pulses for power-bridge devices.
- EX2100 integration: Designed specifically for GE excitation control systems.
- Five configurable jumpers: Supports hardware customization for various system setups.
- Dual LED indicators: Green (normal operation) and red (fault status) for diagnostics.
- Feedback interfacing: Handles conduction-current, thermal, and airflow signals.
- Robust construction: Engineered for high-reliability industrial operation.
- Standardized layout: Enables quick installation and replacement in EX2100 modules.
The IS200EGPAG1B delivers the reliability and precision required for gate-pulse and feedback-interface boards in excitation control systems.
