IS200EHPAG1D | General Electric Pulse Amplifier

Description

The IS200EHPAG1D is a General Electric Pulse Amplifier designed to enhance and amplify pulse signals in industrial control systems. It provides precise signal amplification, ensuring accurate data transmission and improved signal strength. This amplifier supports reliable operation and integration in complex automation setups, contributing to overall system performance and stability.

Technical Specifications

Information About IS200EHPAG1D

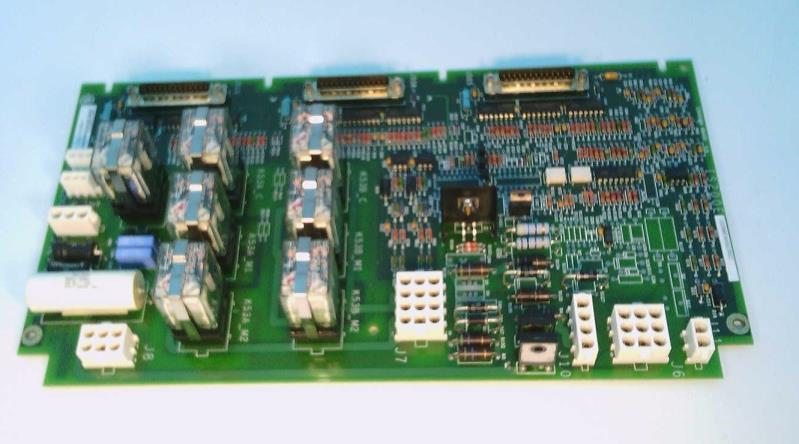

The IS200EHPAG1D from General Electric is a high-performance Pulse Amplifier designed for use in the EX2100 Excitation Controller series. This board, categorized under drives, serves as an Exciter High Voltage Pulse Amplifier (EHPA), providing essential amplification for pulse signals in excitation control systems.

The IS200EHPAG1D board is engineered to manage high voltage pulse amplification with precision and reliability. It is specifically designed to enhance the control and performance of excitation systems by amplifying pulse signals to the required levels for effective excitation management. This functionality is crucial for maintaining the stability and efficiency of excitation systems in various industrial applications.

The board features a D-Sub connector type, which facilitates secure and reliable connections with other system components. This type of connector is widely used for its robustness and ease of integration, ensuring that the IS200EHPAG1D can be seamlessly incorporated into existing systems.

The IS200EHPAG1D includes electrolytic capacitors made from polyester vinyl or ceramic materials. These capacitors are selected for their stability and reliability in high voltage applications, contributing to the overall performance and durability of the board. The use of these materials helps to ensure that the board can handle the demanding conditions of high voltage amplification with minimal risk of failure.

The board is designed to accommodate potential connections to a daughterboard, providing additional flexibility and functionality within the control system. This design feature allows for expanded capabilities and integration with other system components as needed.

In terms of thermal management, the IS200EHPAG1D is equipped with six heat sink components. These heat sinks are crucial for dissipating heat generated during operation, thereby protecting the board from overheating and ensuring consistent performance. Additionally, the board includes four standoffs located in the upper right quadrant, which provide mechanical support and proper spacing for effective heat dissipation and stability.

As a version G1 board in the EX2100 series, the IS200EHPAG1D adheres to the advanced design standards of the Mark VI system, ensuring high reliability and performance in demanding control environments. Its role as a Pulse Amplifier is integral to the effective management of excitation systems, supporting stable and efficient operation across a range of industrial applications.

In summary, the IS200EHPAG1D Pulse Amplifier from General Electric is a robust and versatile component designed for high voltage amplification in excitation control systems. Its D-Sub connectors, high-quality capacitors, heat sink components, and daughterboard compatibility make it a key asset for maintaining the performance and reliability of industrial excitation systems.
