Product Description P/N: IS200ISBDG1A
Description
The IS200ISBDG1A is a board component designed for the Mark VI system, a gas/steam turbine management system developed by General Electric. As one of the final iterations of the Speedtronic series, the Mark VI incorporated advancements such as Ethernet communications and a PC-based operator interface, building upon the legacy of earlier systems like the Mark IV and Mark V.

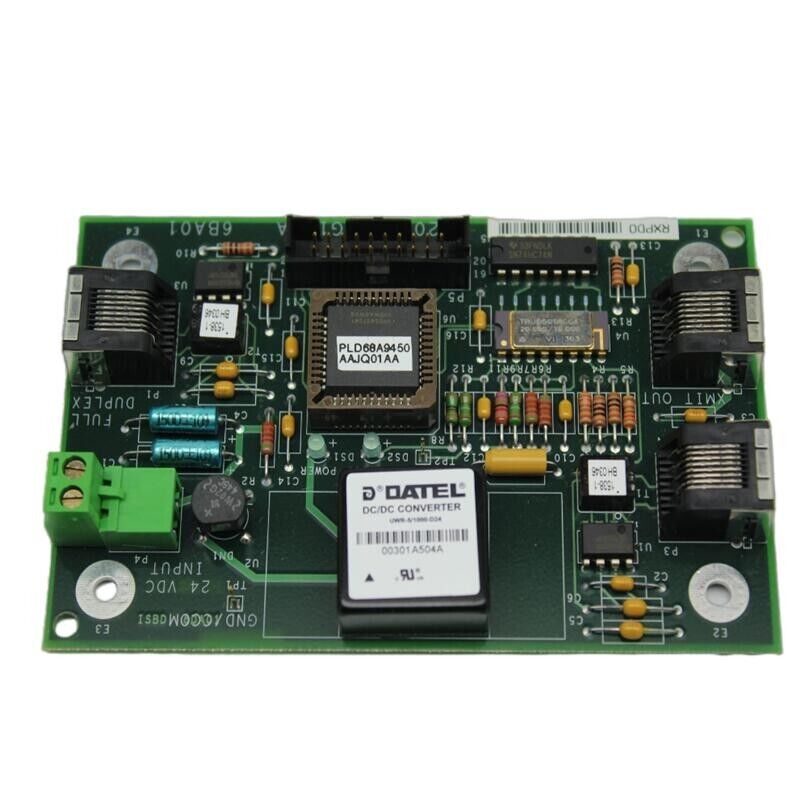

Specifically, the IS200ISBDG1A serves as an Insync Delay Board within the Mark VI system. It features terminal connections labeled E1, E2, E3, and E4, along with additional connectors including a male vertical pin ribbon connector (P5) and a two-position terminal strip (P4) designated for '24 VDC Input.' Furthermore, the board includes three connectors labeled P1/'Full Duplex,' P2/'XMIT Out,' and P3/'RCV In,' all positioned along the board edges.
Technical Specifications
Part # |
IS200ISBDG1AAA |
Category |
PLCs/Machine Control |
Subcategory |
PC Board PLC/Add-On Board |
Weight |
14oz |
Series |
Innovation Series |
Product Type |
Bus Delay Module |
Information About IS200ISBDG1A
The IS200ISBDG1A, part of the Innovation Series, is a board component designed for integration within the Mark VI system, which represents one of the final iterations of the Speedtronic gas/steam turbine management systems developed and distributed by General Electric. Originating in the 1960s with the Mark I system, Speedtronic systems have been utilized extensively in managing heavy-duty turbine operations until the 2000s. The Mark VI system, building upon the foundation laid by its predecessors, notably the triple redundant backups featured in the Mark IV and Mark V systems, incorporates advancements in technology such as Ethernet communications and a PC-based Operator interface.
Functionally, the IS200ISBDG1A serves as an Insync Delay Board within the Mark VI system. It is characterized by drilled corners, each equipped with terminal connections labeled as E1, E2, E3, and E4. Additionally, the board features five connectors, including a male vertical pin ribbon connector (P5) and a two-position terminal strip (P4) labeled '24 VDC Input,' along with three supplementary connectors labeled P1/'Full Duplex,' P2/'XMIT Out,' and P3/'RCV In.' These connectors are positioned along the edges of the board to facilitate connectivity.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
