IS200JPDMG1A | General Electric Power Distribution Board Mark VI

Description

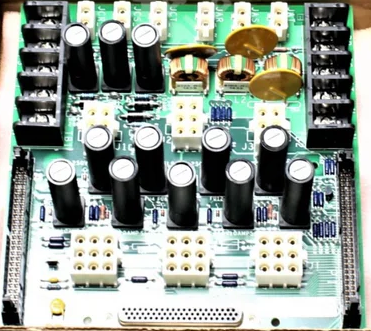

The Mark VI IS200JPDMG1A model of General Electric PCB is a power distribution board that features two 50-pin connectors, one female DC62 connector, thirteen plugs and two terminal blocks adjacent from each other on the PCB.

Technical Specifications

Information About IS200JPDMG1A

The IS200JPDMG1A is a PCB component made by General Electric for use within the Mark VI system. The Mark VI is part of the Speedtronic line of gas and steam turbine management series that has been in use for decades. The MKVI is one of the most advanced of the series and includes such features as Ethernet communications, triple redundant control configuration within the Control Module, and an HMI Operator Interface, all built around a PC running on a Windows platform.

Hardware Tips and Specifications

The IS200JPDMG1A is a Power Distribution board, as its industry nickname JPDM reveals. The board is built with two 50-pin connectors (P1/P2.) , and twelve fuses that are placed in three lines. The board has one DC62 female connector (JA1), which can be used in conjunction with a PPDA I/O pack. The IS200JPDMG1A board has two terminal blocks that are placed on opposite sides of each other on the PCB. These terminal blocks provide access to three separate power buses. Each screw located on the terminal blocks has a maximum input of 35 amps. The IS200JPDMG1A has a total of thirteen plugs, including three 9-position plugs, seven 2-position plugs, and three 6-position plugs. The board also includes:

four varistors
three inductor coils
transistors
various resistors
and numerous capacitors

The IS200JPDMG1A uses DIN-rail mounting. In terms of installation dimensions, this power distribution board is relatively small, at 6.5 inches by 7 inches.
