IS200RCSAG1A | General Electric Frame RC Snubber Board
- Regular price
- $1,525.00
- Sale price
- $1,525.00
- Regular price
-
Do you need more quantity?
Product Description P/N: IS200RCSAG1A
Description
IS200RCSAG1A is a Frame RC Snubber Board manufactured and designed by General Electric as part of the EX2100 Series used in the GE Excitation Control System. For SCR/diode modules in 1800 or 1000 Innovation SeriesTM non-regenerative sources, the IS200RCSA Frame RC Snubber Board (RCSA) provides the snubber circuitry. In each non-regenerative source, there are three RCSA boards, one for each phase, and they are installed right on the power devices.
Technical Specifications
Brand | General Electric |
Category | PLCs/Machine Control |
Part Number | IS200RCSAG1A |
Subcategory | PC Board PLC/Add-On Board |
Series | Mark VI Speedtronic |
Functional Acronym | RCSA |
Functional Description | 1800/1000 Frame RC Snubber Board |
PCB Coating | Normal Coating |
Functional Revision 1 | A |
Operating temperature | -35 to 65 ºC |
Power Supply Voltage | 25 V dc |
Board Size | 23.8 cm high x 8.6 cm |
Information About IS200RCSAG1A
The IS200RCSAG1A is a component for the Mark VI system. The Mark VI is designed around the central Control Module, which takes care of the majority of procedures and processes like protection, monitoring, and control of the system. This Control Module connects to a non-essential HMI (human machine interface) that allows users to then access system data from one location.

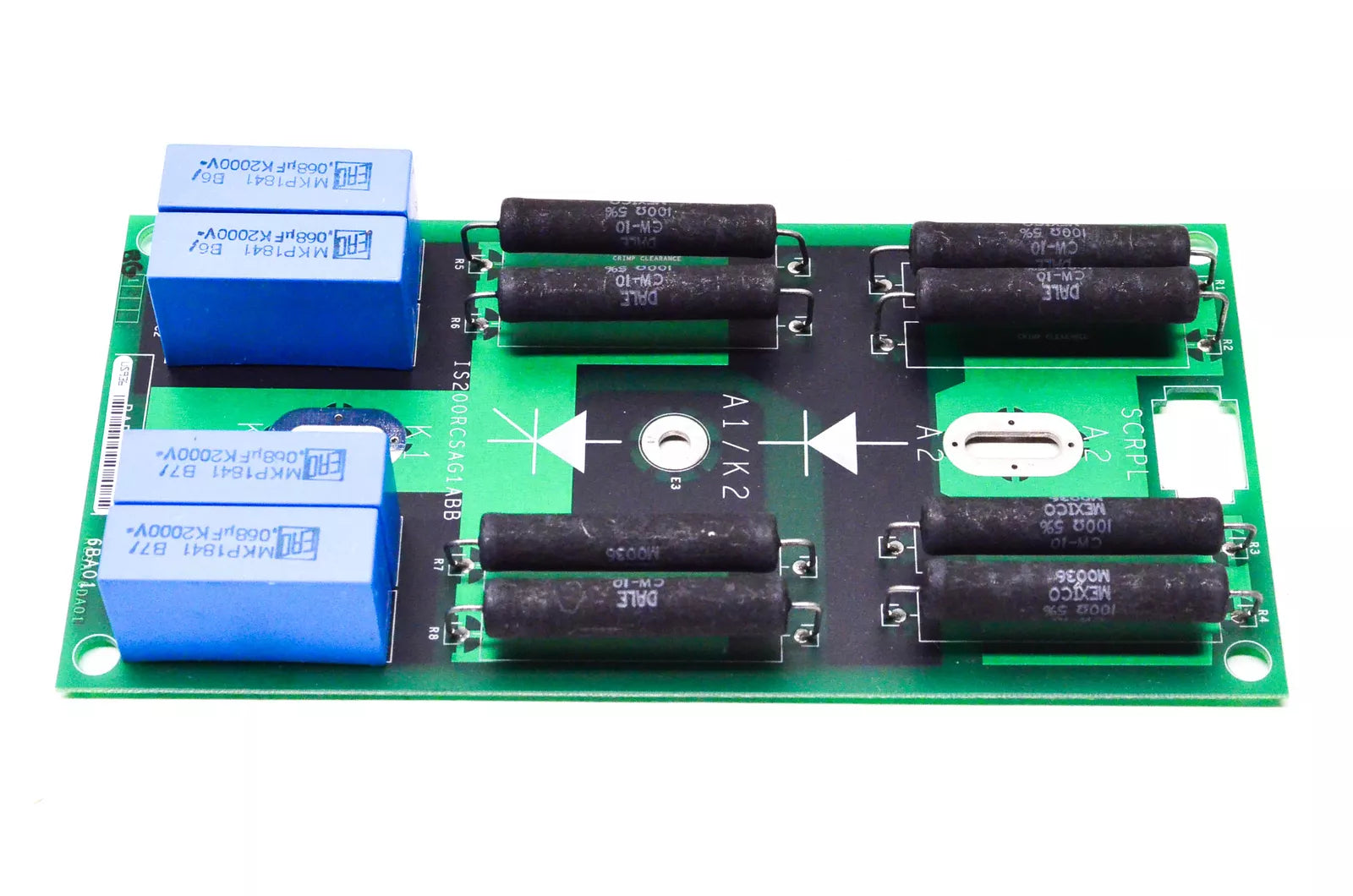

The IS200RCSAG1A is a 1800/1000 Frame RC Snubber Board. This circuit board is used in 1800/1000 Innovation Series non-regenerative sources to provide snubber circuitry for the SCR/diode module. These boards have no fuses, LEDs, TP test points, or adjustable hardware. The board is designed to mount directly to the diode module/SCR for each phase.
The IS200RCSAG1A insulates gate drive circuits from unwanted noise. During commutation, the IS200RCSAG1A board protects the diode module/SCR from voltage overshoots between devices. The IS200RCSAG1A uses a separate AC line filter, which is mounted outside the bridge cabinet.
