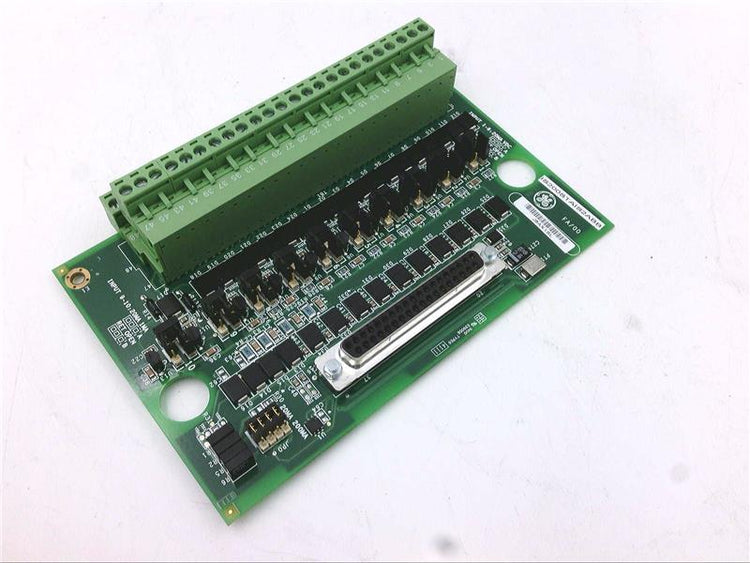

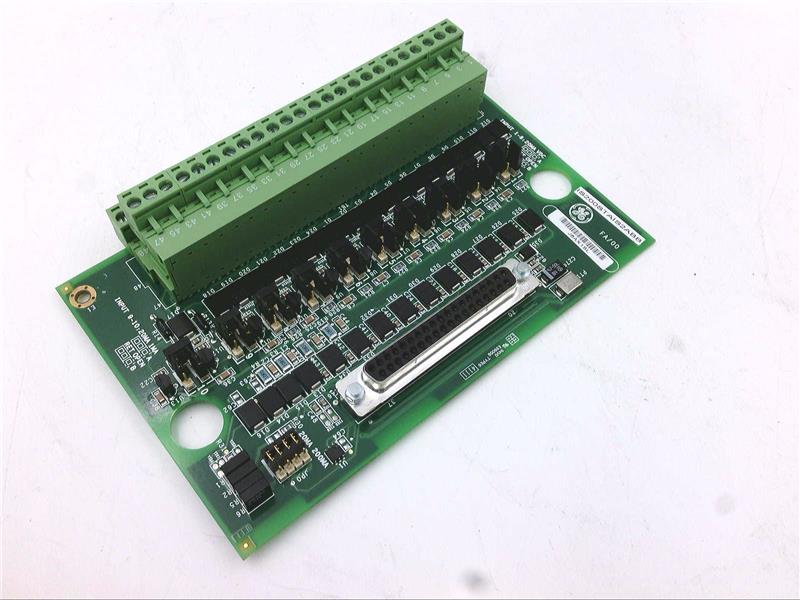

IS200STAIS2A | General Electric YAIC Analog I/O Model
IS200STAIS2A | General Electric YAIC Analog I/O Model

IS200STAIS2A | General Electric YAIC Analog I/O Model

Part #: IS200STAIS2A Manufactured by: General Electric
Regular price
$3,742.00
Sale price
$3,742.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The IS200STAIS2A is a YAIC Analog I/O module for GE systems, designed to process and manage analog input and output signal...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: IS200STAIS2A
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for General Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
IS200STAIS2A | General Electric YAIC Analog I/O Model
    IS200STAIS2A | General Electric YAIC Analog I/O Model
IS200STAIS2A | General Electric YAIC Analog I/O Model

Product Description P/N: IS200STAIS2A

Description / Specifications

Description

The IS200STAIS2A is a YAIC Analog I/O module for GE systems, specifically designed to handle the processing and management of analog input and output signals. It ensures precise data conversion and signal integrity, which enhances the performance and reliability of control systems in industrial environments, contributing to efficient and accurate operations.



Technical Specifications



Condition New / Never Used Surplus
Brand General Electric
Category PLCs/Machine Control
Part Number IS200STAIS2A
Subcategory PC Board PLC/Add-On Board
Series Mark VI IS200
Functional Acronym/Abbreviation STAI
Product Type Analog I/O Pack
Voltage 10 VDC
Size 15.9 cm high x 10.2 cm wide
Temperature -30 to +65 degrees Celsius
Technology Surface mount
Function Simplex Analog Input terminal board
Number of channels 12
Input span, transmitters 1 - 5 V dc
Maximum lead resistance 15 ohm
Outputs 24 V dc





Information About IS200STAIS2A

The General Electric IS200STAIS2A, also known as the YAIC Analog I/O Module, is an integral component within the Mark VI IS200 series, specifically designed for advanced PLC and machine control systems. This analog input/output pack is engineered to provide reliable and precise analog signal processing, making it indispensable in industrial environments where accurate data acquisition and control are crucial.

The IS200STAIS2A serves as a Simplex Analog Input terminal board, meaning it is designed for single-channel operation in a simplex configuration, which simplifies system design and reduces complexity. This design is particularly beneficial in applications where straightforward and dependable analog input is required. With its 12 channels, the module can accommodate multiple analog inputs, making it versatile for various industrial applications, such as monitoring and controlling process variables like temperature, pressure, and flow.

Operating within a voltage range of 10 VDC, the IS200STAIS2A ensures stable and consistent signal processing, which is vital for maintaining accurate control over industrial processes. The module's input span for transmitters is specified at 1 to 5 VDC, providing a wide range for analog signal input, which is standard in many industrial sensors and transmitters. This range allows the module to interface seamlessly with a variety of field devices, ensuring that it can be integrated into diverse control systems with ease.

One of the key technical aspects of the IS200STAIS2A is its ability to handle a maximum lead resistance of 15 ohms. This feature is critical in ensuring that the analog signals transmitted over long distances remain accurate and unaltered, which is particularly important in large industrial setups where sensors and control units may be located far apart. The module's design minimizes the impact of resistance on signal integrity, ensuring reliable data transmission and processing.

The IS200STAIS2A is designed for use in challenging industrial environments, with an operating temperature range of -30°C to +65°C. This wide temperature tolerance ensures that the module remains functional and reliable even in extreme conditions, making it suitable for a variety of industrial settings, including those with significant temperature fluctuations. Additionally, the module can withstand storage temperatures ranging from -40°C to +85°C, ensuring that it can be safely stored and transported without risk of damage.

In terms of size, the IS200STAIS2A is compact, measuring 15.9 cm in height and 10.2 cm in width. This small form factor allows for easy integration into control panels and enclosures, saving valuable space in industrial control systems. Despite its compact size, the module is designed to deliver robust performance, thanks to its advanced surface mount technology. This technology not only enhances the module's durability but also ensures high-density circuit design, which contributes to its overall reliability and efficiency.

The IS200STAIS2A also features a 24 VDC output, providing the necessary power for connected devices and ensuring that the module can drive signals effectively. This output capability is essential for maintaining consistent and accurate signal transmission, particularly in systems where multiple devices are interconnected.

As part of the Mark VI IS200 series, the IS200STAIS2A benefits from the advanced engineering and rigorous quality standards associated with General Electric's industrial control solutions. The Mark VI series is known for its reliability and performance in demanding industrial environments, and the IS200STAIS2A is no exception. Its robust design, combined with its precise analog signal processing capabilities, makes it a valuable asset in any control system that requires accurate and reliable data acquisition.

In conclusion, the General Electric IS200STAIS2A YAIC Analog I/O Module is a high-performance component designed for precise and reliable analog signal processing in industrial control systems. Its features, including a wide input span, low lead resistance tolerance, and robust operating temperature range, make it ideal for use in diverse and challenging industrial environments. Whether used in process control, automation, or data acquisition, the IS200STAIS2A delivers the reliability and accuracy that modern industrial applications demand.
