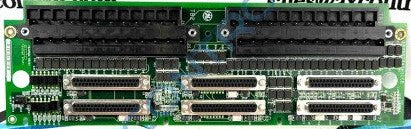

IS200TBAOH1C | General Electric Analog Output Terminal Board

Description

IS200TBAOH1C is a Discrete Input/Output Terminal Board manufactured and designed by General Electric as part of the Mark VI Series used in GE Speedtronic Control Systems. A total of 16 analog outputs with a 0–20 mA current range are supported by the Analog Output (TBAO) terminal board.

Technical Specifications

Information About IS200TBAOH1C

The General Electric IS200TBAOH1C is a sophisticated Analog Terminal Board designed to enhance the functionality and performance of PLCs and machine control systems within the Mark VI Speedtronic series. This high-quality add-on board is engineered to provide precise analog output, making it an essential component in various industrial automation applications.

As part of the Mark VI Speedtronic series, the IS200TBAOH1C leverages advanced technology and robust construction to ensure reliable performance in demanding environments. This board is categorized under PLCs and Machine Control, with a specific focus on enhancing the capabilities of existing control systems through seamless integration and efficient operation.

The IS200TBAOH1C features a conformal coating on its printed circuit board (PCB), providing enhanced protection against environmental factors such as dust, moisture, and chemical contaminants. This coating ensures the longevity and durability of the board, making it suitable for use in harsh industrial settings.

The board is functionally referred to by the acronym TBAO, standing for Terminal Board Analog Output. It is designed to handle up to 16 channels, each capable of delivering an analog output current ranging from 0 to 20 mA. This capacity makes it ideal for applications requiring multiple analog outputs, providing precise control over various processes and systems.

The IS200TBAOH1C is built using surface mount technology, which enhances its reliability and performance by ensuring secure and stable connections of components on the board. This technology also contributes to the board's compact and efficient design.

Measuring 10.16 cm in width and 33.02 cm in length, the IS200TBAOH1C is compact yet powerful, fitting easily into standard control cabinets without occupying excessive space. Its manageable size and efficient layout facilitate easy installation and integration into existing systems.

Operating within a temperature range of -30 to +65 degrees Celsius, this analog terminal board is designed to perform reliably under a wide variety of environmental conditions. This broad temperature tolerance ensures that the board can maintain its performance even in extreme temperatures, making it versatile and dependable for various industrial applications.

The IS200TBAOH1C requires a power supply of +5 V DC, which is standard in many industrial control systems, ensuring easy compatibility and integration. This power requirement supports the board's efficient operation and contributes to its overall reliability and performance.

In summary, the General Electric IS200TBAOH1C Analog Terminal Board is a high-performance, reliable component designed for the Mark VI Speedtronic series. With its 16-channel capacity, robust conformal coating, surface mount technology, and wide operating temperature range, it offers exceptional functionality and durability for industrial automation applications. Its compact size, efficient design, and ease of integration make it an invaluable addition to any PLC or machine control system, ensuring precise analog output and enhancing overall system performance.
