IS200TBCIH1BCE | General Electric Mark VI Contact Terminal Board

Description

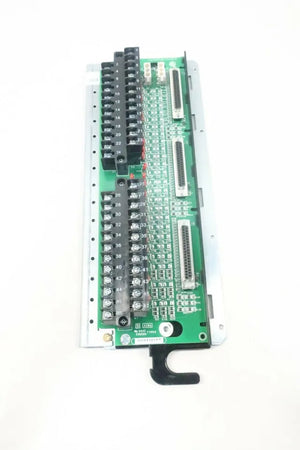

The IS200TBCIH1BCE is a contact terminal board, part of the Mark VI series by General Electric, designed as a printed circuit board (PCB). Positioned on the left side of the board are two black terminal blocks, each containing twenty-four silver metal terminals, totaling forty-eight terminals. Adjacent to these blocks, a series of solid red metal oxide varistors (MOVs) is arranged. On the opposite edge, three connector ports facilitate additional component connections. At the top center, two white connectors, each with three ports, are situated. The right side features a lengthy row of tiny resistors, color-coded with black, blue, and white bands. Throughout the board, small black capacitors are paired into fifteen sets, totaling thirty components. In the middle, a cluster of silver rectangular components, arranged in parallel rows of four, occupies the central space of the IS200TBCIH1BCE.

Technical Specifications

Information About IS200TBCIH1BCE

The IS200TBCIH1BCE Contact Input Terminal Board, produced by GE Industrial Systems and part of the Mark VI Speedtronic series, exemplifies advanced engineering tailored for industrial applications. This particular model, identified by the functional acronym TBCI, stands out due to its robust design and high reliability, essential for managing intricate industrial processes.

The IS200TBCIH1BCE serves a critical role in providing secure and efficient contact input management. Its primary function revolves around handling various contact inputs, crucial for the smooth operation of industrial control systems. This board ensures that all inputs are accurately received and processed, maintaining the integrity and reliability of the control system.

One of the key features of the IS200TBCIH1BCE is its conformal coating, which offers enhanced protection against environmental factors such as moisture, dust, and chemical contaminants. This coating ensures the durability and longevity of the PCB, making it suitable for deployment in harsh industrial environments where such conditions are prevalent.

The board has undergone multiple revisions to refine its functionality and reliability. The IS200TBCIH1BCE is marked with a Functional Revision of B and C, reflecting iterative improvements that enhance its performance. Additionally, it includes an Artwork Revision E, indicating further refinements in its design layout for optimal functionality.

This terminal board is part of the Mark VI Speedtronic series, which is renowned for its superior control capabilities in various industrial settings. The Mark VI series is designed to offer enhanced control, monitoring, and diagnostic features, ensuring that industrial systems operate with maximum efficiency and minimal downtime. The IS200TBCIH1BCE integrates seamlessly into this ecosystem, providing reliable input contact management that supports the overall system's stability and performance.

In terms of installation and compatibility, the IS200TBCIH1BCE is designed for straightforward integration into existing systems. Its robust construction and reliable performance make it a preferred choice for engineers looking to upgrade or maintain their industrial control systems. The conformal coating adds an extra layer of reliability, making it an ideal solution for environments where exposure to harsh conditions is a concern.

Moreover, the technical specifications and revisions of the IS200TBCIH1BCE reflect GE Industrial Systems' commitment to continuous improvement and innovation. Each revision brings enhancements that contribute to the board's reliability and functionality, ensuring it meets the evolving needs of industrial applications. This iterative process of refinement underscores the board's robustness and suitability for demanding industrial applications.

The IS200TBCIH1BCE Contact Input Terminal Board, with its conformal coating, multiple functional revisions, and robust design, stands as a testament to GE Industrial Systems' expertise in delivering high-quality industrial control solutions. Its integration into the Mark VI Speedtronic series ensures that it benefits from the advanced features and reliability that this series is known for, making it a vital component in any industrial control system.

In summary, the IS200TBCIH1BCE is a highly reliable, conformally coated contact input terminal board, designed to withstand harsh industrial environments and ensure precise input management. Its place within the Mark VI Speedtronic series highlights its importance in maintaining system integrity and performance, making it an indispensable part of any industrial control setup.
