IS200TBCIH1C | General Electric Contact Input Terminal Board

Description

The IS200TBCIH1C contact input terminal board, developed by General Electric (GE), serves as a component within the Mark VI series, utilized for the control and automation of both steam and gas turbine operations. Functioning as a printed circuit board (PCB), the IS200TBCIH1C accommodates numerous electronic components.

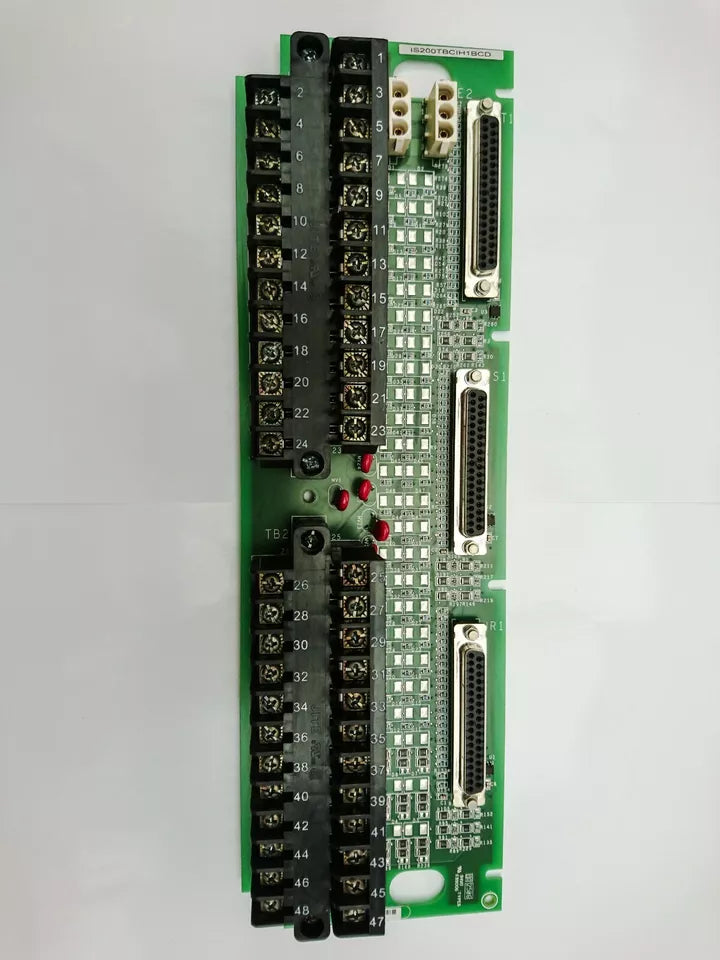

Prominent among these components are two large black terminal blocks, each housing twenty-four terminals labeled from one (1) to forty-eight (48) in white lettering. Adjacent to these terminal blocks, a series of solid red metal oxide varistors (MOVs) is arranged, providing surge protection. Positioned at the top center of the board are two solid white connectors.

Along the right edge of the IS200TBCIH1C, a line of three black and silver jack connector ports is vertically aligned. In the central region of the board, numerous small silver metal components resembling tiny rectangles are arranged in parallel rows of four (4), representing diodes. Adjacent to these diodes, a vertical line of small resistors, banded in blue, black, and white, is located between the white connectors and the black and silver connector ports.

Technical Specifications

Information About IS200TBCIH1C

The General Electric IS200TBCIH1C is a high-performance terminal board, integral to the Mark VI series, designed for reliable and efficient industrial applications. This terminal board exemplifies General Electric's dedication to delivering advanced solutions in the field of industrial automation and control systems.

The IS200TBCIH1C features 24 contact voltage input channels, providing extensive connectivity options for monitoring and control. Each channel is engineered to handle an input current of 125 V DC, ensuring compatibility with various industrial devices and sensors. This capability is essential for applications requiring precise voltage input monitoring and management, facilitating robust system control and data acquisition.

One of the key attributes of the IS200TBCIH1C is its power consumption, rated at 20.6 watts. This efficient power usage makes it suitable for installations where energy management is a priority, contributing to overall system efficiency and cost savings. The board's design emphasizes low power consumption without compromising performance, making it an ideal choice for energy-conscious industrial setups.

The terminal board operates within a wide temperature range of -30 to 65°C, ensuring reliable performance in diverse environmental conditions. This broad operating temperature range makes the IS200TBCIH1C suitable for use in harsh industrial environments, where temperature fluctuations are common. The robust construction and high-quality components used in the board ensure durability and longevity, even under extreme conditions.

Manufactured in the United States, the IS200TBCIH1C adheres to stringent quality standards, ensuring high reliability and performance. General Electric's commitment to quality and innovation is evident in every aspect of this terminal board, from its design and engineering to its manufacturing process. This dedication ensures that the IS200TBCIH1C meets the rigorous demands of industrial applications, providing dependable performance and long service life.

The IS200TBCIH1C is part of the Mark VI series, a line known for its advanced control and automation capabilities. This series is designed to enhance the operational efficiency and reliability of industrial systems, and the IS200TBCIH1C is no exception. Its integration into the Mark VI series allows for seamless compatibility and enhanced functionality within a broad range of industrial applications.

In terms of installation and maintenance, the IS200TBCIH1C is designed for ease of use. The terminal board's layout is intuitive, allowing for straightforward wiring and connection of devices. This user-friendly design reduces installation time and simplifies maintenance tasks, ensuring minimal disruption to operations.

The availability of the IS200TBCIH1C in stock ensures that it can be quickly deployed to meet urgent industrial needs. This prompt availability is crucial for maintaining operational continuity and addressing any immediate requirements for system expansion or upgrades.

For detailed information on installation, operation, and maintenance, the IS200TBCIH1C is supported by the comprehensive manual GEH-6421J. This manual provides in-depth guidance, ensuring that users can fully leverage the capabilities of the terminal board.

In summary, the General Electric IS200TBCIH1C is a high-quality terminal board designed for demanding industrial applications. With 24 contact voltage input channels, efficient power consumption, wide operating temperature range, and robust construction, it delivers reliable performance and versatility. As part of the Mark VI series and manufactured to high standards in the USA, the IS200TBCIH1C is a dependable choice for enhancing industrial automation and control systems.
