IS200TBTCH1C | General Electric Thermocouple Terminal Board
- Regular price
- $5,954.00
- Sale price
- $5,954.00
- Regular price
-
Do you need more quantity?
Product Description P/N: IS200TBTCH1C
Description

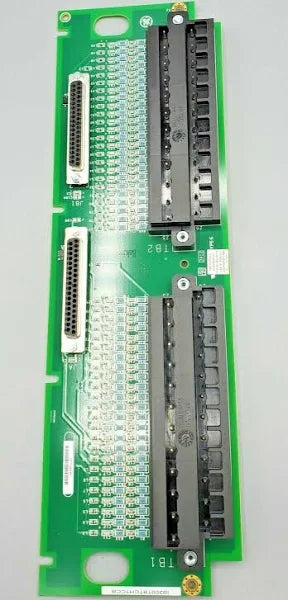

Thermocouple Input Terminal Board IS200TBTCH1C was designed to be used in the Mark VIe control systems by General Electric. This board is used in simplex apps. The TBTC board has two DC-type connectors and can accept 24-type T, S, K, J, or E thermocouple inputs.
Technical Specifications
Brand | General Electric |
Category | PLCs/Machine Control |
Part Number | IS200TBTCH1C |
Subcategory | PC Board PLC/Add-On Board |
Series | Mark VIe |
Model Type | Thermocouple Input |
Instruction Manual | GEH-6721G Mark VIe Control System Guide Volume II |
Number of DC-Type Connectors | Two |
Compatibility | PTCC I/O Pack |
Inputs for Simplex Pack | Twelve |
System Application Type | Simplex |
Information About IS200TBTCH1C
The Thermocouple Input (TBTC) Terminal Board IS200TBTCH1C is part of the Mark VIe Series produced by General Electric. This board will accept T, S, K, J, and E main twenty-four-type thermocouple inputs. If this board is used with a PTCCH2 board in simplex systems the board can accept an additional three thermocouple inputs labeled as R, B, and N. There are two TBTC models, this model being the IS200TBTCH1C indicates that it has two DC-type connectors and will only be used in simplex applications. This board will use two PTCC packs and thus allows for twenty-four inputs.
When connecting the IS200TBTCH1C board as part of the Mark VIe series the I/O packs used will correct directly into the TBTC J-type connectors, the cables needed will also depend on the redundancy level required of the board. One feature of this board is that the thermocouple inputs on this board can be ungrounded or grounded. The inputs can be up to nine hundred and eighty-four feet away from the turbine control panel. The attached I/O processor on this device will perform the analog-to-digital linearization and conversions for the individual thermocouple inputs.
The thermocouple inputs of the IS200TBTCH1C board can support a wide input range which is from negative eight volts to up to positive forty-five volts. This board has cold junctions which operate in a potential range of negative twenty-two degrees to one hundred forty-nine degrees Fahrenheit. The cold junctions or CJ signals are available for monitoring by going into the signal space.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
Description
Thermocouple Input Terminal Board IS200TBTCH1C was designed to be used in the Mark VIe control systems by General Electric. This board is used in simplex apps. The TBTC board has two DC-type connectors and can accept 24-type T, S, K, J, or E thermocouple inputs.
Technical Specifications
Brand | General Electric |
Category | PLCs/Machine Control |
Part Number | IS200TBTCH1C |
Subcategory | PC Board PLC/Add-On Board |
Series | Mark VIe |
Model Type | Thermocouple Input |
Instruction Manual | GEH-6721G Mark VIe Control System Guide Volume II |
Number of DC-Type Connectors | Two |
Compatibility | PTCC I/O Pack |
Inputs for Simplex Pack | Twelve |
System Application Type | Simplex |
Information About IS200TBTCH1C
The Thermocouple Input (TBTC) Terminal Board IS200TBTCH1C is part of the Mark VIe Series produced by General Electric. This board will accept T, S, K, J, and E main twenty-four-type thermocouple inputs. If this board is used with a PTCCH2 board in simplex systems the board can accept an additional three thermocouple inputs labeled as R, B, and N. There are two TBTC models, this model being the IS200TBTCH1C indicates that it has two DC-type connectors and will only be used in simplex applications. This board will use two PTCC packs and thus allows for twenty-four inputs.
When connecting the IS200TBTCH1C board as part of the Mark VIe series the I/O packs used will correct directly into the TBTC J-type connectors, the cables needed will also depend on the redundancy level required of the board. One feature of this board is that the thermocouple inputs on this board can be ungrounded or grounded. The inputs can be up to nine hundred and eighty-four feet away from the turbine control panel. The attached I/O processor on this device will perform the analog-to-digital linearization and conversions for the individual thermocouple inputs.
The thermocouple inputs of the IS200TBTCH1C board can support a wide input range which is from negative eight volts to up to positive forty-five volts. This board has cold junctions which operate in a potential range of negative twenty-two degrees to one hundred forty-nine degrees Fahrenheit. The cold junctions or CJ signals are available for monitoring by going into the signal space.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
