IS200TRLYH1F | General Electric Relay Output Terminal Board

Description

The IS200TRLYH1F, manufactured by GE for the Mark VI system, serves as a Relay Output terminal board with TMR contact voting. As part of GE's Speedtronic systems for gas/steam turbine management, the Mark VI is specifically engineered to facilitate the transition of turbines from zero speed to operating speed through the automatic sequencing of control signals, notably employing acceleration control for smooth turbine acceleration.

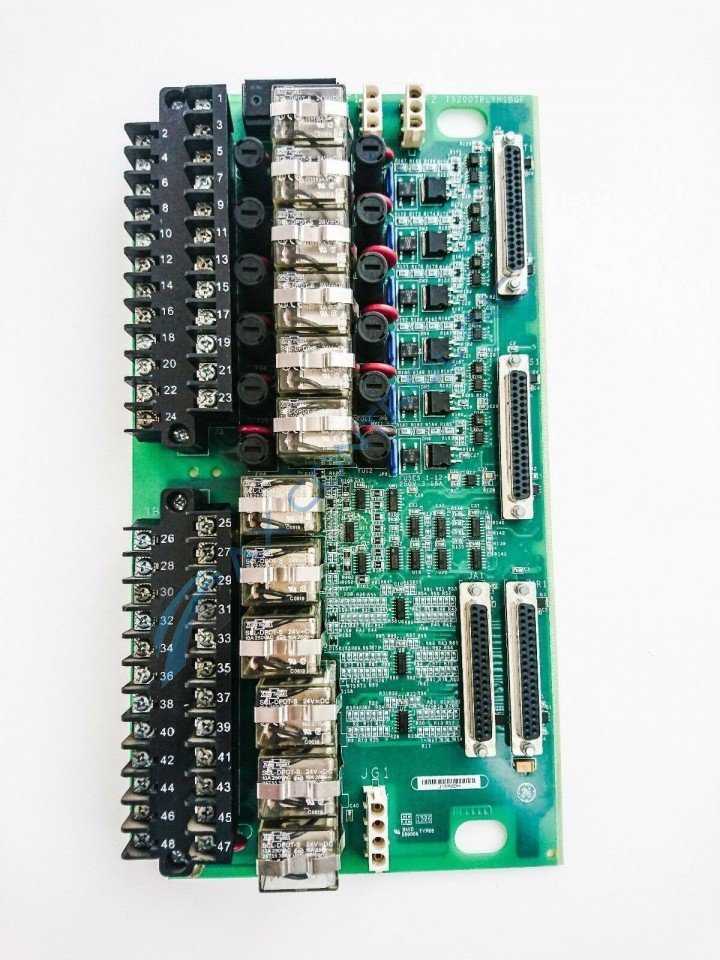

Featuring twelve sealed relays in each TMR section, totaling thirty-six relays on the board, the IS200TRLYH1F forms voted Form-A (NO) contacts by combining the contacts from R/S/T. Designed to accept 24/125 V dc or 115 V ac power, this board does not support simplex applications and lacks power distribution, although it can accommodate an optional power distribution board (IS200WPDFH1A).

Control of the IS200TRLYH1F is managed by the VGEN, VCRC, or VCCC board. Equipped with thirty-six sealed relays, two terminal boards (TB1 and TB2), three DC-37 pin connectors (JR1/JS1/JT1), and two DC-64 pin connectors (J1 and J2) for optional power distribution daughterboards, relay drivers mounted on the board drive relays at the necessary frame rate.

Technical Specifications

 Information About IS200TRLYH1F

The General Electric IS200TRLYH1F is a high-performance Relay Output Terminal Board designed to provide reliable and efficient control in industrial automation systems. As a key component of the Mark VIe series, this board is engineered to deliver robust performance, making it indispensable for managing relay output functions in complex control environments.

Featuring 12 output relay channels, the IS200TRLYH1F offers extensive connectivity options, allowing for precise control over multiple processes simultaneously. This capability is essential for applications requiring coordinated relay operations, ensuring seamless integration and synchronization within the control system.

The IS200TRLYH1F is designed with surface mount technology, which enhances its reliability and durability. This advanced technology ensures that the components are securely mounted, reducing the risk of mechanical failure and enhancing the board's overall lifespan. The board's robust construction ensures it can withstand the rigorous demands of industrial environments, providing consistent performance under challenging conditions.

Operating within a temperature range of -30 to 65°C, the IS200TRLYH1F is built to perform reliably in a variety of environmental conditions. This wide temperature tolerance ensures that the board can function effectively in both extreme cold and heat, making it suitable for deployment in diverse industrial settings. The board's ability to maintain performance across this temperature range underscores its reliability and versatility.

With dimensions of 17.8 cm in width and 33.02 cm in length, the IS200TRLYH1F is compact yet powerful, allowing for easy installation within standard control cabinets. Despite its compact size, the board is capable of handling a maximum load current of 24 V DC, providing robust power handling capabilities for demanding applications.

Weighing 2.00 lbs, the IS200TRLYH1F is lightweight, facilitating easy handling and installation. Its manageable weight, combined with its robust design, ensures that it can be installed and maintained with minimal effort, reducing downtime and enhancing operational efficiency.

Manufactured in the USA, the IS200TRLYH1F adheres to stringent quality control standards, ensuring high levels of reliability and performance. General Electric's commitment to quality is evident in the design and manufacture of this relay output terminal board, making it a dependable choice for industrial automation needs.

The IS200TRLYH1F is readily available in stock, ensuring quick delivery and reducing lead times for critical projects. This availability ensures that industrial operations can maintain continuity and efficiency, minimizing downtime and enhancing productivity.

Comprehensive support is provided through the GEH-6721 manual, which offers detailed instructions for installation, operation, and maintenance. This manual is an invaluable resource for technicians and engineers, providing the necessary guidance to maximize the board's performance and longevity.

In summary, the General Electric IS200TRLYH1F Relay Output Terminal Board is a high-quality, reliable component designed for the Mark VIe series. With its 12 output relay channels, advanced surface mount technology, wide operating temperature range, and robust construction, it offers exceptional performance for industrial automation applications. Manufactured in the USA and supported by detailed documentation, the IS200TRLYH1F is an essential component for ensuring efficient and reliable control in demanding industrial environments.
