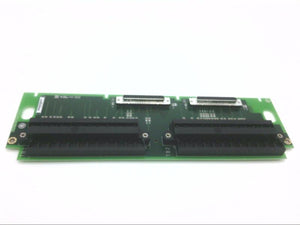

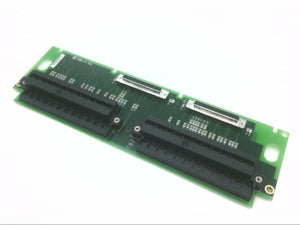

IS200TRTDH1CCC | General Electric RTD Input Terminal Board Mark VI
- Regular price
- $3,122.00
- Sale price
- $3,122.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: IS200TRTDH1CCC
Description
The General Electric IS200TRTDH1CCC RTD Input Terminal Board Mark VI is engineered for processing Resistance Temperature Detector (RTD) inputs. It ensures precise temperature monitoring and control, essential for maintaining optimal operating conditions in industrial automation systems. This board enhances system accuracy and reliability in temperature-dependent processes.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | General Electric |
| Category | PLCs/Machine Control |
| Part Number | IS200TRTDH1CCC |
| Subcategory | PC Board PLC/Add-On Board |
| Series | Mark VI |
| Number of channels | 8 |
| Span | 0.3532 to 4.054 V |
| Temperature | -30 to +65 oC |
| Technology | Surface mount |
| Product Type | Resistance Temperature Device |
Information About IS200TRTDH1CCC
The IS200TRTDH1CCC is an advanced RTD (Resistance Temperature Device) Input Terminal Board designed by General Electric for integration within the Mark VI series. This specialized PC board serves a critical role in PLC and machine control systems, providing precise temperature measurement capabilities through its interface with RTD sensors.
Engineered with surface mount technology, the IS200TRTDH1CCC is built to offer reliable performance in monitoring and managing temperature data from multiple sources. As an RTD input terminal board, it is designed to connect directly with RTD sensors, which are widely used in industrial applications for accurate temperature measurement due to their high stability and repeatability.
The board features 8 channels, enabling the connection of up to eight RTD sensors simultaneously. This multi-channel capability allows for comprehensive temperature monitoring across different points within a system, ensuring that critical components are maintained within their optimal temperature ranges. The wide span range of 0.3532 to 4.054 V ensures that the IS200TRTDH1CCC can handle a variety of RTD sensor outputs, making it a versatile solution for diverse industrial environments.
The IS200TRTDH1CCC is designed to operate effectively within a temperature range of -30°C to +65°C. This broad operational range allows the board to function reliably in various industrial settings, from cold storage facilities to high-temperature process environments. Its robust construction and surface mount technology further enhance its durability and performance, ensuring long-term reliability even under demanding conditions.
As part of the Mark VI series, the IS200TRTDH1CCC integrates seamlessly with existing control systems, allowing for straightforward installation and minimal disruption to operations. Its compatibility with the Mark VI architecture ensures that it can be easily incorporated into both new installations and upgrades, providing enhanced temperature monitoring capabilities without requiring significant changes to the overall system design.
In summary, the IS200TRTDH1CCC RTD Input Terminal Board is a high-performance, versatile component designed to meet the demanding needs of industrial temperature monitoring within the Mark VI control system. Its 8-channel capacity, broad temperature operating range, and advanced surface mount technology make it an essential tool for ensuring precise temperature control and reliable operation in a wide range of industrial applications.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
