IS200VCRCH1B | General Electric Contact Input/Relay Output Board

Description

IS200VCRCH1B is a Contact Input/Relay Output Board manufactured by General Electric as part of the Mark VI series used in gas turbine control systems. The Contact Input/Relay Output Board accepts 48 discrete inputs and manages 24 relay outputs from a total of four-terminal boards through its accompanying daughterboard.

Technical Specifications

Information About IS200VCRCH1B

The IS200VCRCH1B is a GE Mark VI board component. The MKVI is part of the Speedtronic family of gas and steam turbine management systems that have been developed and improved by General Electric since the release of the Mark I in the 1960s. The MKVI is the fifth management system in the Speedtronic line and features triple redundant controls on all protection parameters and critical controls as well as advanced control mechanisms for the protection and monitoring of the turbine system.

The IS200VCRCH1B functions as a Discrete Input/Output board. This is a single-slot board that has the same functionality as a VCCC board but does not include a daughterboard, thus takes up less rack space. However, as relay outputs for this board use the J3/J4 ports on the VME rack, cables must be placed on the front panel. If this is undesirable, use a VCCC board instead of a VCRC PCB.

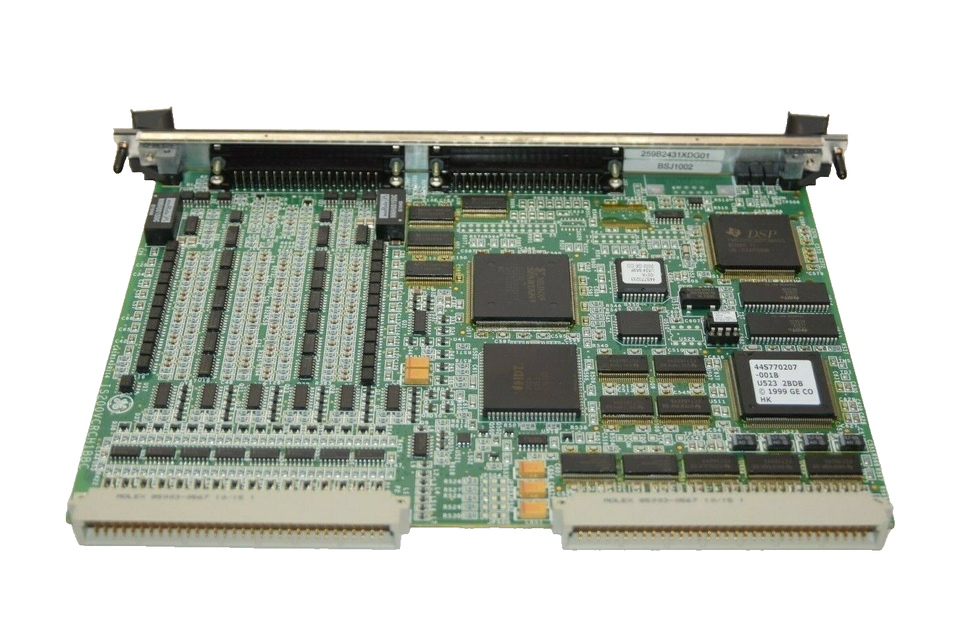

The IS200VCRCH1B has a front faceplate with two cable connectors (J33 and J44.) The faceplate also holds three LED components, which are placed near the top corner of the board. These LEDs are green, red, and orange, and are labeled run, fail, and status.

The surface of the IS200VCRCH1B is populated with two backplane connectors. Several conductive connectors are located on the board surface (P4 through P6.) The board also includes resistors, diodes, capacitors, and TP test points. The board has over thirty transistors as well as two power supplies. Integrated circuits located on the board surface include FPGAs and various SRAM and RAM chips.

Manufacturer information

General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
