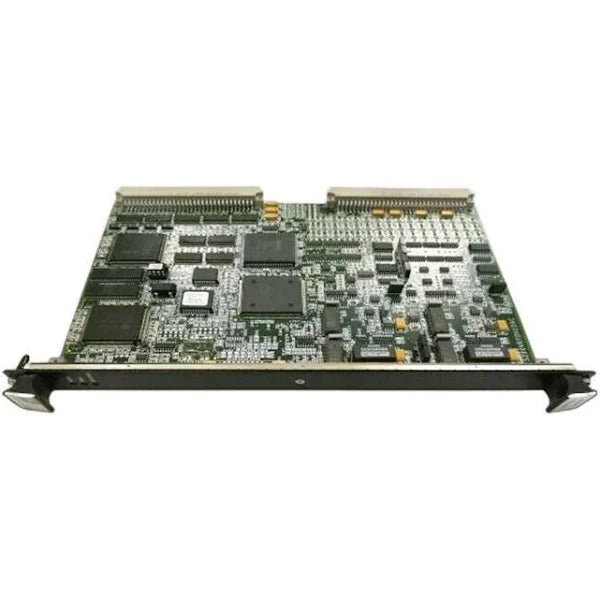

IS200VRTDH1D | General Electric RTD Input Board
- Regular price
- $6,782.00
- Sale price
- $6,782.00
- Regular price
-
Do you need more quantity?
Product Description P/N: IS200VRTDH1D
Description
This IS200VRTDH1D VME RTD Card was manufactured by General Electric, for use in the Mark VI Series of turbine control systems.
Technical Specifications
Brand | General Electric |
Category | PLCs/Machine Control |
Part Number | IS200VRTDH1D |
Subcategory | PC Board PLC/Add-On Board |
Series | Mark VI Speedtronic |
Functional Acronym | VRTD |
Functional Description | VME RTD Card |
PCB Coating | Conformal Coating |
Functional Revision 1 | D |
Function | Converts the Inputs to Digital Temperature Values |
Number of Channels | 16 channels per VRTD board |
A/D Converter Resolution | 14-bit resolution |
Power consumption | Less than 12 W |
Information About IS200VRTDH1D
The IS200VRTDH1D is a GE Mark VI board component. The Mark VI is part of the Speedtronic line of gas and steam turbine management developed and released by General Electric from the late 1960s all the way through the beginning of the 2000s. This turbine management line began with the Mark I and has progressively become more technologically advanced. The Mark VI includes a triple redundant central control module connected to a PC-based operator interface. This Operator Interface allows for the access of turbine data from a single location using software designed for turbine control.
The IS200VRTDH1D is an RTD (Resistance Temperature Device) Input. The board accepts sixteen three-wire RTD inputs, although these inputs are not wired directly to the board. Instead, the inputs wire to an RTD terminal board and connect by cables to the VME rack in which the IS200VRTDH1D is mounted.
The IS200VRTDH1D has a single-slot faceplate. There are three LED indicators mounted in the faceplate used to indicate Run/Fail/Status. The LEDs are green, red, and orange in color. The faceplate is connected to the main PCB using three screws.
The IS200VRTDH1D is component dense. The board capacitors (over 200,) and resistors (several hundred,) as well as over 200 integrated circuits. This includes field programmable gate arrays (FPGAs.) The board has inductor beads located in several lines. It is drilled in several locations, including around specific mounted chips.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
