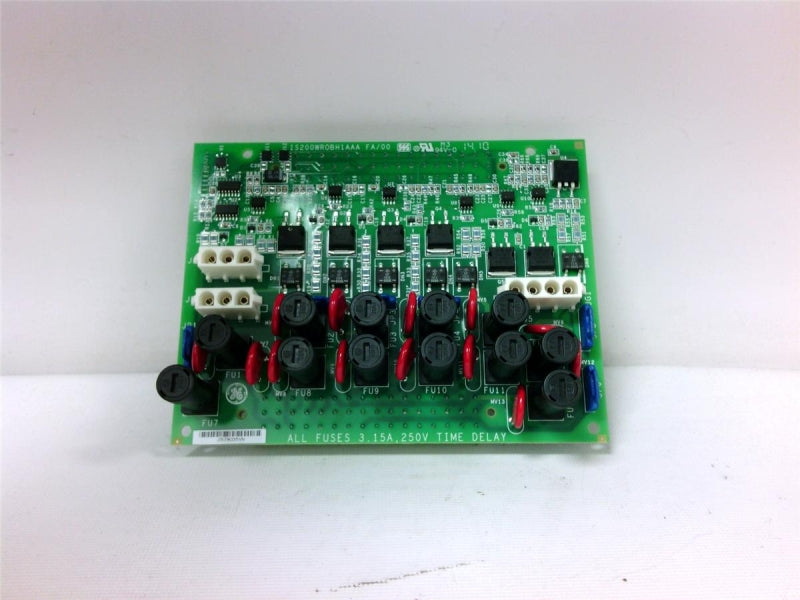

IS200WROBH1A | General Electric Relay Power Sensing Board

Description

The IS200WROBH1A is a General Electric Relay Power Sensing Board designed for precise monitoring of relay power levels in industrial control systems. It provides accurate power sensing and feedback, ensuring reliable operation and performance. The board facilitates effective management of relay-driven processes, contributing to enhanced system stability and efficiency.

Technical Specifications

Information About IS200WROBH1A

The IS200WROBH1A is a Relay Power Sensing Board from General Electric’s Mark VIe series, designed for advanced PLCs and machine control applications. This board, categorized under PC Board PLC/Add-On Board, plays a crucial role in monitoring and managing relay power within control systems, ensuring accurate power sensing and reliability.

The IS200WROBH1A operates under the functional acronym WROB, highlighting its role as a Relay Power Sensing Board. It is engineered to handle various redundancy modes, including Simplex, Redundant, and Triple Modular Redundant (TMR) configurations. The Simplex mode provides basic functionality with a single relay channel, while Redundant mode offers an additional layer of reliability by incorporating a backup relay. TMR mode enhances system robustness by employing three parallel relay modules, ensuring continuous operation even in the event of a module failure.

Equipped with a fuse value of 3.15 A, the IS200WROBH1A is designed to protect the circuit from overloads and short circuits, thereby ensuring the safe operation of the relay power sensing system. This fuse rating is suitable for managing typical power levels in control systems, providing reliable protection and minimizing the risk of damage to connected components.

The board’s compatibility with terminal boards such as TMRTDBTH2, TDBTH4, and TDBTH6 allows for versatile integration into existing control systems. This compatibility ensures that the IS200WROBH1A can be easily incorporated into a range of configurations, enhancing its utility and flexibility in various applications.

As part of the Mark VIe series, the IS200WROBH1A benefits from the series’ advanced technology and design standards, offering high performance and reliability in demanding industrial environments. Its role in relay power sensing is critical for maintaining accurate and reliable power management, which is essential for the smooth operation of complex control systems.

In summary, the IS200WROBH1A Relay Power Sensing Board from General Electric’s Mark VIe series is a key component for effective power management in control systems. Its support for multiple redundancy modes, protection through a 3.15 A fuse, and compatibility with various terminal boards make it a versatile and reliable choice for ensuring accurate power sensing and system reliability. This board’s design and functionality reflect General Electric’s commitment to delivering high-quality components for advanced industrial control applications.
