IS210DTAIH1AA | General Electric Simplex Analog Module Mark VI

Description

The IS210DTAIH1AA is a Simplex Analog Module designed for use in the Mark VI control system. It facilitates the processing of analog input signals within industrial automation environments. This module is essential for accurate signal acquisition and integration into the control system, supporting reliable operation and system performance.

Technical Specifications

Information About IS210DTAIH1AA

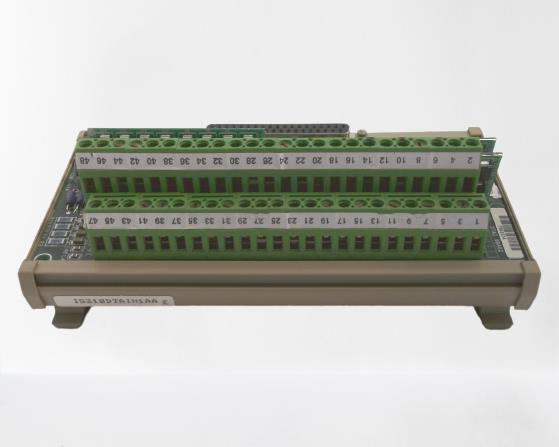

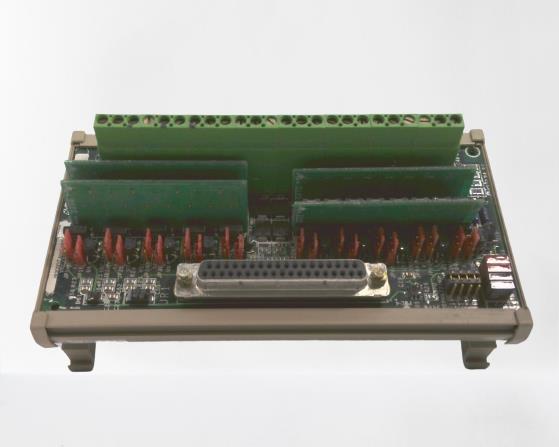

The IS210DTAIH1AA is a Simplex Analog Input/Output Terminal Board designed and manufactured by General Electric for use in the Mark VI control system series. This terminal board plays a crucial role in processing analog signals within industrial automation systems, providing a reliable interface for signal acquisition and transmission. With its ability to handle both input and output signals, the IS210DTAIH1AA is an essential component for applications that require precise monitoring and control of analog parameters.

Featuring 12 channels, the IS210DTAIH1AA is equipped to manage multiple analog signals simultaneously, ensuring comprehensive monitoring and control capabilities. The board supports a maximum load current of 125 V dc, making it suitable for handling various industrial control tasks. This versatility allows the IS210DTAIH1AA to be integrated into a wide range of industrial environments, from manufacturing plants to power generation facilities, where accurate analog signal processing is essential for maintaining operational efficiency and safety.

The IS210DTAIH1AA includes four dedicated input channels, which are designed to receive analog signals from sensors and other field devices. These inputs allow the board to capture real-time data on key parameters such as temperature, pressure, and flow, enabling the control system to make informed decisions based on current operating conditions. The high accuracy of the input channels ensures that the data captured is reliable and precise, supporting the overall effectiveness of the control system.

In addition to its input capabilities, the IS210DTAIH1AA also provides output functionality, delivering 24 V dc output signals. These outputs are used to drive actuators, indicators, and other control elements, enabling the control system to respond dynamically to changing conditions. The ability to provide both input and output functionality makes the IS210DTAIH1AA a versatile solution for various control and automation applications, where it serves as a critical interface between the control system and the physical processes being managed.

The board operates within a voltage range of 14 to 32 V dc, providing flexibility in its power supply requirements and ensuring compatibility with standard industrial power systems. This voltage range supports stable operation across a variety of applications, minimizing the need for additional power conditioning equipment. The IS210DTAIH1AA is designed to handle a maximum lead resistance of 15 Ω, ensuring accurate signal transmission even over longer distances, which is important for maintaining the integrity of the control signals in expansive industrial setups.

The IS210DTAIH1AA is designed for easy installation and integration into existing control systems, featuring DIN-rail mounting for secure and straightforward installation. This mounting method provides flexibility in arranging components within control cabinets, allowing for efficient use of space and simplifying system expansion and maintenance. The surface mount technology used in the construction of the IS210DTAIH1AA ensures high reliability and durability, making the board well-suited for the demanding conditions of industrial environments.

With an operating temperature range of 0 to 60°C, the IS210DTAIH1AA is capable of functioning effectively in a variety of environmental conditions. This temperature tolerance ensures that the board can operate reliably in both controlled indoor settings and more challenging industrial environments. The robust design of the IS210DTAIH1AA allows it to withstand the thermal variations commonly encountered in industrial applications, contributing to the longevity and dependability of the control system.

Measuring 8.6 cm wide by 16.2 cm, the IS210DTAIH1AA is compact and space-efficient, making it suitable for use in control panels where space is at a premium. Despite its compact size, the board offers extensive functionality, supporting multiple analog inputs and outputs while maintaining a small footprint. This combination of compact design and high functionality makes the IS210DTAIH1AA an ideal choice for a wide range of control applications, where efficient use of space and comprehensive signal management are critical.

In summary, the IS210DTAIH1AA Simplex Analog Input/Output Terminal Board is a versatile and reliable component for the Mark VI control system series, providing essential analog signal processing capabilities. With its ability to handle multiple input and output channels, support a wide voltage range, and operate reliably in diverse environmental conditions, the IS210DTAIH1AA plays a key role in ensuring the accuracy and efficiency of industrial automation systems. Its robust design, easy installation, and reliable performance make it a valuable asset for any application requiring precise analog signal management.
