IS210DTTCH1AA | General Electric Rail Fuel Control Mark VI

Description

Technical Specifications

Information About IS210DTTCH1AA

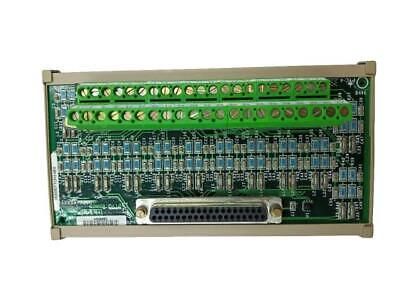

The IS210DTTCH1AA is a Simplex Thermocouple Input Terminal Board manufactured by General Electric, designed for use in the Mark VI control system series. This terminal board is engineered to provide reliable and precise temperature measurement capabilities, supporting the accurate monitoring and control of thermocouple inputs in various industrial applications. As part of the Mark VI series, the IS210DTTCH1AA integrates seamlessly into the system, ensuring efficient communication and operation alongside other components.

The IS210DTTCH1AA features 12 input channels, allowing it to interface with multiple thermocouple sensors simultaneously. This multi-channel capability is essential for applications requiring extensive temperature monitoring across different points, providing a consolidated solution for gathering temperature data. By supporting 12 thermocouple inputs, the IS210DTTCH1AA helps optimize space and reduce the need for additional hardware, simplifying system design and minimizing installation costs.

Designed to handle a maximum load current of 125 V dc, the IS210DTTCH1AA is suitable for a range of industrial environments where robust current handling is necessary. The board’s outputs are rated at 24 V dc, providing standardized voltage for integration with other system components and ensuring consistent power delivery to connected devices. The voltage range of 14 to 32 V dc allows for flexibility in power supply options, accommodating various installation scenarios and enhancing compatibility with different power configurations.

The IS210DTTCH1AA is equipped with a maximum lead resistance capacity of 15 Ω, which is critical for maintaining accurate temperature measurements over long cable runs. This capability ensures that the board can operate effectively even in setups where sensors are located at significant distances from the control system, maintaining signal integrity and reliability. The ability to handle higher lead resistance makes this terminal board versatile and adaptable to diverse application requirements.

Mounting of the IS210DTTCH1AA is facilitated through a DIN-rail mounting system, which is standard in industrial control environments. This mounting method ensures secure and stable installation within control cabinets, providing easy access for maintenance and minimizing the risk of vibration-related issues. DIN-rail mounting also supports modularity, allowing for straightforward expansion and reconfiguration of the control system as needed.

The IS210DTTCH1AA employs surface mount technology, enhancing the durability and reliability of the board. Surface mount components are less susceptible to physical stress and vibration, which is crucial in maintaining long-term operational stability in industrial environments. This technology also contributes to the compact size of the board, enabling efficient use of space within control panels.

Operating within a temperature range of -30 to 65°C, the IS210DTTCH1AA is designed to withstand a wide range of environmental conditions, making it suitable for various industrial settings. This operating temperature range ensures that the board can perform reliably in both low and high-temperature environments, providing consistent performance regardless of external conditions. The broad operating temperature range underscores the board’s versatility and suitability for deployment in challenging industrial environments.

Measuring 15.9 cm in height and 17.8 cm in width, the IS210DTTCH1AA has a compact footprint, allowing it to fit comfortably within standard control enclosures. This size ensures that it can be easily integrated into existing control systems without requiring significant modifications to the layout or design of control panels. The compact design also facilitates efficient use of space, supporting the installation of additional components as required.

In summary, the IS210DTTCH1AA Simplex Thermocouple Input Terminal Board by General Electric is a reliable and versatile solution for temperature monitoring in industrial applications. With its 12 input channels, robust current handling capabilities, and support for a wide voltage range, this terminal board offers comprehensive support for thermocouple input processing. Its DIN-rail mounting, surface mount technology, and ability to operate across a broad temperature range make it a durable and adaptable component suitable for integration into the Mark VI control system. The IS210DTTCH1AA enhances the ability of industrial systems to maintain precise temperature control and monitoring, ensuring optimal operation and efficiency across various applications.
