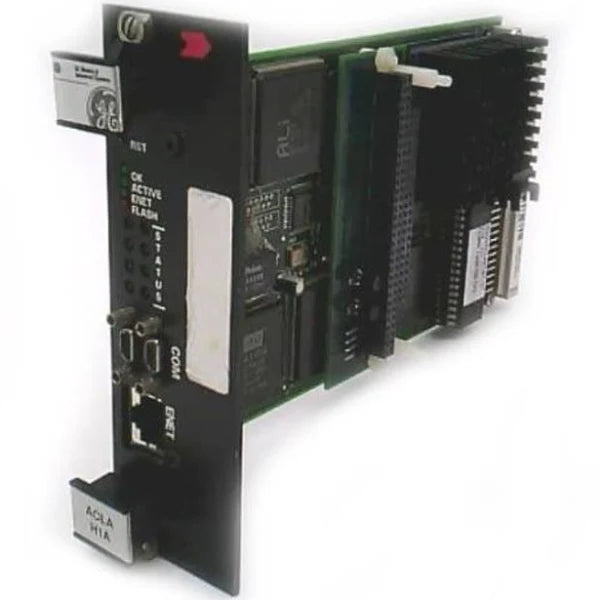

IS215ACLAH1A | General Electric Application Control Layer Module

Description

The IS215ACLAH1A, an Application Control Layer Module, is the sole ACLA module within the EX2100 Excitation Control series. Tailored as a control board model, it serves as an Exciter communications module within the EX2100 control rack and Innovation Series Drive.

Technical Specifications

 Information About IS215ACLAH1A

The IS215ACLAH1A is a high-performance Application Layer Module (ACL Controller) designed for the Mark VI series by General Electric. This module is engineered to provide robust and reliable control for complex industrial applications, leveraging advanced processing capabilities and versatile communication interfaces.

At the core of the IS215ACLAH1A is a 486 100 MHz processor, which ensures efficient and rapid data processing, essential for managing demanding control tasks in real-time. The module operates on a pre-emptive multi-tasking operating system built on the QNX platform, known for its stability and reliability in industrial environments. This operating system supports concurrent execution of multiple tasks, enhancing the overall efficiency and responsiveness of the controller.

The IS215ACLAH1A features dual baud rate capabilities, supporting both 9600 and 19200 baud rates. This flexibility allows it to interface effectively with a variety of communication protocols and devices, ensuring seamless data transfer and integration within the control system.

The Ethernet interface of the IS215ACLAH1A is 10BaseT, providing reliable and high-speed network connectivity. This interface is crucial for real-time communication and data exchange with other networked devices and systems. The presence of an ENET LED indicator provides visual confirmation that Ethernet packets are being transmitted, aiding in troubleshooting and ensuring network activity is easily monitored.

One of the notable aspects of the IS215ACLAH1A is its micro-miniature 9-pin socket D connector, which facilitates secure and compact connections. This design is particularly advantageous in environments where space is at a premium and reliable connections are paramount.

The module is designed to operate in a wide range of environmental conditions, with a storage temperature range from -40 to 85 degrees Celsius. This broad temperature tolerance ensures that the IS215ACLAH1A can withstand extreme conditions without compromising performance, making it suitable for various industrial applications.

The IS215ACLAH1A requires a minimum cooling of 100 linear feet per minute to maintain optimal operating conditions. Proper cooling is essential to ensure the longevity and reliability of the module, particularly in high-demand operational scenarios.

The IS215ACLAH1A does not include an ISBus interface, focusing its functionality on other critical communication and control tasks. This design choice streamlines its operation and reduces complexity, allowing for more straightforward integration and maintenance.

In summary, the General Electric IS215ACLAH1A Application Layer Module is a versatile and reliable ACL Controller designed for the Mark VI series. Its advanced processing capabilities, robust communication interfaces, and wide operational temperature range make it an ideal choice for demanding industrial control applications. With features like dual baud rates, 10BaseT Ethernet connectivity, and a resilient operating system, the IS215ACLAH1A stands out as a high-quality solution for complex automation and control needs.
