IS215VCMIH2B | General Electric VME Bus Master Controller
- Regular price
- $16,545.00
- Sale price
- $16,545.00
- Regular price
-
Do you need more quantity?
Product Description P/N: IS215VCMIH2B
Description
Technical Specifications
Manufacturer |
GE Industrial Systems |
Series |
Mark VI Speedtronic |
Functional Acronym |
VCMI |
Part Number |
IS215VCMIH2B |
Functional Description |
VME Bus Master Controller Board |
PCB Coating |
Conformal Coating |
Functional Revision |
1 |
Information About IS215VCMIH2B
The IS215VCMIH2B represents a board component tailored for integration within the Mark VI system, manufactured by General Electric. The Mark VI system stands as one of the concluding releases of steam and gas management systems under the "Speedtronic" lineage by GE. This system emphasizes robust design principles and redundancy to enhance the efficiency of associated turbines.
Functionally, the IS215VCMIH2B operates as a VME Bus Master Controller board, primarily facilitating communication between the controller and the I/O boards within the system. Additionally, it oversees the management of IDs for boards within the rack and associated terminal boards. Notably, there exist two major versions of the VCMI board, denoted as VCMIH1 and VCMIH2.

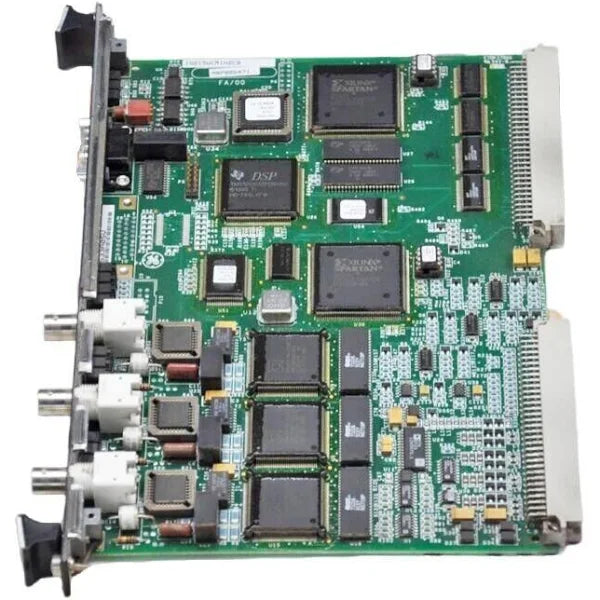

Physically, the IS215VCMIH2B features four port connections on its front faceplate, comprising one serial port and three IONet connectors. Each IONet connector incorporates three LED indicators, namely "TX," "RX," and "CD." Additionally, the board is equipped with LED indicators for Run/Fail/Status positioned above a push button reset switch, alongside four LEDs labeled 1, 2, 4, and 8. The faceplate is affixed to the main board using screws.
The IS215VCMIH2B adopts a 6U high VME board form factor with a width of .0787 inches. It integrates a Texas Instruments 32-bit digital signal processor and 32-bit transfer configuration SRAM, specifically 256k x 32. The board comprises two backplanes, a single 12-pin vertical male connector (p5), and several connectors crafted from conductive dots. Integrated circuits, resistors, capacitors, and diodes constitute essential components of the board's design. Furthermore, the board incorporates three transformers positioned near the front edge, along with numerous transformers and over forty inductor beads.
