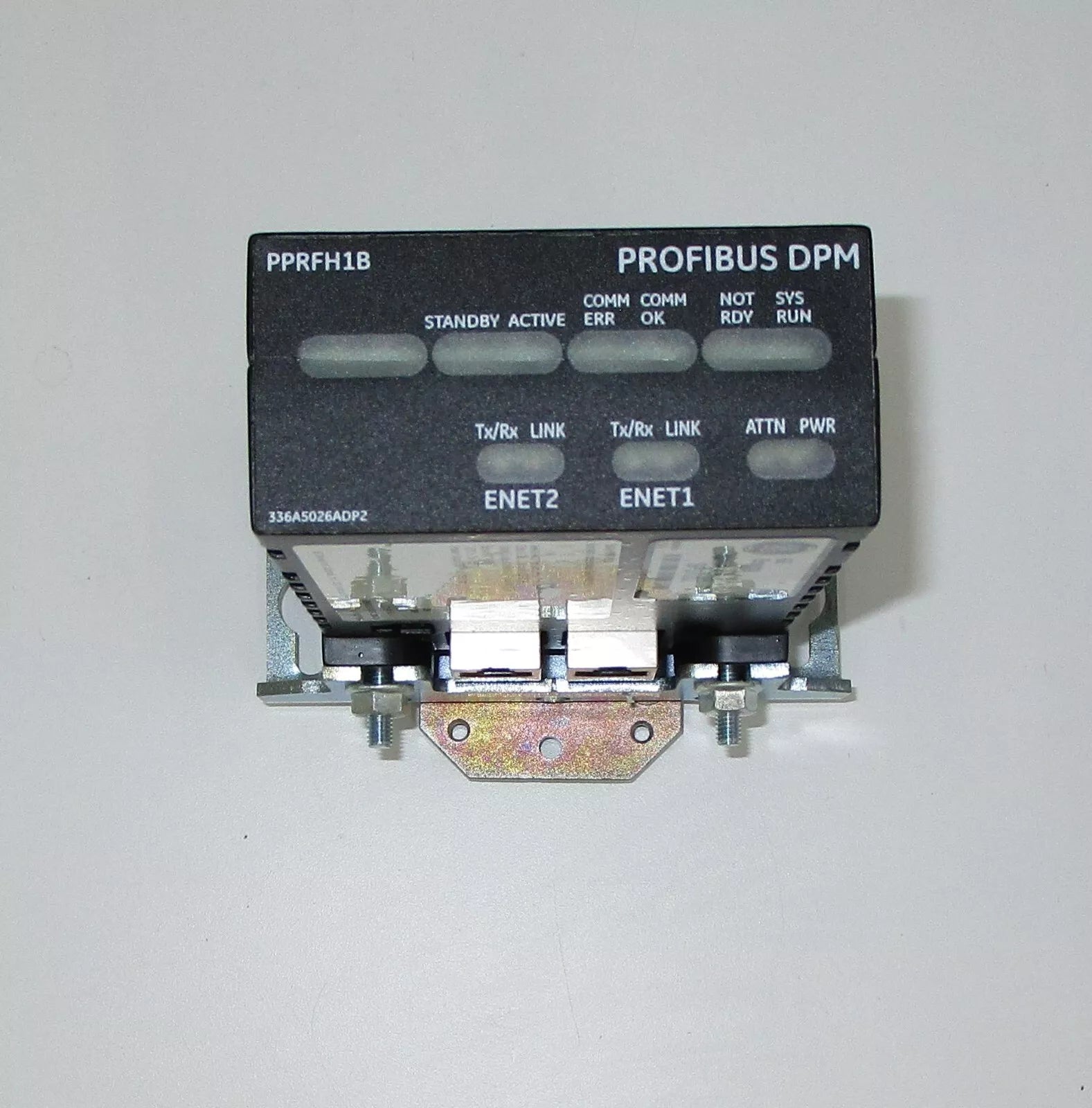

IS220PPRFH1B | General Electric PROFIBUS Master Gateway I/O Module
- Regular price
- $8,529.00
- Sale price
- $8,529.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: IS220PPRFH1B
Description
IS220PPRFH1B PROFIBUS Master Gateway I/O Module usually paired with accessory ID terminal board IS200SPIDG1A.
Technical Specifications
| Brand | General Electric |
| Category | HMI / MMI / OIT |
| Part Number | IS220PPRFH1B |
| Subcategory | Operator Interface |
| Ambient Temperature Rating | -20 to +55°C (-4 to +131°F) |
| ATEX Zone 2, Group IIC Certification | UL DEMKO 12 ATEX 1114875X |
| Input Current | Max .18 Adc |
| Input voltage | Nominal 28Vdc |
| Non-Hazardous Certification | UL E207685 |
Information About IS220PPRFH1B
Gas Turbine Control Model IS220PPRFH1B from General Electric Speedtronic Fanuc Mark VIe series of PROFIBUS DPM Master Gateway Input/Output Modules. This unit is usually paired with accessory ID terminal board IS200SPIDG1A. This allows the PPRF unit to be attached and mounted into an ordinary or non-hazardous location.
This unit's power supply is rated for a range of 27.4 - 28.6 V dc.
Features
A PROFIBUS RS-485 interface is provided by the COM-C module through a DE-9 D-sub receptacle connector. It functions as a PROFIBUS DP master, supporting up to 125 slaves with 244 bytes of inputs and outputs each with transmission rates ranging from 9.6 KBaud to 12 MBaud.
The following redundancy options are supported by the PPRF:
A single I/O Ethernet connection for a single I/O pack (no redundancy)
A single I/O pack with two Ethernet connections for the I/Os
Hot-backup Ethernet connections with two ports
Other IO packs share the twin I/O Ethernet connection design. However, two PPRFs are used in the hot-backup system, one of which is active and connecting with slave devices via PROFIBUS and the other of which is passive and in standby mode, ready to take over in the case of an active master failure.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
