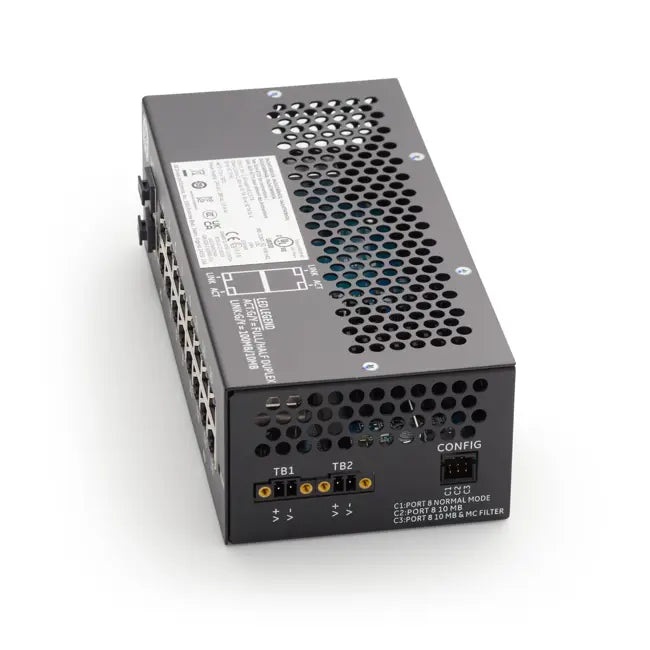

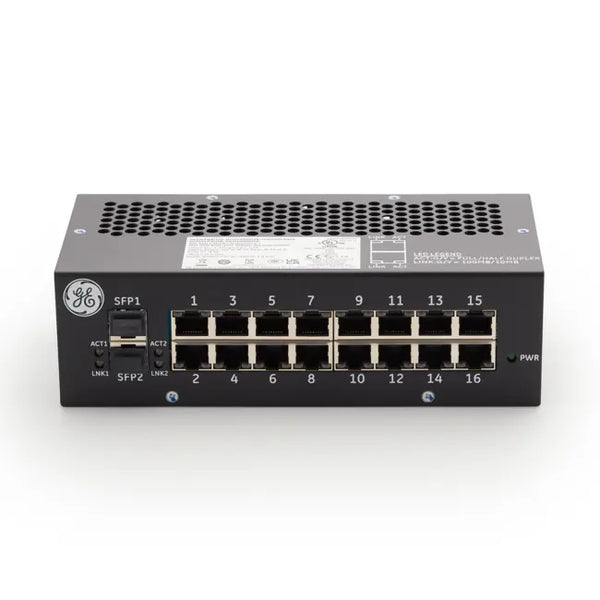

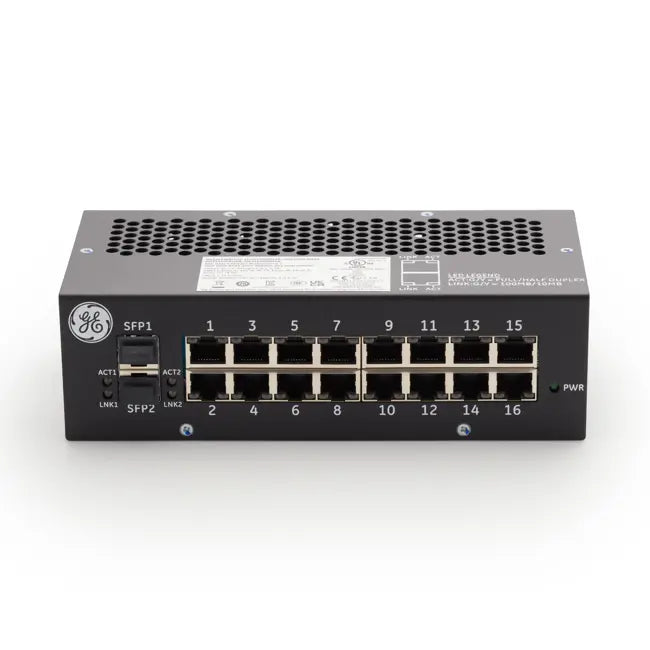

IS420ESWBH3A | General Electric Industrial ESWB Ethernet Switch

Description

The IS420ESWBH3A is a Mark VIeS IONet Switch manufactured by General Electric. It operates on 24/28 VDC and features 16 copper ports, with no fiber ports. For mounting, a clip is required if it is to be DIN-rail mounted, while panel mounting only necessitates the use of screws.

Technical Specifications

Information About IS420ESWBH3A

The General Electric IS420ESWBH3A is a robust and versatile selector switch designed for use in industrial control systems, offering reliable performance in demanding environments. Part of GE's range of pilot devices, this selector switch is engineered to provide precise control and selection functions within complex automation and control setups. The IS420ESWBH3A is built to withstand harsh operational conditions, making it an essential component in various industrial applications where durability, reliability, and precision are critical.

This selector switch operates within a broad temperature range of -40 to 70°C, ensuring reliable functionality even in extreme environmental conditions. This wide operating temperature range makes the IS420ESWBH3A suitable for both outdoor installations and harsh indoor environments where temperature variations are common. The ability to perform under such conditions underscores the switch’s robustness and its suitability for a wide array of industrial applications, including those in sectors like manufacturing, energy, and transportation.

The IS420ESWBH3A is designed for easy installation, featuring a versatile mounting method that allows for either DIN-Rail or potential panel mounting. This flexibility in mounting options ensures that the switch can be integrated into a variety of control panels and systems with minimal effort. The dimensions of the switch—18.8 cm in height, 8.6 cm in width, and 5.6 cm in depth—are optimized to fit within standard control cabinets and enclosures, making it a convenient choice for system designers and installers.

Operating on an input voltage of 24/28 VDC, the IS420ESWBH3A is compatible with standard industrial power supplies, ensuring seamless integration into existing electrical systems. The use of Cat 5e UTP cables with RJ45 connectors for copper cable connections further enhances the switch's compatibility with modern industrial networks. These cables are widely used in industrial settings for their reliability and ability to support high-speed data transmission, ensuring that the selector switch can efficiently communicate within the control system.

The IS420ESWBH3A does not include any fiber ports, focusing instead on robust copper cable connectivity. This design choice simplifies the switch’s deployment in environments where fiber optics are not necessary, reducing installation complexity and cost. The reliance on copper cable connections also ensures that the switch remains compatible with a wide range of industrial communication networks that utilize RJ45 connectors, providing a reliable and straightforward solution for networked control systems.

Cooling for the IS420ESWBH3A is handled via convection, a passive method that eliminates the need for additional cooling fans or components. This convection cooling design reduces the overall maintenance requirements of the switch, as there are no moving parts that could wear out or require regular servicing. The convection cooling method also contributes to the switch’s reliability, as it is less susceptible to dust and debris buildup compared to active cooling systems, making it ideal for industrial environments where contaminants may be present.

The functional abbreviation "ESWB" identifies this selector switch within GE's product lineup, signifying its role within the broader ecosystem of control devices. The IS420ESWBH3A is engineered to deliver consistent, reliable performance, helping to maintain the integrity and efficiency of industrial control systems. Its design and construction reflect GE’s commitment to producing high-quality, durable components that meet the stringent demands of industrial applications.

In summary, the General Electric IS420ESWBH3A selector switch is a highly reliable and versatile device designed for challenging industrial environments. With its broad operating temperature range, flexible mounting options, and robust copper cable connectivity, it provides a dependable solution for control systems that require precise selection functionality. The switch's convection cooling design further enhances its reliability and reduces maintenance needs, making it a practical choice for long-term use in industrial settings. Whether used in manufacturing, energy production, or other industrial applications, the IS420ESWBH3A delivers the performance and durability required to keep critical systems running smoothly.
