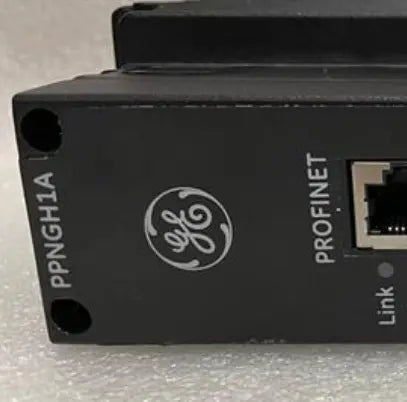

IS420PPNGH1A | General Electric Controller Gateway Module
- Regular price
- $3,372.00
- Sale price
- $3,372.00
- Regular price
-
Do you need more quantity?
Product Description P/N: IS420PPNGH1A
Description
The IS420PPNGH1A, identified as a PROFINET Controller Gateway Module, is specifically engineered to integrate within Mark VIe systems, representing one of the final iterations of General Electric's Speedtronic turbine control systems. Primarily employed in gas, hydro, and steam turbine systems, the IS420PPNGH1A functions as a robust gateway facilitating high-speed communication between Mark VIe controllers and PROFINET I/O devices.
Physically, the IS420PPNGH1A is a single-module component designed for air-cooled operation, devoid of installed batteries or fans. Installation requires vertical panel mounting in locations ensuring unobstructed airflow. Notably, simultaneous support for IONet and PROFINET is precluded by hardware limitations, necessitating independent switches for each network. Typically, PPNG boards interface with ESWA 8-port or ESWB 16-port unmanaged switches, with cabling extending from three to eighteen feet.
Technical Specifications
Model Number |
IS420PPNGH1A |
Weight |
2.4 lbs. |
Series |
Mark VIe/Mark VIeS |
Product Type |
PROFINET Gateway Module |
Processor Type |
1066 MHz EP80579 Intel |
Operating Temperature |
22 to 149°F |
Manufacturer |
General Electric |
Manual |
GEH-6725 |
Functional Abbreviation |
PPNG |
Information About IS420PPNGH1A
The IS420PPNGH1A, designated as a PROFINET Controller Gateway Module, is specifically engineered to integrate within Mark VIe systems, representing one of the final iterations of General Electric's Speedtronic turbine control systems. Primarily employed in gas, hydro, and steam turbine systems, the IS420PPNGH1A functions as a robust gateway facilitating high-speed communication between Mark VIe controllers and PROFINET I/O devices.
Physically, the IS420PPNGH1A is a single-module component designed for air-cooled operation, devoid of installed batteries or fans. Installation requires vertical panel mounting in locations ensuring unobstructed airflow. Notably, simultaneous support for IONet and PROFINET is precluded by hardware limitations, necessitating independent switches for each network. Typically, PPNG boards interface with ESWA 8-port or ESWB 16-port unmanaged switches, with cabling extending from three to eighteen feet.
Internally, the IS420PPNGH1A is powered by a 1066 MHz Intel processor (EP80579) running on a QNX Neutrino operating system, complemented by 256 DDR2 SDRAM. Compatibility mandates the utilization of ControlST V05.04 or higher software versions. Weighing 2.4 pounds, the module supports a maximum PROFINET data rate of 6 KB per millisecond.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
