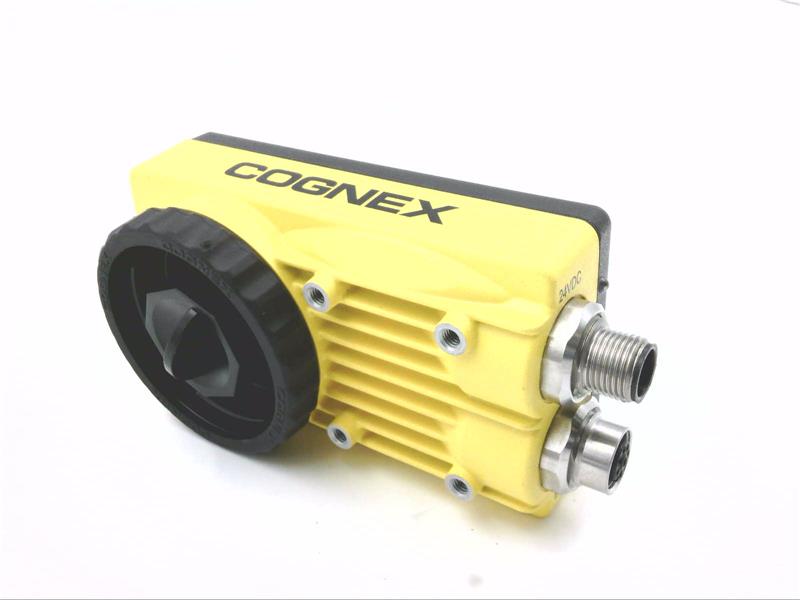

IS5100-01 | Cognex Digital Vision Camera

Description

The IS5100-01 is a Digital Vision Camera designed for industrial applications. It captures high-resolution images for vision-based inspection and monitoring tasks. The camera integrates with various machine vision systems and is suitable for automated quality control and process monitoring. It supports digital output, ensuring compatibility with modern control systems.

Technical Specifications

Information About IS5100-01

The IS5100-01 is a digital vision camera designed for integration into industrial vision systems, providing reliable imaging capabilities for various inspection, monitoring, and quality control applications. Classified under the Camera & Vision category, this vision camera falls within the Vision System Assembly subcategory, highlighting its role as a key component in advanced machine vision setups. Weighing 0.81 lbs, the IS5100-01 is engineered for use in demanding industrial environments where high-quality imaging and robust performance are essential.

This vision camera is part of the In-Sight series, known for its precision and reliability in capturing detailed visual data. The IS5100-01 offers a resolution of 640x480 pixels, delivering VGA-quality images suitable for a wide range of vision-based tasks. The camera’s ability to capture high-resolution images ensures that it can effectively identify defects, measure components, and monitor processes, making it an invaluable tool in automated inspection systems. The VGA resolution allows for the detection of fine details, which is critical in applications requiring high accuracy and precision.

Equipped with 128MB of memory, the IS5100-01 is capable of handling substantial amounts of image data, enabling it to perform complex image processing tasks efficiently. The onboard memory supports the storage and processing of images, allowing for real-time analysis and decision-making within the vision system. This capability is essential in high-speed production environments, where immediate feedback and adjustments are necessary to maintain product quality and process efficiency.

The IS5100-01 features an 8-pin M12 connector, facilitating easy and secure integration with other components within the vision system. The M12 connector ensures reliable data and power connections, providing robust and stable communication links essential for uninterrupted operation. The use of a standard connector type also simplifies installation and maintenance, allowing for quick and easy connection to various devices and control systems. This compatibility makes the IS5100-01 versatile and adaptable to different industrial setups.

One of the distinguishing features of the IS5100-01 is its exclusion of PatMax, a pattern-matching tool commonly used in vision systems. The absence of PatMax indicates that this camera is intended for applications where basic imaging capabilities are sufficient, and advanced pattern recognition is not required. This makes the IS5100-01 an ideal choice for tasks such as simple presence/absence detection, basic measurement, and straightforward inspection processes. By focusing on fundamental vision tasks, the IS5100-01 provides a cost-effective solution for applications that do not require advanced feature recognition.

The digital nature of the IS5100-01 allows for seamless integration into modern control systems, supporting various communication protocols used in industrial automation. The digital interface ensures that image data can be transmitted accurately and efficiently, enabling the vision system to process and analyze visual information without delays. This integration capability is crucial for ensuring that the vision system can operate in harmony with other automation components, such as PLCs, robots, and HMIs, facilitating a cohesive and efficient production environment.

The IS5100-01 is built to withstand the challenges of industrial environments, including exposure to dust, moisture, and temperature variations. Its robust construction ensures long-term durability and reliable performance, even in harsh conditions. The camera’s design prioritizes reliability and stability, minimizing the risk of downtime due to equipment failure. This durability makes the IS5100-01 a suitable choice for continuous operation in industries such as automotive, electronics, pharmaceuticals, and food and beverage, where consistent and accurate inspection is critical.

Installation and setup of the IS5100-01 are straightforward, thanks to its compact design and standardized connectivity options. The camera can be easily mounted in various orientations, providing flexibility in positioning to achieve the optimal field of view for the application. The use of an 8-pin M12 connector streamlines the connection process, reducing installation time and simplifying the integration with existing vision systems and control networks.

In addition to its imaging capabilities, the IS5100-01 includes features that enhance its usability and performance. The camera is designed to be user-friendly, with intuitive configuration and setup options. Operators can quickly adjust settings to optimize image capture for specific applications, ensuring that the camera meets the precise requirements of the task at hand. This ease of use contributes to faster deployment and reduced training requirements, allowing operators to focus on productivity and quality assurance.

The IS5100-01 is supported by a range of accessories and options that further enhance its functionality. These include mounting brackets, lens options, and protective enclosures, which allow the camera to be customized for specific applications and environments. The availability of these accessories ensures that the IS5100-01 can be tailored to meet the unique needs of different industries and processes.

In summary, the IS5100-01 Digital Vision Camera is a reliable and versatile component for industrial vision systems, offering high-resolution VGA imaging, robust construction, and easy integration. Its design and features make it suitable for various inspection and monitoring applications, providing accurate and consistent visual data essential for quality control and process optimization. With its focus on fundamental imaging tasks, the IS5100-01 provides an effective solution for industries seeking to enhance their automation capabilities without the need for advanced pattern recognition.

Manufacturer information

Cognex Corporation is a global leader in machine vision and industrial barcode reading. Founded in 1981, Cognex specializes in providing vision systems, software, and sensors for automation, quality inspection, and logistics. Their solutions are widely used in manufacturing, logistics, and various industries to enhance efficiency and quality control.
