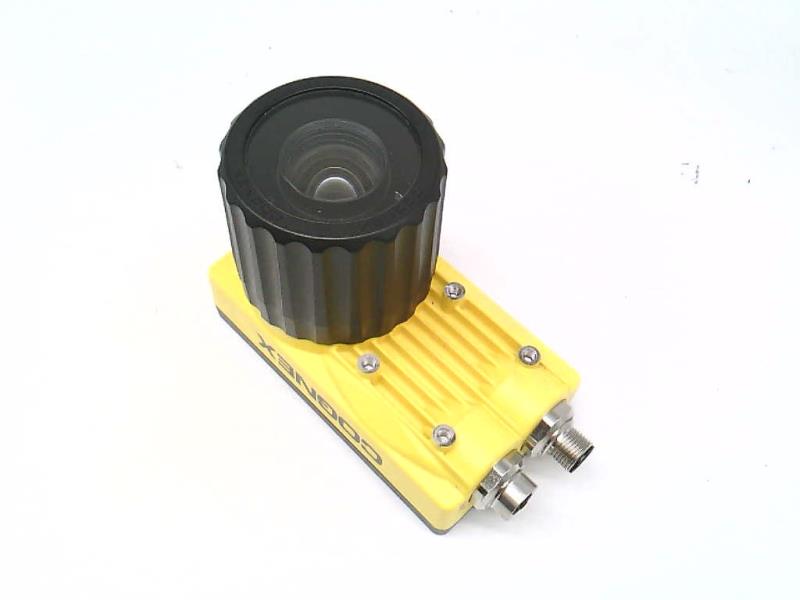

IS5403-01 | Cognex Digital Industrial Vision Camera

Description

The IS5403-01 is a Digital Industrial Vision Camera designed for use in machine vision applications. It captures high-resolution images for inspection and monitoring tasks. The camera integrates with industrial automation systems, providing reliable image processing capabilities for quality control and process optimization.

Technical Specifications

Information About IS5403-01

The IS5403-01 is a high-performance Digital Industrial Vision Camera manufactured by Cognex, part of the In-Sight 5000 series, designed to meet the demands of advanced machine vision applications. This camera provides reliable image capture and processing capabilities, making it an essential component in industrial automation for quality control, inspection, and process optimization tasks. With a compact and robust design, the IS5403-01 offers a versatile solution for various environments, combining high-resolution imaging with efficient data processing to support critical manufacturing operations.

The IS5403-01 features a resolution of 1600 x 1200 pixels, ensuring detailed and accurate image capture. This high resolution enables the camera to detect minute defects and variations in inspected objects, making it ideal for applications requiring precise visual analysis. The camera operates at 14 full frames per second, providing real-time imaging capabilities that are essential for high-speed production lines where rapid inspection is necessary to maintain efficiency and product quality. This combination of high resolution and fast frame rate ensures that the IS5403-01 can handle the demanding requirements of modern industrial processes.

Equipped with a 1/1.8-inch CCD sensor, the IS5403-01 delivers high-quality images with excellent sensitivity and dynamic range. The CCD sensor technology ensures low noise levels and accurate color representation, which are critical for applications where image clarity and fidelity are paramount. The sensor's design allows for effective light capture, enabling the camera to perform well even in challenging lighting conditions. This capability makes the IS5403-01 suitable for use in various industrial settings, from well-lit production floors to low-light environments.

The IS5403-01 is designed with a substantial image processing memory of 256 MB SDRAM, providing the necessary capacity to handle complex image processing tasks efficiently. This memory allows the camera to perform advanced image analysis, such as pattern recognition, edge detection, and object measurement, directly on the device, reducing the need for external processing resources. The camera also includes 128 MB of non-volatile flash memory for job and program storage, ensuring that inspection routines and configurations are retained even after power cycling. This non-volatile memory supports the storage of multiple inspection jobs, allowing for quick and easy switching between different tasks as production requirements change.

Operating at a voltage requirement of 24 VDC, the IS5403-01 is compatible with standard industrial power supplies, simplifying integration into existing automation systems. The camera's power-efficient design ensures reliable operation while minimizing energy consumption, making it a cost-effective solution for continuous operation in industrial environments. The camera is also equipped with an LED indicator, providing visual feedback on operational status, which assists with troubleshooting and maintenance activities.

The IS5403-01 utilizes a C-Mount type for lens attachment, offering flexibility in choosing lenses to meet specific application requirements. The C-Mount interface allows users to select from a wide range of compatible lenses, enabling customization of the field of view, focus, and magnification to suit various inspection tasks. This adaptability ensures that the camera can be tailored to meet the precise needs of different applications, enhancing its versatility across a range of industries.

With a weight of only 0.75 lbs, the IS5403-01 is lightweight and easy to install, making it suitable for use in robotic and fixed mount applications where space and weight constraints are considerations. Its compact form factor allows for integration into confined spaces, providing flexibility in system design and deployment. The camera is built to withstand the rigors of industrial environments, with an operating temperature range of 0 to +45 degrees Celsius, ensuring reliable performance under standard factory conditions.

The IS5403-01 is categorized under Camera & Vision, specifically as part of the Vision System Assembly subcategory. Its design and features align with the requirements of industrial vision systems, providing the capability to perform detailed inspections and monitor manufacturing processes effectively. By integrating the IS5403-01 into their automation systems, manufacturers can enhance quality control, reduce defects, and improve overall production efficiency.

Cognex’s commitment to quality and innovation is evident in the design of the IS5403-01. As part of the In-Sight 5000 series, this camera leverages advanced imaging technology and processing capabilities to deliver reliable and accurate results. It is supported by comprehensive technical documentation, including installation guides, user manuals, and software support, ensuring that users have access to all the necessary resources for successful implementation and operation.

In summary, the IS5403-01 Digital Industrial Vision Camera is a powerful tool for enhancing automation and quality control in industrial settings. Its high-resolution imaging, robust processing capabilities, and flexible lens options make it an ideal solution for a wide range of vision applications. The camera’s compact design, combined with its advanced features, provides a versatile and efficient solution for achieving precise and reliable inspection results, supporting the continuous improvement of industrial processes.

Manufacturer information

Cognex Corporation is a global leader in machine vision and industrial barcode reading. Founded in 1981, Cognex specializes in providing vision systems, software, and sensors for automation, quality inspection, and logistics. Their solutions are widely used in manufacturing, logistics, and various industries to enhance efficiency and quality control.
