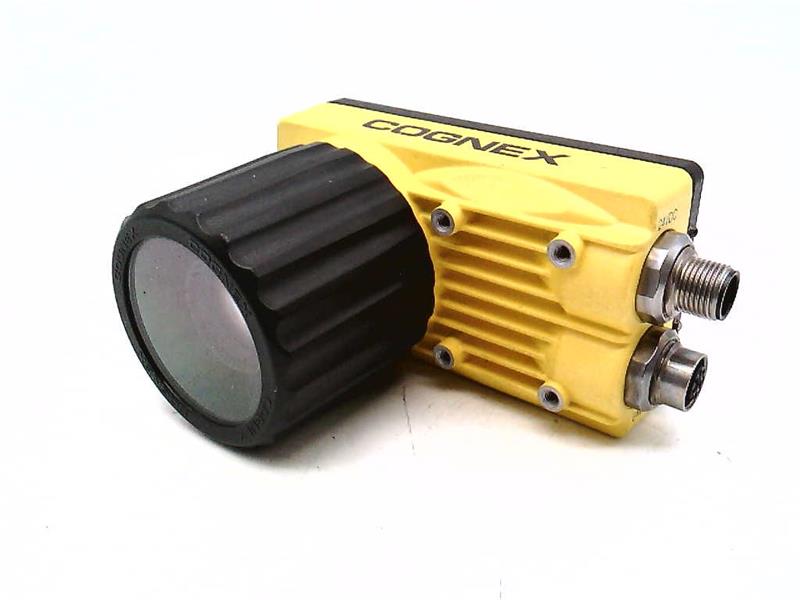

IS5403-11 | Cognex Vision System

Description

The IS5403-11 is a Cognex Vision System designed for industrial automation. It is used for image-based inspection, identification, and measurement tasks within automated processes.

Technical Specifications

Information About IS5403-11

The IS5403-11 is a high-performance Camera Head designed for industrial applications within the Camera & Vision category. Part of the 5403 Series, this camera head is engineered to deliver precise image capture and processing, making it an essential component in automated inspection, measurement, and identification systems. Its advanced features and robust design cater to the demanding requirements of modern industrial environments, where accuracy, reliability, and efficiency are critical.

Weighing just 0.68 lbs, the IS5403-11 is a compact yet powerful imaging solution. Its lightweight design facilitates easy integration into existing systems, allowing it to be mounted in various positions without adding significant load to the equipment. Despite its small size, the camera head packs a range of advanced imaging technologies that enable it to perform complex tasks with high precision.

At the core of the IS5403-11 is a 1/1.8-inch CCD image sensor, which provides exceptional image quality and sensitivity. This sensor is designed to capture detailed images with high accuracy, making it ideal for applications where even the smallest details need to be inspected or measured. The CCD sensor's 4.4 x 4.4 µm pixel size allows for excellent light sensitivity, ensuring that the camera can perform reliably even in challenging lighting conditions. This capability is crucial in industrial environments where consistent lighting cannot always be guaranteed.

The camera head offers a resolution of 1600 x 1200 pixels, which translates to high-definition image capture suitable for detailed inspections and measurements. This resolution ensures that every aspect of the target object is captured with clarity, enabling the identification of defects, the verification of assembly processes, and the measurement of components with high accuracy. The high resolution also supports a wide range of applications, from quality control to automated identification, making the IS5403-11 a versatile tool in any industrial setting.

The IS5403-11 features 64MB of image processing capacity, which allows it to handle complex image analysis tasks efficiently. This processing capability ensures that the camera can not only capture images but also process them in real-time, providing immediate feedback for automated systems. This feature is particularly important in high-speed manufacturing environments where rapid decision-making is required to maintain production efficiency and quality standards.

One of the key advantages of the IS5403-11 is its flexible exposure time, which ranges from 27 µs to 1000 ms. This wide range of exposure times allows the camera to adapt to different lighting conditions and capture images with the appropriate brightness and contrast. The ability to fine-tune the exposure time ensures that the camera can capture clear images regardless of the environmental conditions, making it suitable for use in a variety of industrial applications.

The IS5403-11 operates on a 24 VDC power supply, which is standard in industrial settings, ensuring easy integration with existing power systems. The camera head's power consumption is rated at a maximum of 500 mA, making it an energy-efficient choice for long-term operation. The low power consumption also reduces the heat generated by the device, which contributes to its reliability and longevity, even in continuous use scenarios.

The camera head's robust construction is designed to withstand the harsh conditions often found in industrial environments. Its durable housing protects the internal components from dust, moisture, and mechanical stress, ensuring consistent performance over time. This durability is essential for maintaining reliable operation in environments where the camera may be exposed to vibrations, temperature fluctuations, or other physical challenges.

The IS5403-11 is engineered for seamless integration into industrial automation systems. Its standard interface and compatibility with various vision software platforms allow it to be easily incorporated into existing workflows. This compatibility ensures that the camera head can be used in conjunction with other sensors, controllers, and automation equipment, providing a comprehensive solution for advanced industrial vision applications.

In summary, the IS5403-11 Camera Head is a high-resolution, high-performance imaging solution designed for industrial vision systems. Its combination of a 1/1.8-inch CCD sensor, 1600 x 1200 resolution, 64MB image processing capacity, and flexible exposure times make it an ideal choice for detailed inspection, measurement, and identification tasks. The camera's robust construction, low power consumption, and easy integration further enhance its suitability for a wide range of industrial applications. Whether used in manufacturing, quality control, or automated identification, the IS5403-11 delivers the precision and reliability needed to meet the demanding requirements of modern industrial environments.

Manufacturer information

Cognex Corporation is a global leader in machine vision and industrial barcode reading. Founded in 1981, Cognex specializes in providing vision systems, software, and sensors for automation, quality inspection, and logistics. Their solutions are widely used in manufacturing, logistics, and various industries to enhance efficiency and quality control.
