IS7020-01 | Cognex In-Sight 7000

Description

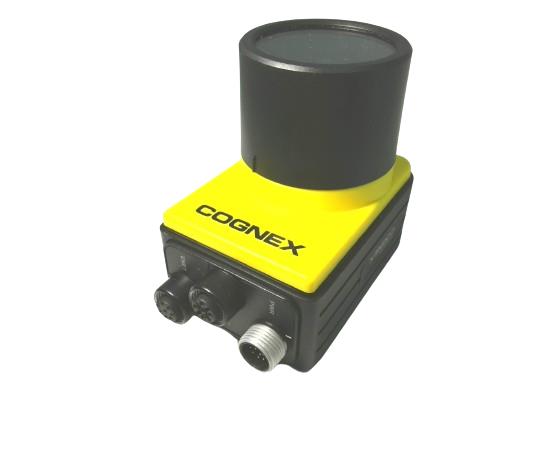

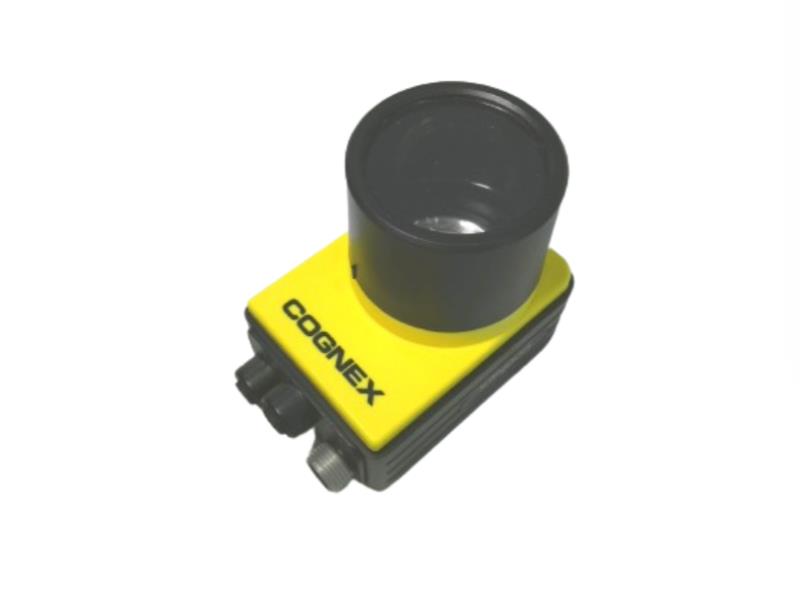

The Cognex IS7020-01 is a vision system from the In-Sight 7000 series, designed for industrial automation and inspection applications. It provides high-speed image acquisition and processing capabilities, enabling precise measurement, identification, and control. The system is built for integration into automated production environments, offering reliable performance in tasks requiring accurate vision-based analysis. Suitable for use in a wide range of industrial settings.

Technical Specifications

Information About IS7020-01

The Cognex IS7020-01 is a high-performance digital camera accessory designed for use in industrial automation and vision applications. As part of the Camera & Vision category, this model is engineered to provide reliable and precise image capture for inspection, measurement, and identification tasks in various automated production environments. With advanced features that support high-speed image acquisition, the IS7020-01 is suitable for industries requiring accurate vision-based control, including manufacturing, electronics, and quality assurance processes.

This camera accessory offers a resolution of 800 x 600 pixels, ensuring detailed and clear image quality that is essential for applications where precision is critical. Whether used for barcode reading, defect detection, or object recognition, the high resolution allows the system to capture fine details, enabling more accurate analysis and decision-making in real-time industrial processes. The 800 x 600 resolution strikes a balance between image clarity and data processing efficiency, making it suitable for a wide range of vision tasks.

The IS7020-01 operates at a frame rate of 102 frames per second (FPS), providing fast image acquisition and real-time processing capabilities. The high frame rate is ideal for applications that require quick response times, such as high-speed assembly lines, robotics, or rapid quality inspections. This speed allows the camera to capture multiple frames per second without sacrificing image quality, ensuring that even fast-moving objects or components can be accurately analyzed and tracked. In environments where production speed is a key factor, the 102 FPS frame rate ensures that the vision system can keep pace with the demands of the process.

The camera is equipped with a C-Mount lens, providing flexibility in selecting the appropriate lens for specific applications. The C-Mount standard is widely used in industrial and scientific imaging applications, allowing for compatibility with a variety of lenses to suit different field-of-view requirements. Whether the application demands a wide-angle lens for capturing larger areas or a telephoto lens for focusing on small details, the C-Mount system provides the versatility needed to optimize the camera’s performance for the specific task at hand.

In terms of memory, the IS7020-01 comes with 256 MB of SDRAM, which is dedicated to image processing and data storage. This memory capacity ensures that the camera can handle the demands of processing high-speed, high-resolution images efficiently. The 256 MB SDRAM allows for smooth operation in data-intensive environments, enabling the camera to process multiple images simultaneously and maintain high performance even under continuous use. The memory configuration is designed to support complex vision algorithms and rapid data transfer, ensuring that the camera delivers accurate and timely results.

The IS7020-01 operates on a 24 VDC power supply, which is a standard requirement in industrial environments. The 24 VDC power input ensures that the camera can be integrated into existing industrial power systems with ease, providing a stable and consistent power source for reliable operation. The power efficiency of the camera also helps to reduce overall system energy consumption, making it a cost-effective choice for long-term deployment in automated processes. The 24 VDC requirement allows the camera to function in harsh industrial environments where stability and reliability are critical for maintaining continuous operations.

Designed for robustness, the IS7020-01 is built to withstand the rigors of industrial environments, where exposure to dust, vibration, and temperature fluctuations can impact sensitive equipment. The camera’s construction ensures long-term durability and reliable performance even in challenging conditions, reducing the need for frequent maintenance or replacements. Its rugged design makes it suitable for integration into production lines, machinery, or inspection stations where high uptime and minimal interruptions are necessary.

In summary, the Cognex IS7020-01 digital camera accessory is a versatile and high-performance solution for industrial vision applications. With its 800 x 600 pixel resolution, 102 FPS frame rate, and C-Mount lens system, it delivers the precision and speed required for demanding vision-based tasks. The 256 MB SDRAM provides the memory capacity needed for efficient image processing, while the 24 VDC power requirement ensures easy integration into industrial environments. Built for durability and reliability, the IS7020-01 is an ideal choice for applications requiring fast, accurate, and continuous image capture and analysis, making it a valuable asset in automated inspection, measurement, and identification systems.

Manufacturer information

Cognex Corporation is a global leader in machine vision and industrial barcode reading. Founded in 1981, Cognex specializes in providing vision systems, software, and sensors for automation, quality inspection, and logistics. Their solutions are widely used in manufacturing, logistics, and various industries to enhance efficiency and quality control.
